Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Mini Split Heat Pump System - 9K+9K+9K+12K+12K+15K

Description

This comprehensive bundle features essential components for creating an efficient multi-zone HVAC system. The Mitsubishi Electric MXZ-SM60NL outdoor heat pump unit serves as the backbone, providing powerful heating and cooling capabilities for up to eight indoor units. Complementing this are three wall-mounted air handlers (MSZ-GX09NL, MSZ-GX12NL, and MSZ-GX15NL) that offer flexible installation options and advanced features like built-in Wi-Fi and Econo Cool mode for energy savings. The PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate optimal refrigerant distribution, while the MSDD-50AR2-E branch pipe kit ensures seamless connections. Together, these components deliver a robust and versatile climate control solution for both residential and commercial applications.

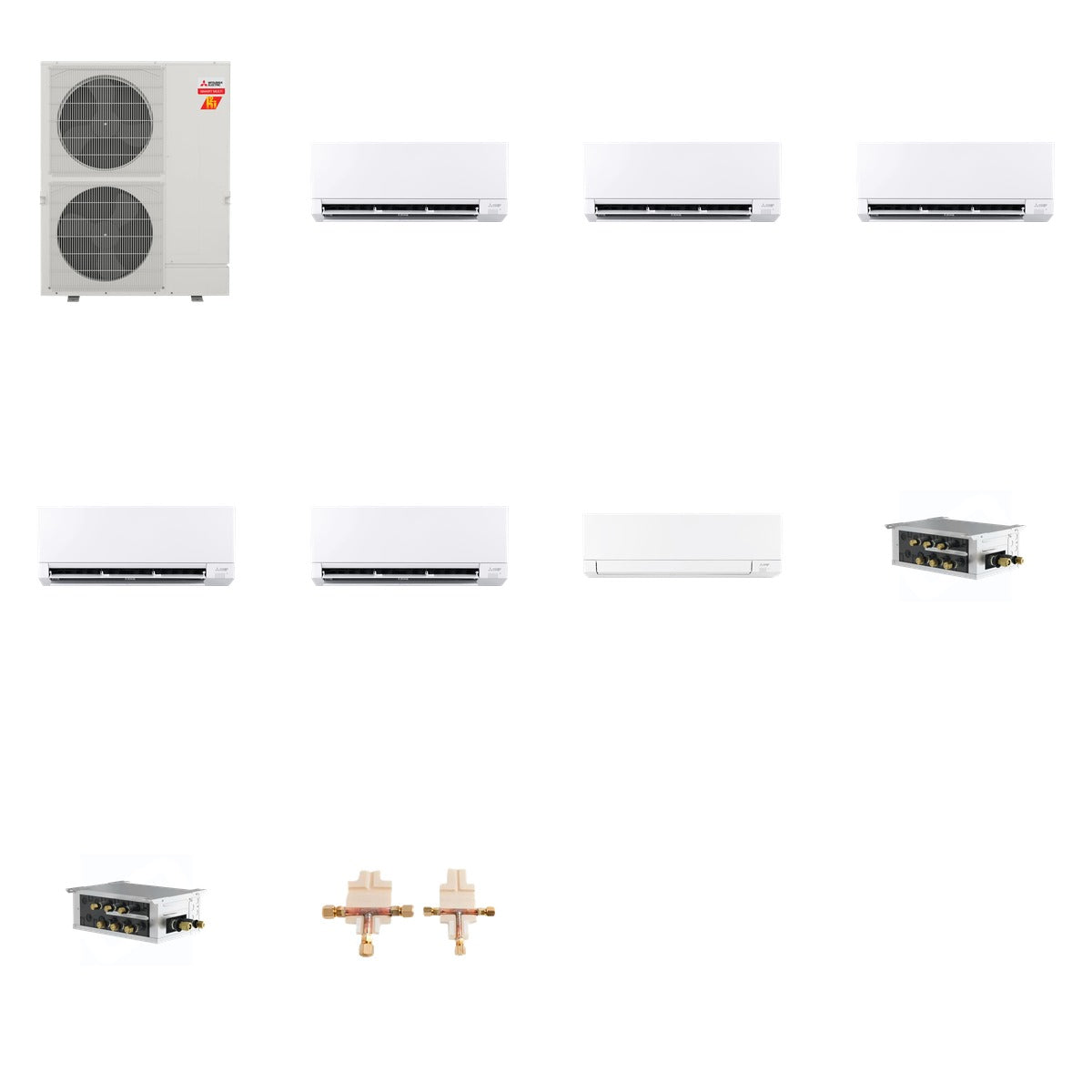

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-GX12NL - Mitsubishi Electric MSZ-GX12NL R454B 12k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-GX15NL - Mitsubishi Electric MSZ-GX15NL R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 372.1 lb (Mitsubishi 225 lb + Mitsubishi 66 lb + Mitsubishi 44 lb + Mitsubishi 22 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-ton inverter condenser
• MSZ-GX09NL: 9,000 BTU, SEER2 up to 28.4, minimum sound level 19 dB
• MSZ-GX12NL: 12,000 BTU, SEER2 up to 28.4, minimum sound level 19 dB
• MSZ-GX15NL: 15,000 BTU, minimum sound level 26 dB, built-in Wi-Fi
• PAC-LMA50BC: 5 ports, 208/230V, compatible with MXZ model units
• PAC-LMA30BC: 3 ports, 208/230V, ensures balanced refrigerant flow
• MSDD-50AR2-E: Flare connection, oxygen-free copper, compatible with R-410A/R-454B

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, making it suitable for both residential and commercial applications. The outdoor unit connects seamlessly with the included indoor air handlers, while the branch boxes and distribution kit ensure efficient refrigerant management. Ideal for installations requiring customized heating and cooling solutions.
