Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Mini Split Heat Pump System - 9K+9K+15K+15K+15K+15K

Description

This comprehensive bundle features essential components for optimizing your multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor heat pump unit serves as the powerhouse, providing efficient heating and cooling capabilities for up to eight zones. Paired with two MSZ-GX09NL and four MSZ-GX15NL wall-mounted air handlers, this setup ensures customizable comfort across various spaces. The PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe kit enhances system efficiency and installation ease. Together, these products create a robust HVAC solution suitable for both residential and commercial applications.

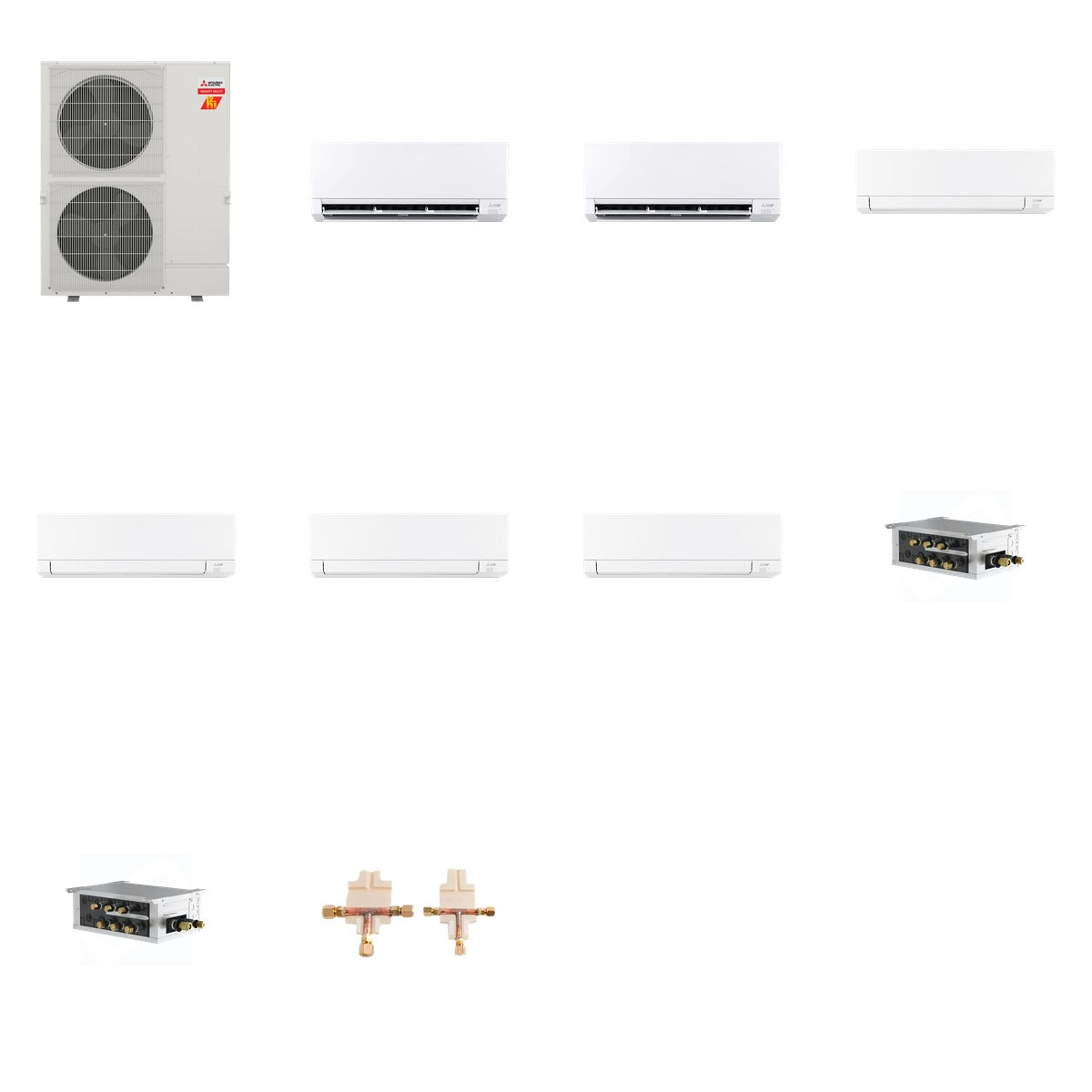

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-GX15NL - Mitsubishi Electric MSZ-GX15NL R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x4)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 372.1 lb (Mitsubishi 225 lb + Mitsubishi 44 lb + Mitsubishi 88 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU Cooling, 66,000 BTU Heating, SEER2 up to 23
• MSZ-GX09NL: 9,000 BTU Cooling, 10,900 BTU Heating, SEER2 up to 28.4
• MSZ-GX15NL: 15,000 BTU Cooling, 18,000 BTU Heating, SEER2 up to 28.4
• PAC-LMA50BC: 5 Ports, Voltage 208/230V, Phase 1
• PAC-LMA30BC: 3 Ports, Voltage 208/230V, Phase 1
• MSDD-50AR2-E: Flare Connection, Oxygen-Free Copper, Compatible with R-410A/R-454B

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling for residential and commercial spaces. The components are compatible with Mitsubishi Electric's M-Series and CITY MULTI indoor units, ensuring optimal performance and comfort across various environments.
