Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Mini Split Heat Pump System - 9K+9K+12K+12K+15K+15K

Description

This comprehensive HVAC bundle includes everything you need for an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, capable of connecting to multiple indoor units for customized comfort. The included MSZ-GX09NL, MSZ-GX12NL, and MSZ-GX15NL wall-mounted air handlers provide flexible options for different room sizes and applications, ensuring quiet operation and advanced features like built-in Wi-Fi and Econo Cool mode. To facilitate optimal refrigerant flow, this bundle also features two branch boxes (PAC-LMA50BC and PAC-LMA30BC) and a distribution kit (MSDD-50AR2-E), making it a perfect solution for both residential and commercial environments.

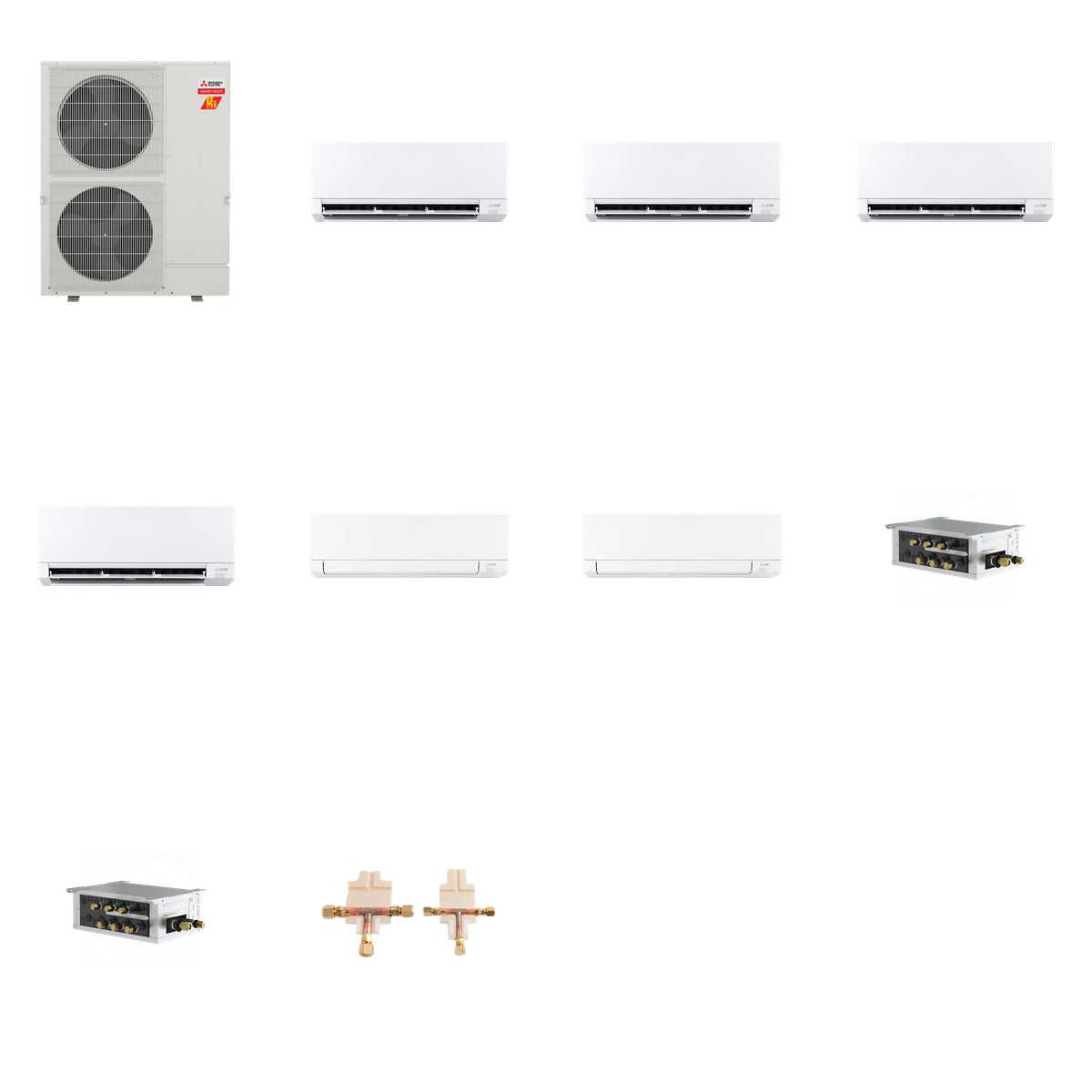

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-GX12NL - Mitsubishi Electric MSZ-GX12NL R454B 12k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-GX15NL - Mitsubishi Electric MSZ-GX15NL R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 372.1 lb (Mitsubishi 225 lb + Mitsubishi 44 lb + Mitsubishi 44 lb + Mitsubishi 44 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-ton capacity
• MSZ-GX09NL: 9,000 BTU, SEER2 up to 28.4, 208/230V
• MSZ-GX12NL: 12,000 BTU, SEER2 up to 28.4, 208/230V
• MSZ-GX15NL: 15,000 BTU, SEER2 up to 28.4, 208/230V
• PAC-LMA50BC: 5 ports, 208/230V
• PAC-LMA30BC: 3 ports, 208/230V
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B

Use & Compatibility

This bundle is designed for use in multi-zone heating and cooling systems, making it suitable for both residential and commercial applications. The outdoor unit connects seamlessly with the included indoor air handlers, while the branch boxes and distribution kit ensure efficient refrigerant flow and temperature control across multiple zones.
