Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Mini Split Heat Pump System - 6K+9K+9K+9K+9K+18K

Description

This comprehensive HVAC bundle is designed for those looking to create an efficient and versatile multi-zone heating and cooling system. Featuring a powerful Mitsubishi Electric MXZ-SM60NL outdoor unit, this package includes multiple wall-mounted air handlers (MSZ-GX06NL, MSZ-GX09NL, MSZ-GX18NL) that cater to different room sizes, ensuring optimal comfort throughout your space. The inclusion of branch boxes (PAC-LMA50BC, PAC-LMA30BC) and a distribution kit (MSDD-50AR2-E) enhances refrigerant management and installation efficiency, making this bundle ideal for both residential and commercial applications.

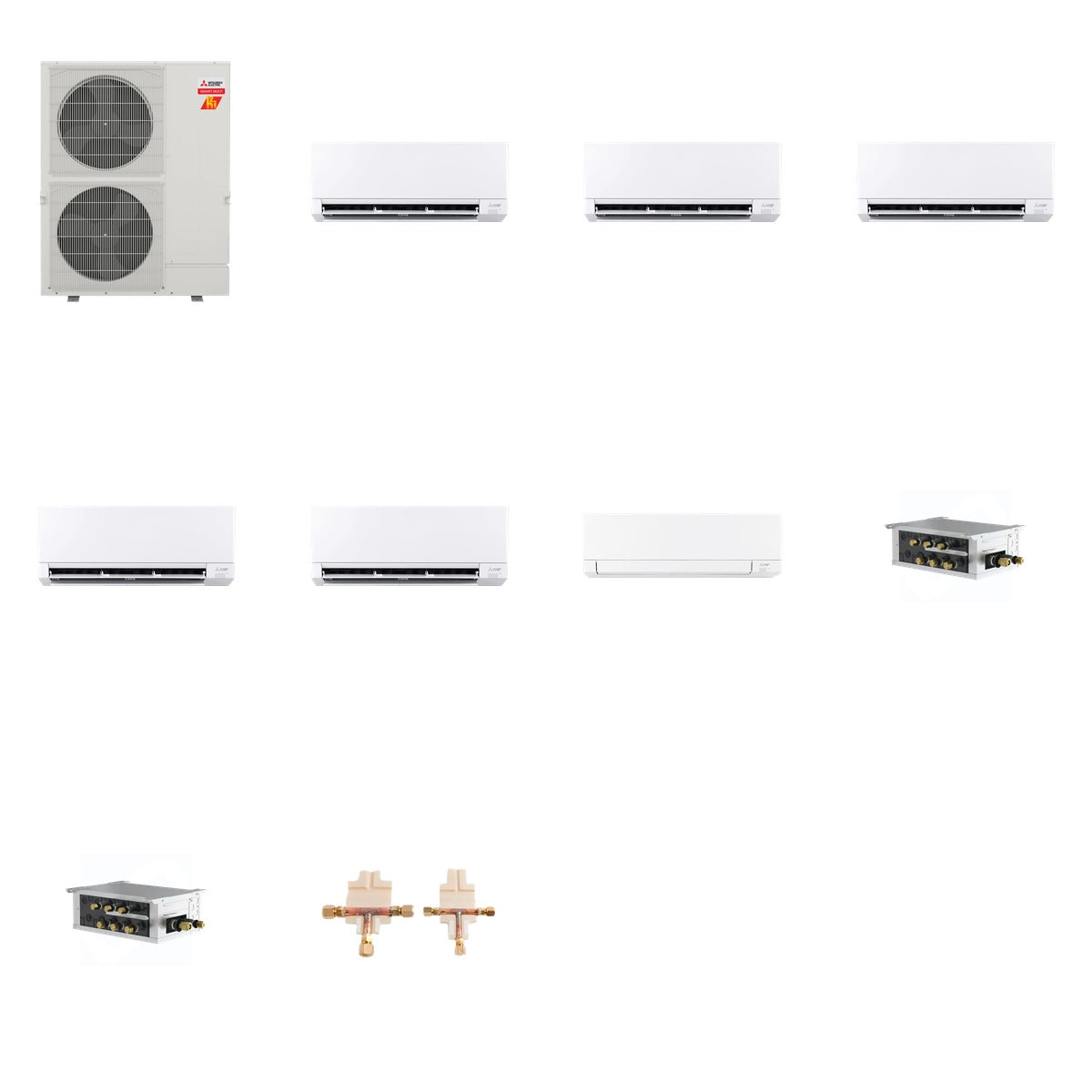

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX09NL - R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-GX18NL - R454B 18k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 378.1 lb (Mitsubishi 225 lb + Mitsubishi 22 lb + Mitsubishi 88 lb + Mitsubishi 28 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: Up to 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: Up to 66,000 BTU (MXZ-SM60NL)
• SEER2 Rating: Up to 28.4 (MSZ-GX06NL, MSZ-GX09NL)
• AFUE: Not applicable
• Voltage: 208/230 Volts (All units)
• Material: Copper and high-grade insulation (MSDD-50AR2-E)
• Dimensions: Vary by unit; see specifications for details

Use & Compatibility

This bundle is intended for creating a multi-zone heating and cooling system suitable for both residential and commercial environments. The outdoor unit is compatible with various Mitsubishi Electric indoor units, allowing for customized configurations. The branch boxes and distribution kit facilitate efficient refrigerant flow, ensuring optimal performance across all connected indoor units.
