Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Mini Split Heat Pump System - 6K+9K+9K+9K+18K+18K

Description

This comprehensive HVAC bundle includes essential components designed to enhance the efficiency and performance of your multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, capable of supporting multiple indoor units for customized climate control. Paired with three wall-mounted air handlers (MSZ-GX06NL, MSZ-GX09NL, and MSZ-GX18NL), this bundle provides versatile heating and cooling solutions for various room sizes. The inclusion of two branch boxes (PAC-LMA50BC and PAC-LMA30BC) ensures optimal refrigerant distribution, while the MSDD-50AR2-E branch pipe kit guarantees a secure and efficient connection. Together, these components create a robust system that delivers comfort and efficiency for both residential and commercial applications.

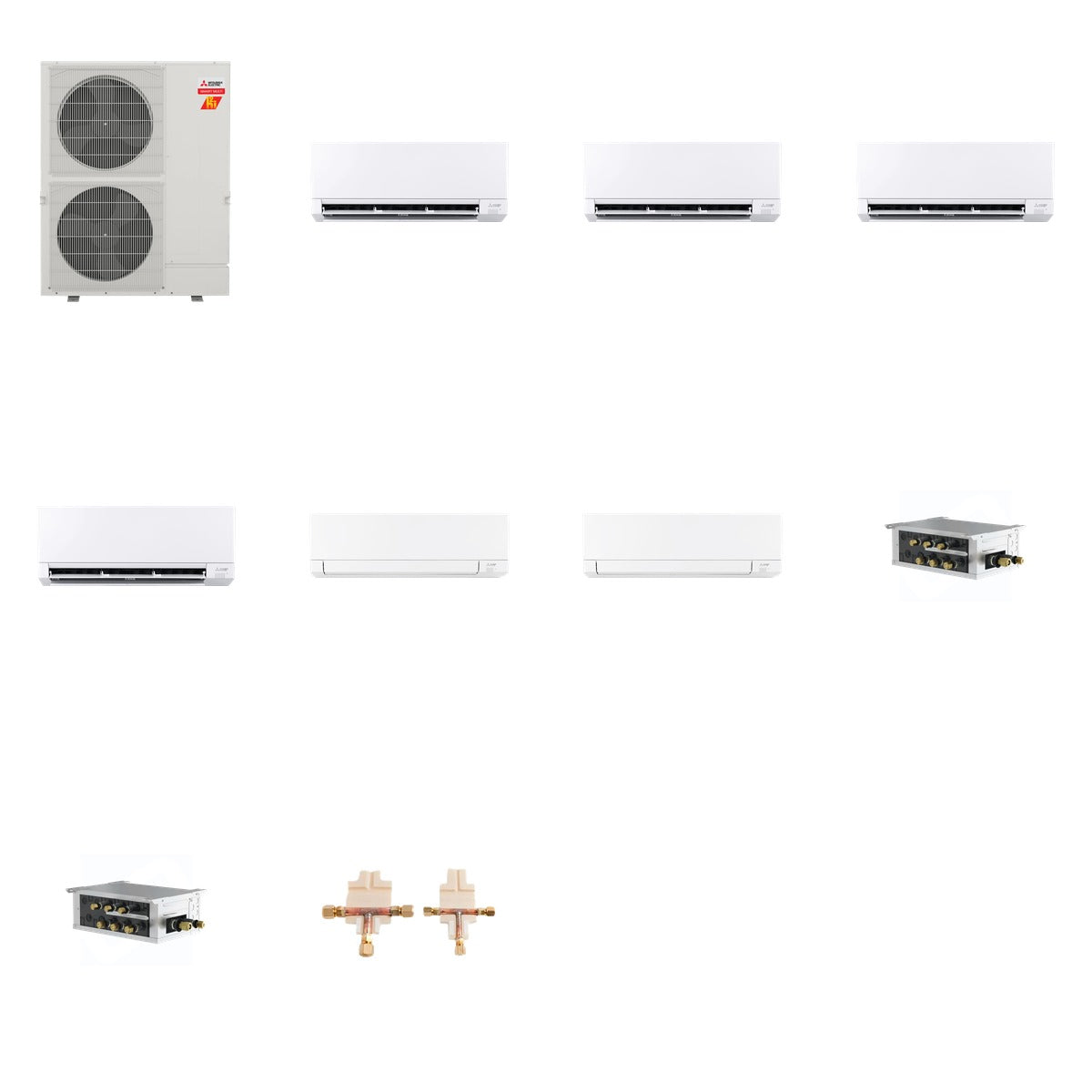

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - Mitsubishi Electric MSZ-GX06NL R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-GX18NL - Mitsubishi Electric MSZ-GX18NL R454B 18k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 384.1 lb (Mitsubishi 225 lb + Mitsubishi 22 lb + Mitsubishi 66 lb + Mitsubishi 56 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Indoor Units: 6,000 BTU (MSZ-GX06NL), 9,000 BTU (MSZ-GX09NL), 18,000 BTU (MSZ-GX18NL)
• SEER2 Rating: Up to 28.4 (MSZ-GX Series)
• Voltage: 208/230 Volts
• Refrigerant Type: R-454B
• Noise Level: As low as 19 dB(A) (MSZ-GX Series)
• Dimensions: Varies by unit

Use & Compatibility

This bundle is designed for residential and commercial HVAC applications, providing efficient heating and cooling in multi-zone configurations. The outdoor unit is compatible with various indoor units, allowing for tailored climate control in different spaces. The branch boxes and distribution kit ensure balanced refrigerant flow, enhancing overall system performance.
