Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Mini Split Heat Pump System - 6K+9K+9K+9K+15K+15K

Description

This comprehensive bundle features a selection of high-performance Mitsubishi Electric HVAC components designed for efficient heating and cooling in multi-zone systems. The MXZ-SM60NL outdoor unit serves as the powerhouse, capable of supporting multiple indoor handlers, while the MSZ-GX06NL, MSZ-GX09NL, and MSZ-GX15NL air handlers provide versatile solutions for various room sizes. Additionally, the PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate optimal refrigerant distribution, ensuring balanced performance across all connected units. The MSDD-50AR2-E branch pipe distribution kit enhances installation efficiency, making this bundle a complete solution for both residential and commercial applications.

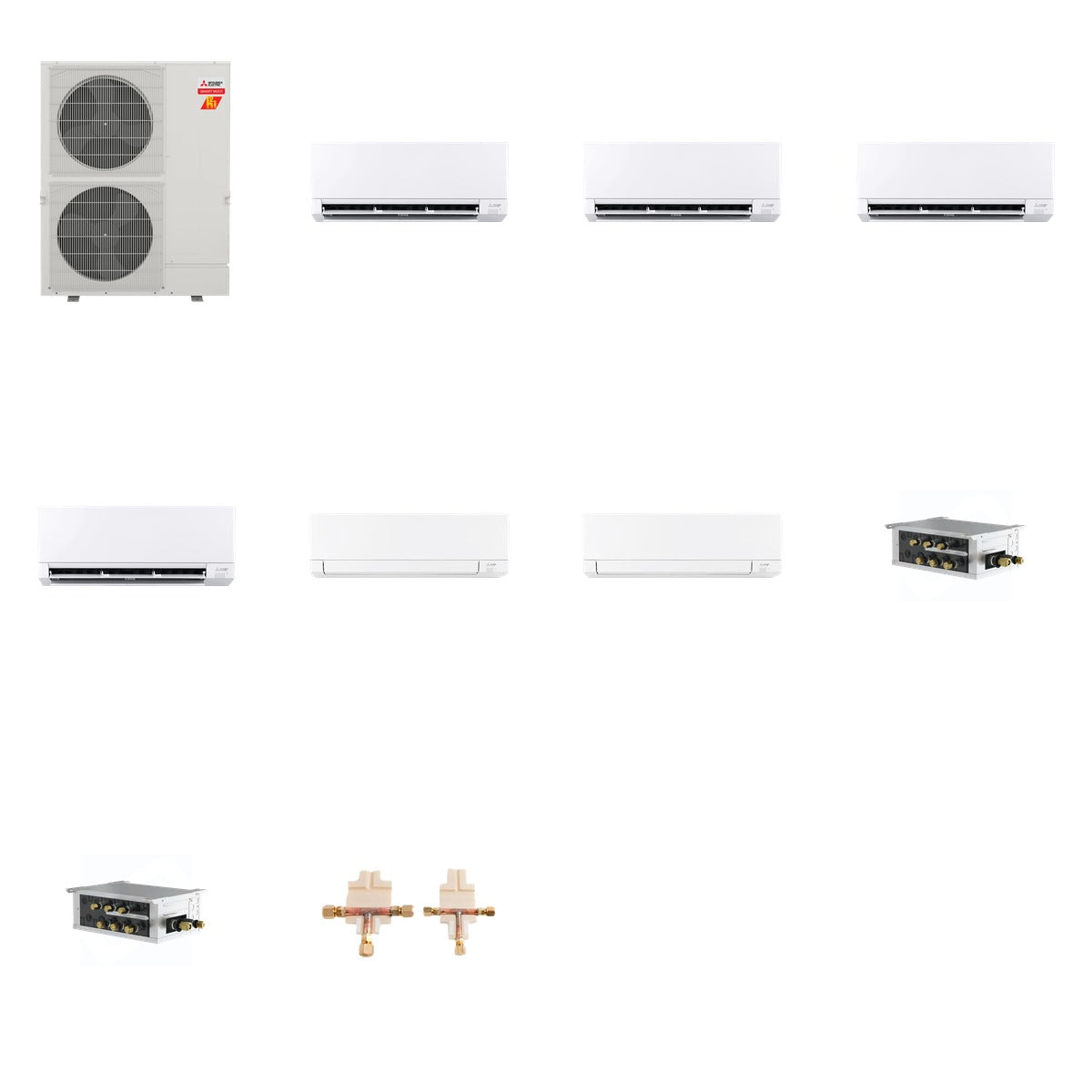

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX09NL - R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-GX15NL - R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 372.1 lb (Mitsubishi 225 lb + Mitsubishi 22 lb + Mitsubishi 66 lb + Mitsubishi 44 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: Up to 60,000 BTU/h (MXZ-SM60NL)
• Heating Capacity: Up to 66,000 BTU/h (MXZ-SM60NL)
• SEER2 Rating: Up to 28.4 (MSZ-GX06NL, MSZ-GX09NL, MSZ-GX15NL)
• Voltage: 208/230V
• Sound Level: As low as 19 dB(A) (MSZ-GX series)
• Refrigerant Type: R454B
• Branch Box Ports: 3 and 5 (PAC-LMA30BC, PAC-LMA50BC)

Use & Compatibility

This bundle is ideal for residential and commercial HVAC installations, providing efficient heating and cooling solutions for multi-zone environments. The components are compatible with various Mitsubishi Electric indoor units, ensuring optimal performance and comfort in diverse settings.
