Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Mini Split Heat Pump System - 6K+9K+12K+12K+15K+18K

Description

This comprehensive Mitsubishi Electric HVAC bundle is designed to meet the diverse heating and cooling needs of both residential and commercial spaces. Featuring a powerful MXZ-SM60NL multi-zone heat pump outdoor unit, this set is complemented by multiple wall-mounted air handlers (MSZ-GX06NL, MSZ-GX09NL, MSZ-GX12NL, MSZ-GX15NL, MSZ-GX18NL) that offer efficient operation and advanced features such as built-in Wi-Fi and Econo Cool mode. The included branch boxes (PAC-LMA50BC and PAC-LMA30BC) ensure optimal refrigerant distribution, while the MSDD-50AR2-E branch pipe distribution kit facilitates seamless installation. Together, these components create a versatile and efficient HVAC system tailored for maximum comfort and performance.

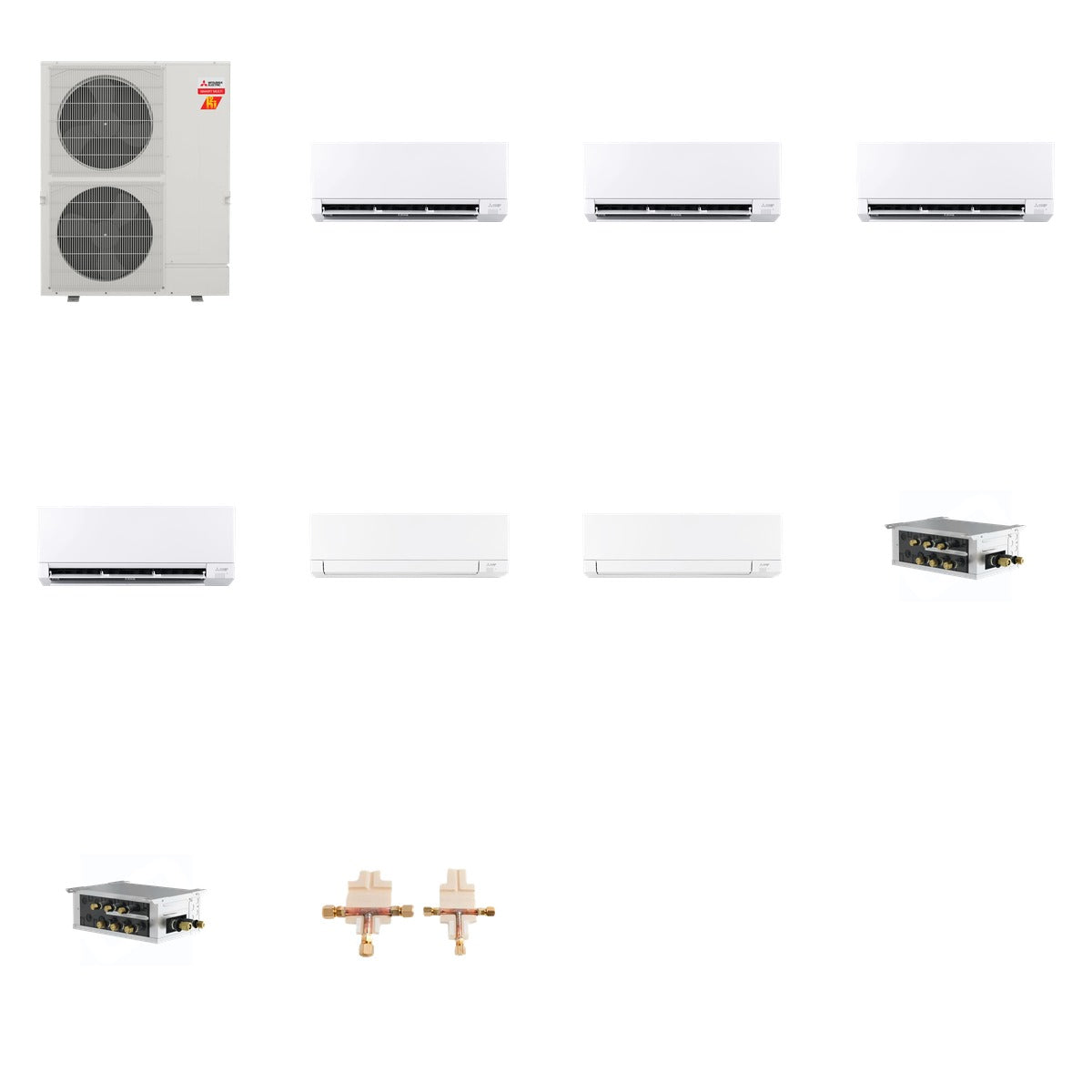

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - 6k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX09NL - 9k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX12NL - 12k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-GX15NL - 15k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX18NL - 18k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 378.1 lb (Mitsubishi 225 lb + Mitsubishi 22 lb + Mitsubishi 22 lb + Mitsubishi 44 lb + Mitsubishi 22 lb + Mitsubishi 28 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU Cooling, 66,000 BTU Heating, SEER2 up to 23
• MSZ-GX06NL: 6,000 BTU Cooling, 7,200 BTU Heating, SEER2 up to 28.4
• MSZ-GX09NL: 9,000 BTU Cooling, 10,900 BTU Heating, SEER2 up to 28.4
• MSZ-GX12NL: 12,000 BTU Cooling, 14,400 BTU Heating, SEER2 up to 28.4
• MSZ-GX15NL: 15,000 BTU Cooling, 18,000 BTU Heating, SEER2 up to 28.4
• MSZ-GX18NL: 18,000 BTU Cooling, 21,600 BTU Heating, SEER2 up to 22.5
• PAC-LMA50BC: 5 Ports, 208/230 Volts
• PAC-LMA30BC: 3 Ports, 208/230 Volts
• MSDD-50AR2-E: Flare Connection, compatible with R-410A/R-454B

Use & Compatibility

This bundle is ideal for creating a flexible and efficient multi-zone HVAC system, suitable for various indoor configurations. The outdoor unit connects seamlessly with the included wall-mounted air handlers, while the branch boxes and distribution kit ensure optimal refrigerant flow and temperature control across all zones. Perfect for both residential and commercial applications, this setup guarantees comfort and energy efficiency.
