Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+9K+9K+12K+18K

Description

This comprehensive Mitsubishi Electric HVAC bundle includes everything you need for a multi-zone heating and cooling system. The MXZ-SM60NL outdoor unit provides robust performance with a capacity of 60,000 BTU, making it ideal for both residential and commercial applications. Paired with multiple wall-mounted air handlers, including the MSZ-GX06NL, MSZ-GX09NL, MSZ-GX12NL, and MSZ-GX18NL, this bundle ensures efficient climate control across various spaces. The included branch boxes (PAC-LMA50BC and PAC-LMA30BC) facilitate seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe kit enhances installation efficiency. Together, these components create a versatile and effective HVAC solution that maximizes comfort and energy savings.

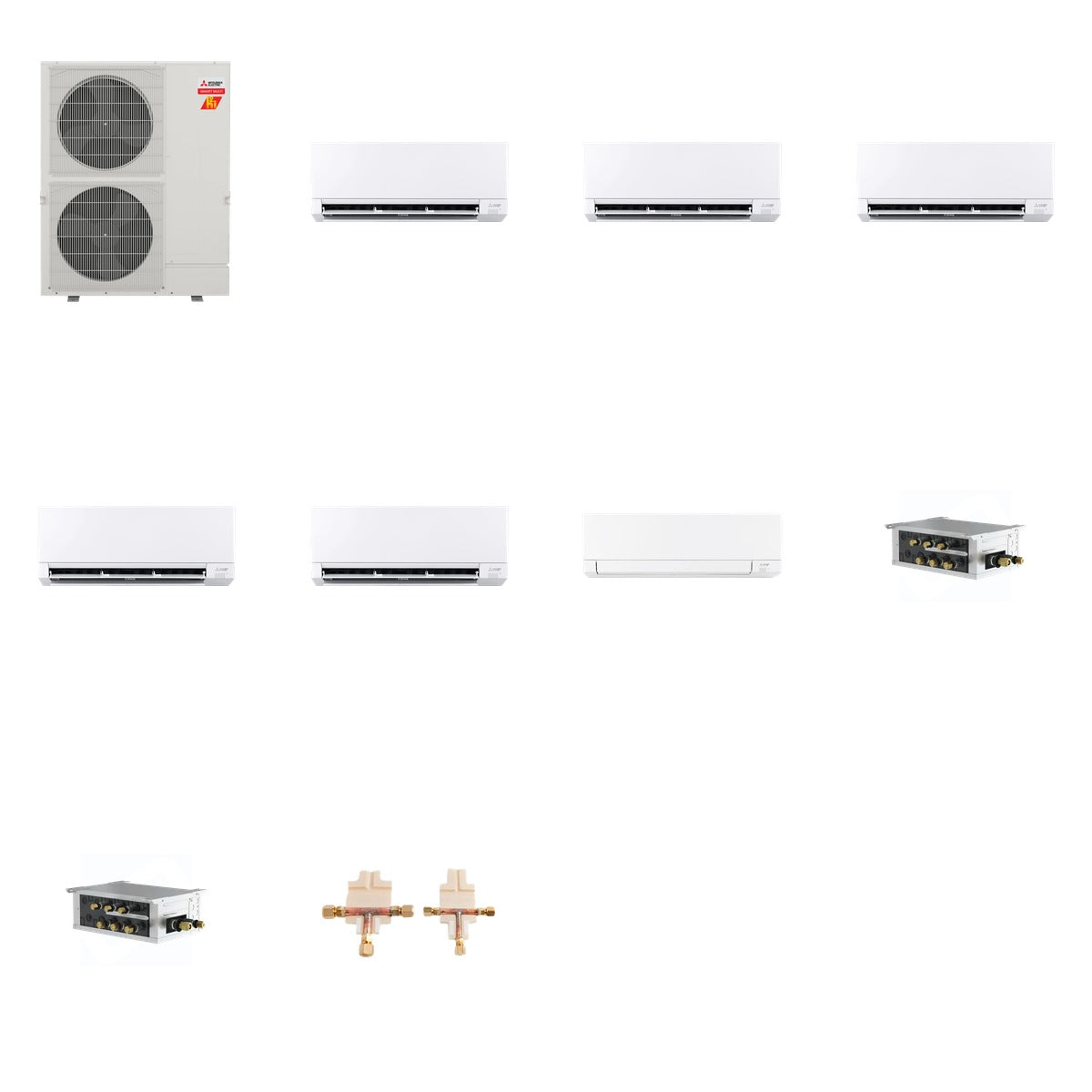

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - Mitsubishi Electric MSZ-GX06NL R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-GX12NL - Mitsubishi Electric MSZ-GX12NL R454B 12k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX18NL - Mitsubishi Electric MSZ-GX18NL R454B 18k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 378.1 lb (Mitsubishi 225 lb + Mitsubishi 44 lb + Mitsubishi 44 lb + Mitsubishi 22 lb + Mitsubishi 28 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Wall Mount Air Handlers: 6,000 BTU to 18,000 BTU
• SEER2 Rating: Up to 28.4 (MSZ-GX Series)
• Refrigerant: R454B
• Voltage: 208/230 Volts
• Noise Level: As low as 19 dB(A)
• Dimensions (Outdoor Unit): 41-11/32 in W x 13 in D x 52-11/16 in H
• Dimensions (Wall Mount Units): Varies by model

Use & Compatibility

This bundle is designed for both residential and commercial applications, providing efficient heating and cooling across multiple zones. The outdoor unit is compatible with various indoor units, allowing for customized setups. The branch boxes and distribution kit ensure optimal refrigerant flow, making it suitable for complex installations.
