Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+9K+12K+18K+18K

Description

This comprehensive bundle features essential components for creating an efficient multi-zone HVAC system. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, capable of connecting to multiple indoor units for customized comfort across various spaces. Accompanied by a selection of wall-mounted air handlers, including the MSZ-GX06NL, MSZ-GX09NL, MSZ-GX12NL, and MSZ-GX18NL, this package ensures optimal heating and cooling performance tailored to your needs. Additionally, the PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe kit enhances installation efficiency. Together, these components provide a robust solution for both residential and commercial applications.

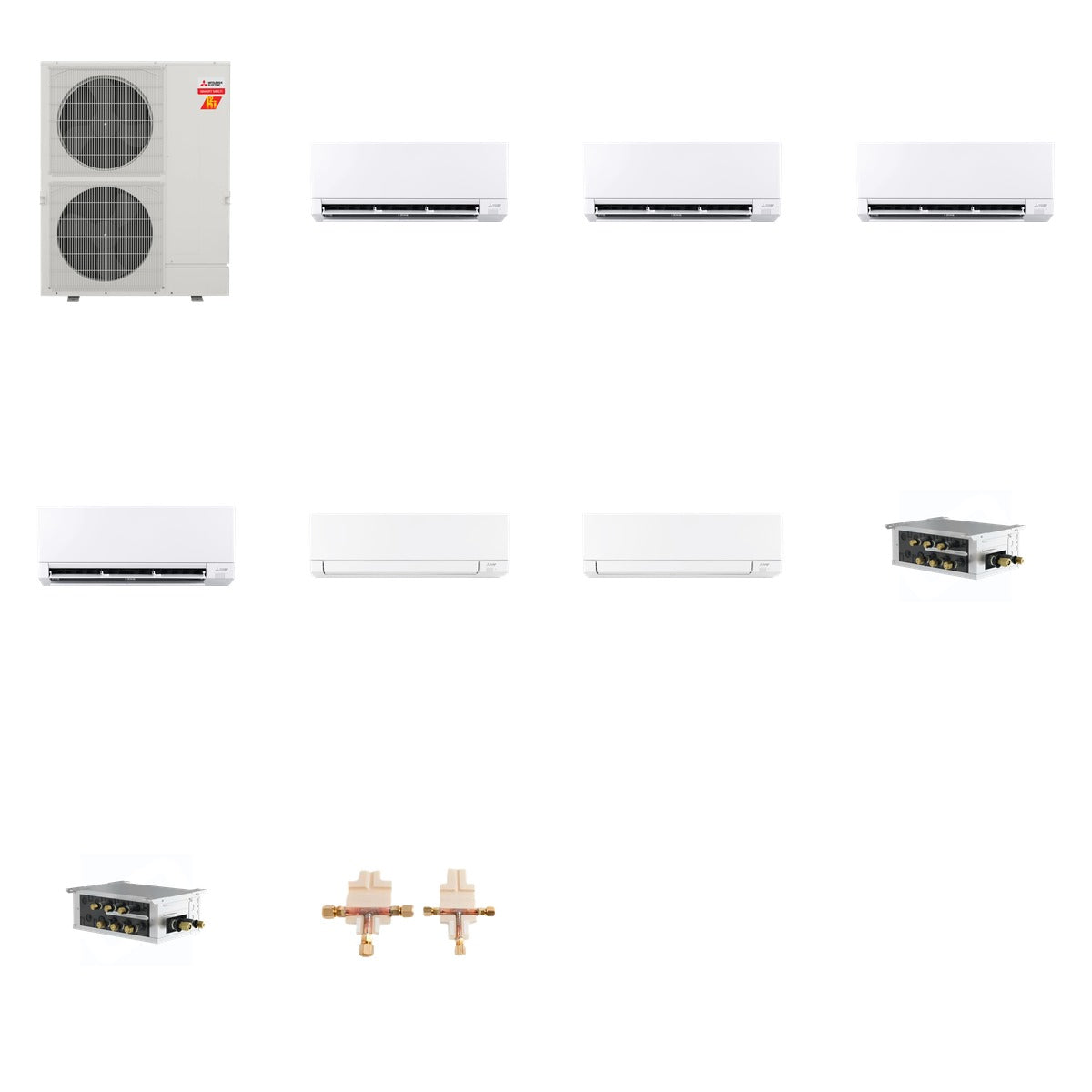

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - Mitsubishi Electric MSZ-GX06NL R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX12NL - Mitsubishi Electric MSZ-GX12NL R454B 12k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX18NL - Mitsubishi Electric MSZ-GX18NL R454B 18k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 384.1 lb (Mitsubishi 225 lb + Mitsubishi 44 lb + Mitsubishi 22 lb + Mitsubishi 22 lb + Mitsubishi 56 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU Cooling, 66,000 BTU Heating, SEER2 up to 23
• MSZ-GX06NL: 6,000 BTU Cooling, 7,200 BTU Heating, SEER2 up to 28.4
• MSZ-GX09NL: 9,000 BTU Cooling, 10,900 BTU Heating, SEER2 up to 28.4
• MSZ-GX12NL: 12,000 BTU Cooling, 14,400 BTU Heating, SEER2 up to 28.4
• MSZ-GX18NL: 18,000 BTU Cooling, 21,600 BTU Heating, SEER2 22.5
• PAC-LMA50BC: 5 Ports, Voltage 208/230V
• PAC-LMA30BC: 3 Ports, Voltage 208/230V
• MSDD-50AR2-E: Compatible with R-410A/R-454B, Flare Connection

Use & Compatibility

This bundle is designed for use in both residential and commercial HVAC systems, providing efficient heating and cooling solutions. The outdoor unit is compatible with various indoor units, allowing for flexible configurations. The branch boxes and distribution kit ensure optimal refrigerant flow and temperature control across multiple zones, making this an ideal choice for diverse applications.
