Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+9K+9K+15K

Description

This comprehensive Mitsubishi Electric bundle is designed for efficient heating and cooling in both residential and commercial environments. The MXZ-SM60NL outdoor unit provides powerful multi-zone capabilities, while the included wall-mounted air handlers (MSZ-GX06NL, MSZ-GX09NL, and MSZ-GX15NL) ensure optimal comfort in various spaces. The PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate seamless refrigerant distribution, enhancing system performance. The MSDD-50AR2-E branch pipe distribution kit further optimizes refrigerant flow, ensuring balanced operation across all connected indoor units. Together, these components create a versatile and reliable HVAC solution that meets diverse climate control needs.

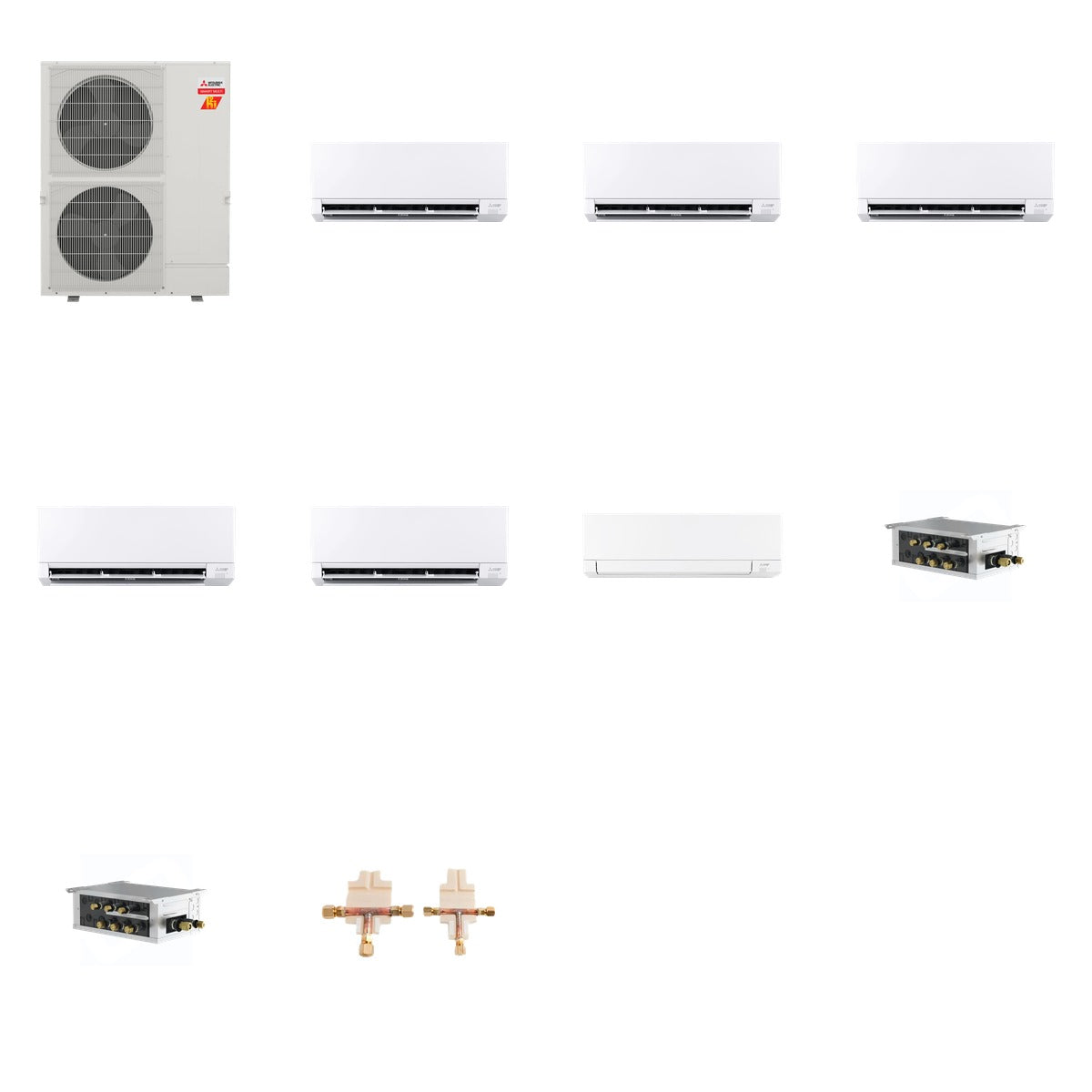

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - Mitsubishi Electric MSZ-GX06NL R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-GX15NL - Mitsubishi Electric MSZ-GX15NL R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 372.1 lb (Mitsubishi 225 lb + Mitsubishi 66 lb + Mitsubishi 44 lb + Mitsubishi 22 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Wall Mount Air Handlers: 6,000 BTU (MSZ-GX06NL), 9,000 BTU (MSZ-GX09NL), 15,000 BTU (MSZ-GX15NL)
• SEER2 Ratings: Up to 28.4 (MSZ-GX06NL, MSZ-GX09NL, MSZ-GX15NL)
• Refrigerant Type: R454B
• Voltage: 208/230 Volts
• Sound Level: As low as 19 dB(A) (MSZ-GX models)
• Branch Box Ports: 5 (PAC-LMA50BC), 3 (PAC-LMA30BC)

Use & Compatibility

This bundle is ideal for multi-zone HVAC systems, providing flexible heating and cooling solutions. The outdoor unit is compatible with various Mitsubishi Electric indoor units, allowing for tailored climate control in different spaces. The branch boxes and distribution kit ensure efficient refrigerant management, making this set perfect for both residential and commercial applications.
