Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+9K+18K+24K

Description

This comprehensive bundle includes essential components for setting up an efficient multi-zone HVAC system. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, capable of supporting multiple indoor units for tailored heating and cooling solutions. Accompanied by three wall-mounted air handlers (MSZ-GX06NL, MSZ-GX09NL, MSZ-GX18NL, and MSZ-GX24NL), each designed for specific room sizes, this bundle ensures optimal comfort across various spaces. Additionally, the PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe kit enhances installation efficiency. Together, these components create a versatile and high-performing HVAC system suitable for both residential and commercial applications.

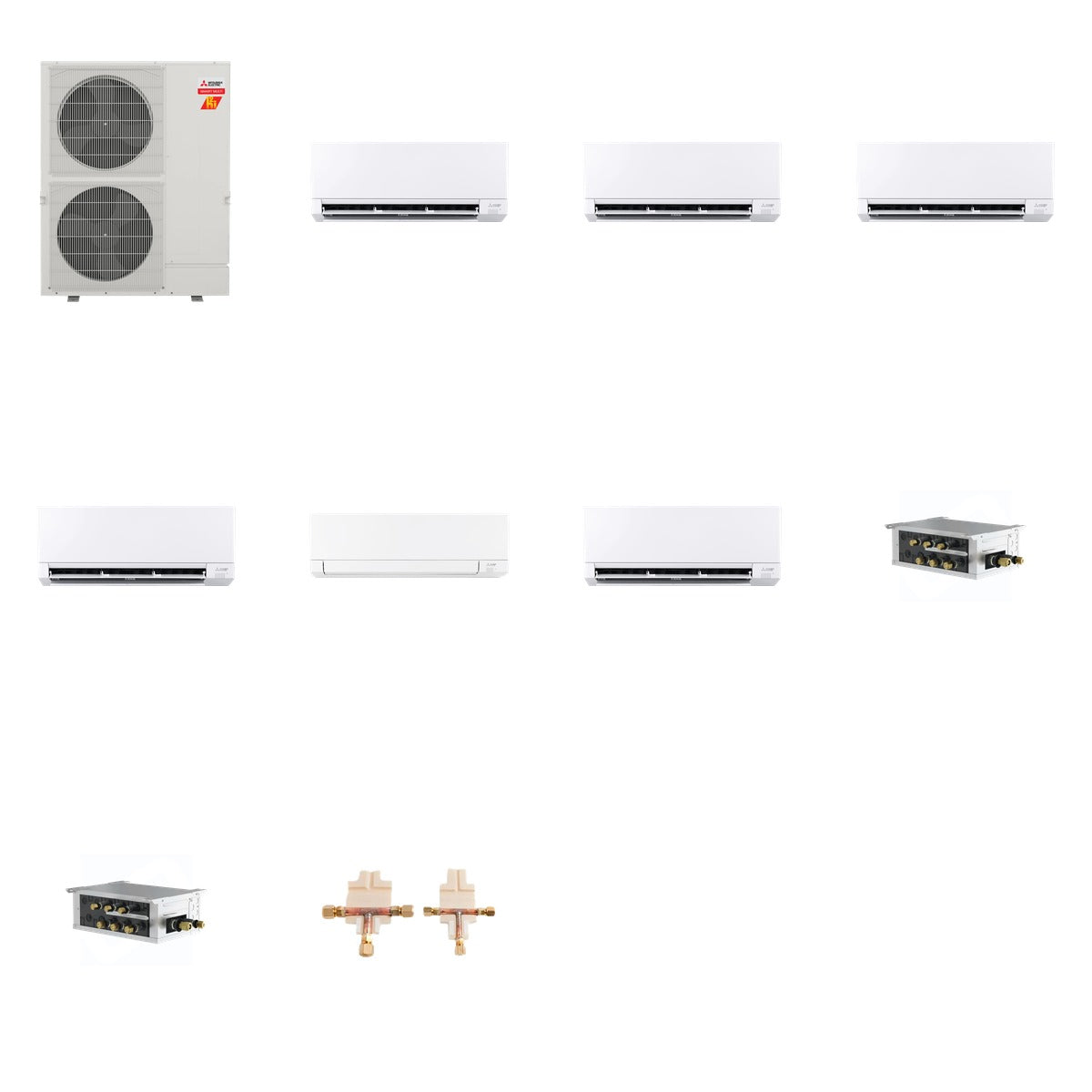

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-GX09NL - R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX18NL - R454B 18k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX24NL - R454B 24k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 384.1 lb (Mitsubishi 225 lb + Mitsubishi 66 lb + Mitsubishi 22 lb + Mitsubishi 28 lb + Mitsubishi 28 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• SEER2: Up to 28.4 (MSZ-GX Series)
• Voltage: 208/230 Volts
• Noise Level: As low as 19 dB(A) (MSZ-GX Series)
• Refrigerant: R454B
• Dimensions (MXZ-SM60NL): 41-11/32 in W x 13 in D x 52-11/16 in H
• Weight (PAC-LMA50BC): 16 lbs

Use & Compatibility

This bundle is designed for efficient heating and cooling in residential and commercial environments. The outdoor unit connects seamlessly with the included wall-mounted air handlers, allowing for customized climate control across multiple zones. The branch boxes and distribution kit enhance refrigerant flow management, ensuring optimal performance and energy efficiency in multi-zone systems.
