Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+9K+15K+15K

Description

This comprehensive HVAC bundle features a selection of Mitsubishi Electric products designed for optimal heating and cooling in multi-zone systems. The MXZ-SM60NL outdoor unit serves as the backbone, providing powerful 60,000 BTU capacity and compatibility with various indoor units. Paired with three MSZ-GX06NL air handlers, one MSZ-GX09NL, and two MSZ-GX15NL units, this bundle ensures efficient climate control across multiple spaces. Additionally, the PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate seamless refrigerant management, while the MSDD-50AR2-E distribution kit ensures balanced performance. Together, these components create a versatile and efficient HVAC solution for both residential and commercial applications.

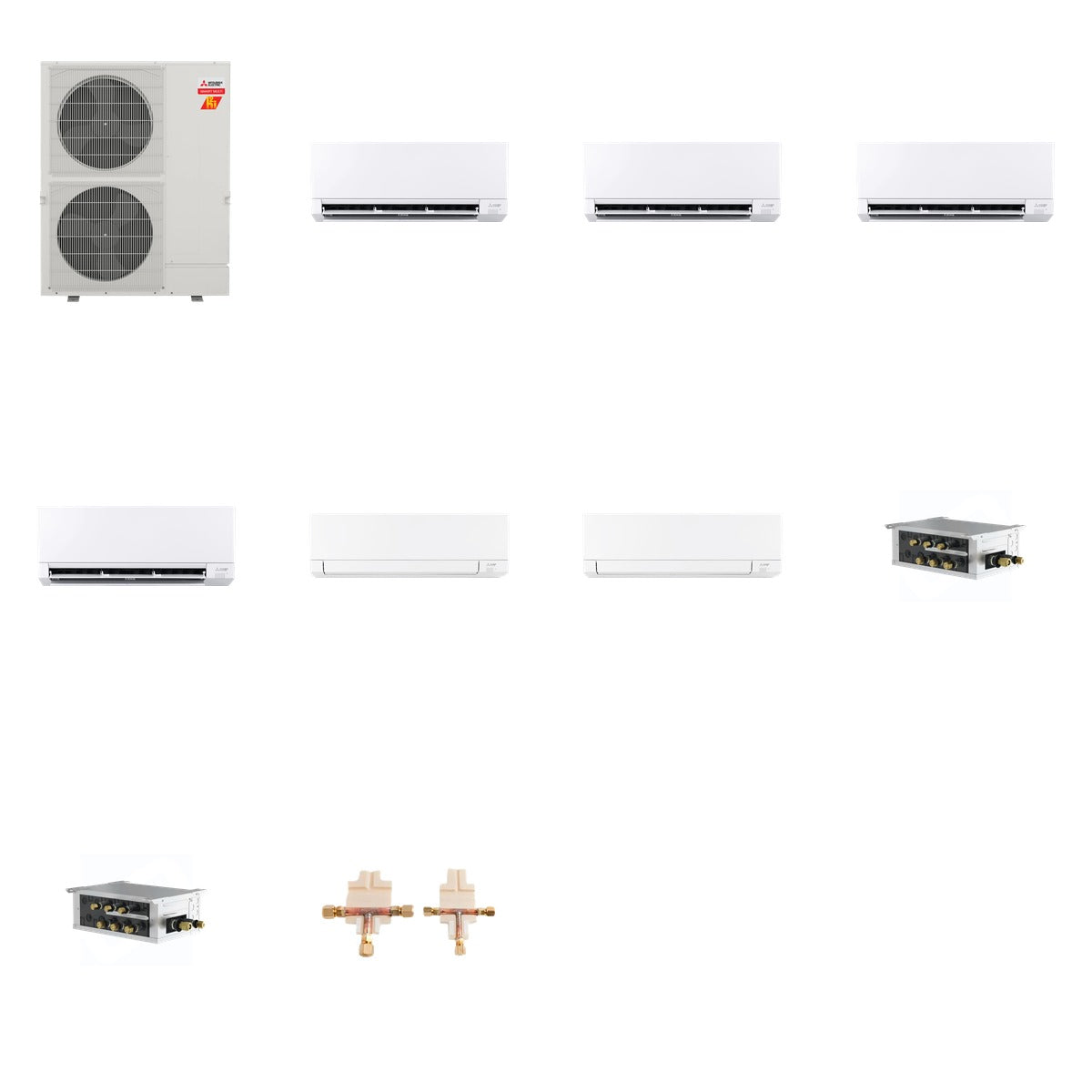

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - Mitsubishi Electric MSZ-GX06NL R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX15NL - Mitsubishi Electric MSZ-GX15NL R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)

Key Details

• Weight of Bundle: 372.1 lb (Mitsubishi 225 lb + Mitsubishi 66 lb + Mitsubishi 22 lb + Mitsubishi 44 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU, 5-Ton Inverter, SEER2 up to 23
• MSZ-GX06NL: 6,000 BTU, SEER2 up to 28.4, Wi-Fi enabled
• MSZ-GX09NL: 9,000 BTU, SEER2 up to 28.4, Wi-Fi enabled
• MSZ-GX15NL: 15,000 BTU, SEER2 up to 28.4, Wi-Fi enabled
• PAC-LMA50BC: 5 ports, compatible with MXZ outdoor units
• PAC-LMA30BC: 3 ports, ensures balanced refrigerant flow
• MSDD-50AR2-E: Flare connection, oxygen-free copper construction

Use & Compatibility

This bundle is ideal for residential and commercial HVAC applications, providing efficient heating and cooling across multiple zones. The outdoor unit is compatible with various indoor air handlers, enabling tailored climate control for different spaces. The branch boxes and distribution kit facilitate optimal refrigerant management, ensuring consistent performance throughout the system.
