Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+6K+6K+15K

Description

This comprehensive HVAC bundle is designed for those looking to optimize their multi-zone heating and cooling systems. Featuring the Mitsubishi Electric MXZ-SM60NL outdoor unit, this package includes a combination of wall-mounted air handlers (MSZ-GX06NL and MSZ-GX15NL) for efficient temperature control in various spaces. The inclusion of two branch boxes (PAC-LMA50BC and PAC-LMA30BC) ensures seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe distribution kit enhances overall system performance. Together, these components provide a versatile and efficient solution for residential and commercial applications.

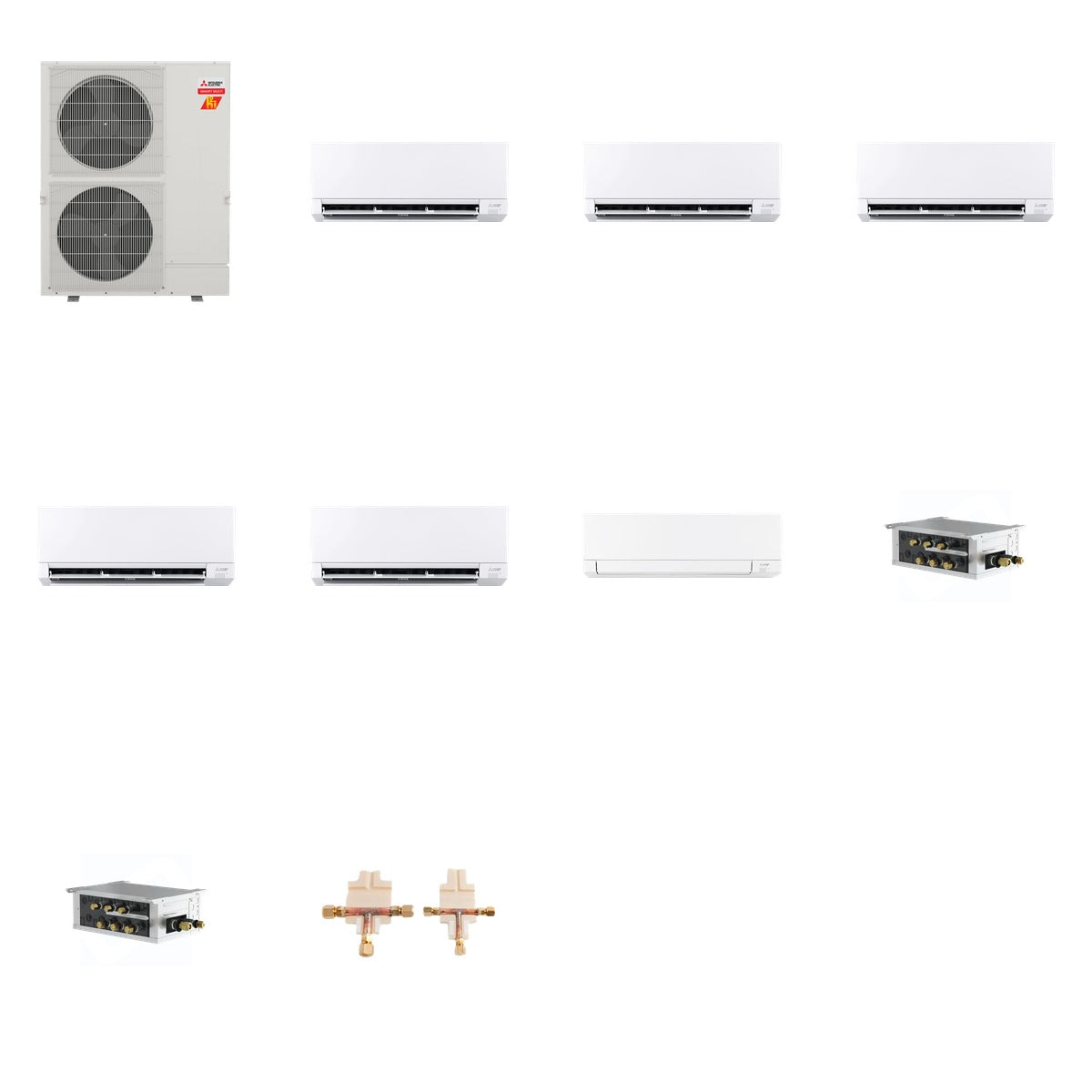

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x5)
• MITSUBISHI ELECTRIC MSZ-GX15NL - R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 372.1 lb (Mitsubishi 225 lb + Mitsubishi 110 lb + Mitsubishi 22 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL), 6,000 BTU (MSZ-GX06NL), 15,000 BTU (MSZ-GX15NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL), 7,200 BTU (MSZ-GX06NL), 18,000 BTU (MSZ-GX15NL)
• SEER2: Up to 23 (MXZ-SM60NL), Up to 28.4 (MSZ-GX06NL)
• AFUE: Not applicable
• Voltage: 208/230 Volts
• Dimensions: MXZ-SM60NL (41-11/32" W x 13" D x 52-11/16" H), MSZ-GX06NL (11.78" H x 31.40" W x 9.65" D), MSZ-GX15NL (11.77" H x 31.40" W x 9.65" D)
• Material: Copper (MSDD-50AR2-E), Plastic/Metal (branch boxes)

Use & Compatibility

This bundle is ideal for both residential and commercial HVAC applications, providing efficient heating and cooling solutions across multiple zones. The components are designed to work seamlessly together, ensuring optimal refrigerant flow and temperature control in various indoor environments. The outdoor unit is compatible with M-Series, P-Series, and CITY MULTI indoor units, making it a versatile choice for diverse installation needs.
