Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+6K+18K+24K

Description

This comprehensive HVAC bundle features essential components designed to create an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, capable of supporting up to eight indoor units, while the MSZ-GX series air handlers provide versatile heating and cooling options for various room sizes. With advanced filtration systems and built-in Wi-Fi capabilities, these units ensure optimal air quality and user convenience. The included branch boxes facilitate seamless refrigerant flow management, making this bundle perfect for both residential and commercial applications.

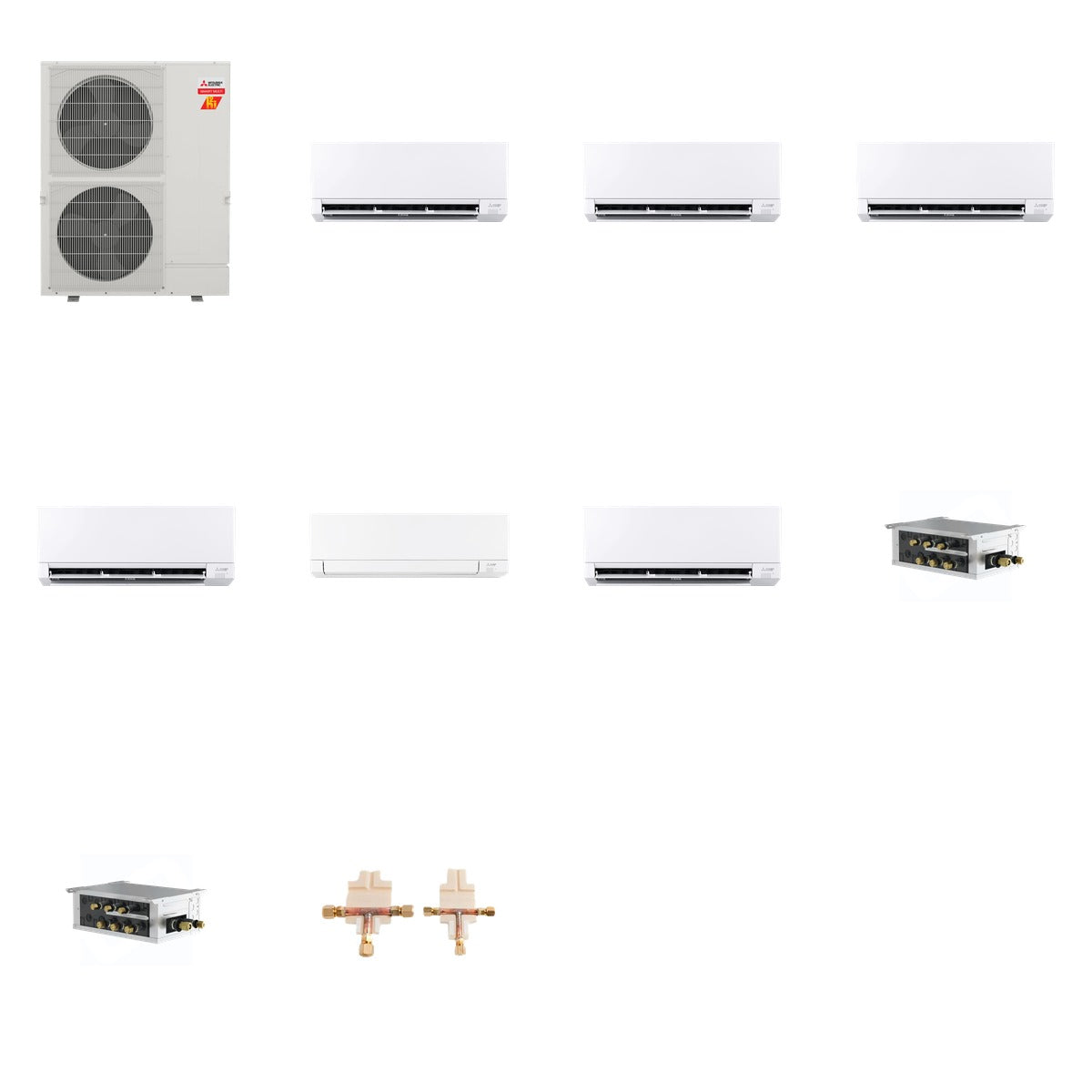

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-GX18NL - R454B 18k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX24NL - R454B 24k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 384.1 lb (Mitsubishi 225 lb + Mitsubishi 88 lb + Mitsubishi 28 lb + Mitsubishi 28 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Indoor Unit Capacities: 6,000 BTU (MSZ-GX06NL), 18,000 BTU (MSZ-GX18NL), 24,000 BTU (MSZ-GX24NL)
• SEER2 Ratings: Up to 28.4 (MSZ-GX series)
• Refrigerant Type: R454B
• Voltage: 208/230 Volts
• Sound Levels: As low as 19 dB(A) (MSZ-GX series)
• Dimensions (Outdoor Unit): 41-11/32 in W x 13 in D x 52-11/16 in H

Use & Compatibility

This bundle is ideal for creating a multi-zone HVAC system, providing efficient heating and cooling for residential and commercial spaces. The outdoor unit is compatible with various M-Series and CITY MULTI indoor units, while the branch boxes and distribution kit ensure optimal refrigerant flow and temperature control across multiple zones.
