Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+6K+12K+15K

Description

This comprehensive HVAC bundle includes everything you need for a multi-zone heating and cooling system. Featuring the Mitsubishi Electric MXZ-SM60NL outdoor unit, this setup is designed to efficiently connect with multiple indoor air handlers, ensuring optimal comfort across various spaces. The bundle includes four wall-mounted air handlers (MSZ-GX06NL, MSZ-GX12NL, MSZ-GX15NL) that cater to different room sizes and requirements, along with essential branch boxes (PAC-LMA50BC, PAC-LMA30BC) for effective refrigerant distribution. Each component is engineered for high performance, energy efficiency, and quiet operation, making this bundle ideal for both residential and commercial applications.

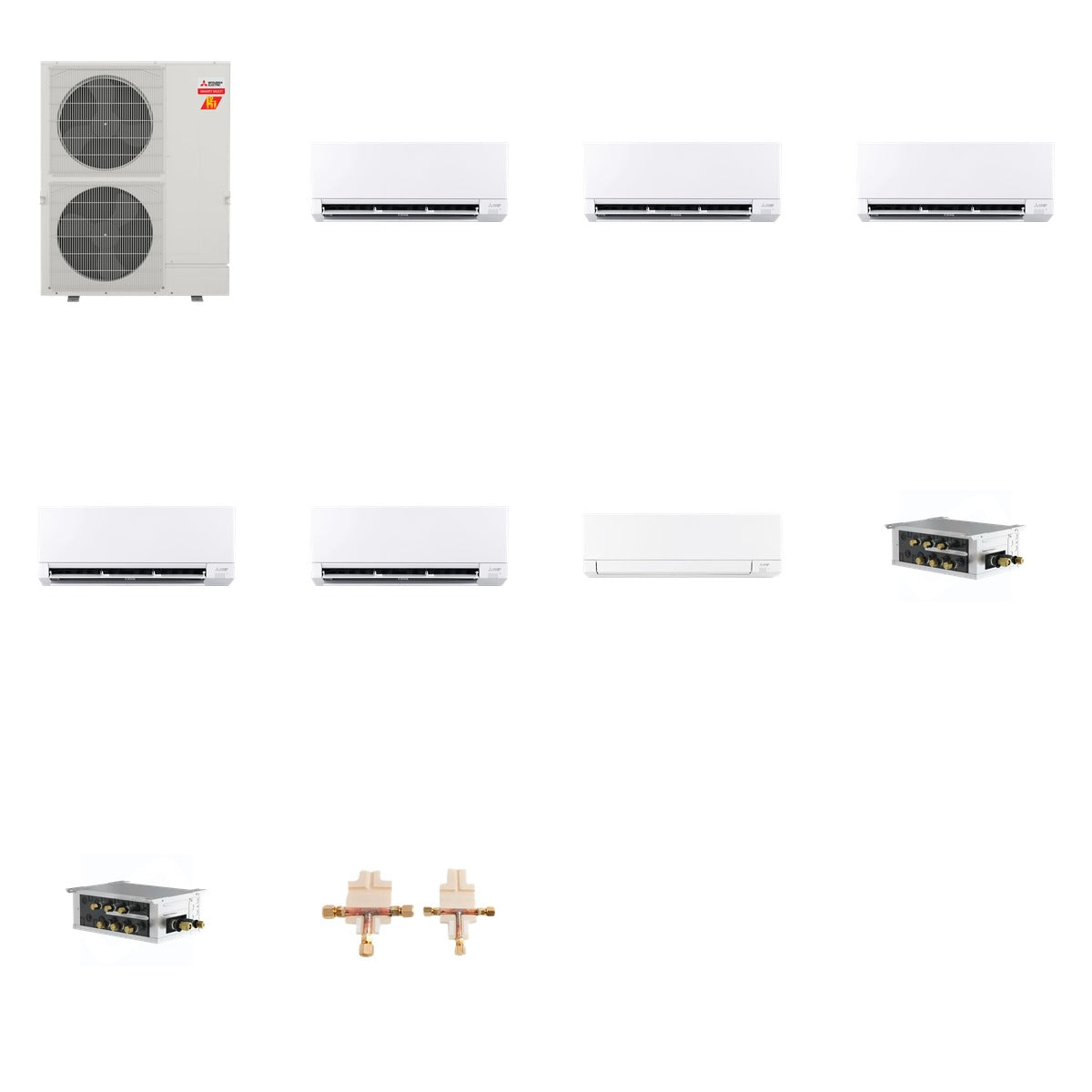

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - 6k BTU Heat Pump Wall Mount Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-GX12NL - 12k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX15NL - 15k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 372.1 lb (Mitsubishi 225 lb + Mitsubishi 88 lb + Mitsubishi 22 lb + Mitsubishi 22 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU Cooling Capacity, 66,000 BTU Heating Capacity, SEER2 up to 23
• MSZ-GX06NL: 6,000 BTU Cooling, 7,200 BTU Heating, SEER2 up to 28.4
• MSZ-GX12NL: 12,000 BTU Cooling, 14,400 BTU Heating, SEER2 up to 28.4
• MSZ-GX15NL: 15,000 BTU Cooling, 18,000 BTU Heating, SEER2 up to 28.4
• PAC-LMA50BC: 5 Ports, 208/230V, Compatible with MXZ models
• PAC-LMA30BC: 3 Ports, 208/230V, Compatible with R454B refrigerant
• MSDD-50AR2-E: Flare Connection, Oxygen-Free Copper, R-410A/R-454B compatible

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling solutions for both residential and commercial spaces. The outdoor unit connects seamlessly with the included wall-mounted air handlers, while the branch boxes and distribution kit ensure optimal refrigerant flow and temperature control across multiple indoor units.
