Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+15K+18K+24K

Description

This comprehensive HVAC bundle includes essential components designed for optimal performance in multi-zone heating and cooling systems. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the backbone, providing robust 60,000 BTU capacity to support multiple indoor units. Paired with three wall-mounted air handlers (MSZ-GX06NL, MSZ-GX15NL, MSZ-GX18NL, and MSZ-GX24NL), this bundle ensures efficient climate control across various room sizes. The inclusion of branch boxes (PAC-LMA30BC and PAC-LMA50BC) facilitates seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe kit enhances installation efficiency. Together, these components create a versatile and powerful HVAC solution suitable for both residential and commercial applications.

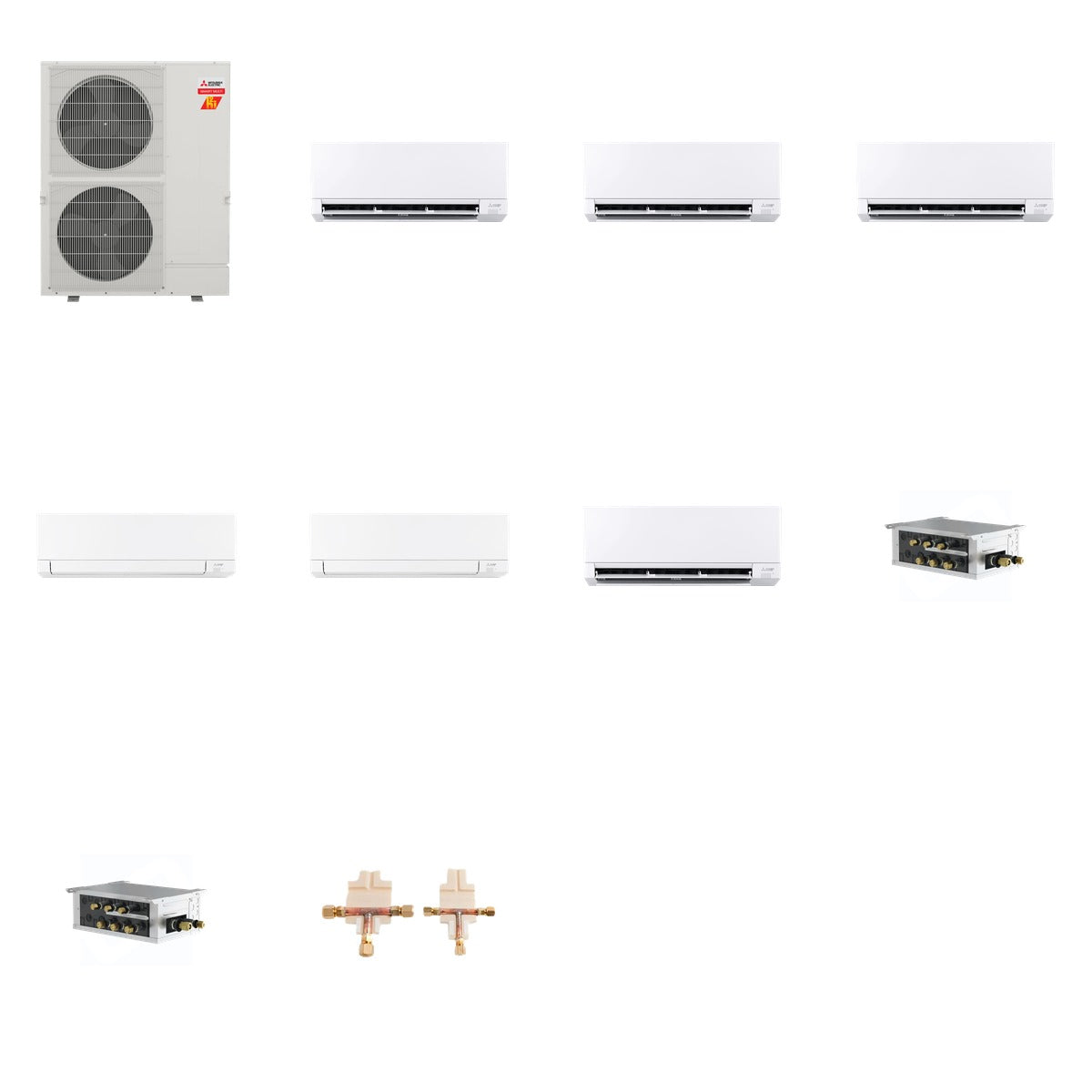

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - 6k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-GX15NL - 15k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX18NL - 18k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX24NL - 24k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)

Key Details

• Weight of Bundle: 384.1 lb (Mitsubishi 225 lb + Mitsubishi 66 lb + Mitsubishi 22 lb + Mitsubishi 28 lb + Mitsubishi 28 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Indoor Units: 6,000 to 24,000 BTU (MSZ-GX series)
• SEER2 Rating: Up to 28.4 (MSZ-GX series)
• Refrigerant Type: R454B
• Voltage: 208/230 Volts
• Sound Level: As low as 19 dB(A) (MSZ-GX series)
• Dimensions: Varies by unit (check individual specifications)

Use & Compatibility

This bundle is designed for use in both residential and commercial settings, providing efficient heating and cooling solutions for multiple zones. The components are compatible with Mitsubishi Electric's MXZ multi-zone outdoor units and can be configured to suit various indoor layouts, ensuring optimal comfort and energy efficiency.
