Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+15K+18K+18K

Description

This comprehensive HVAC bundle features essential components for creating an efficient and versatile multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, capable of supporting multiple indoor units while utilizing eco-friendly R454B refrigerant. Paired with three wall-mounted air handlers (MSZ-GX06NL, MSZ-GX15NL, and MSZ-GX18NL), this bundle offers a range of capacities to accommodate various room sizes and configurations. Additionally, the PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate optimal refrigerant distribution, ensuring each indoor unit operates at peak performance. The inclusion of the MSDD-50AR2-E branch pipe distribution kit further enhances system efficiency, making this bundle ideal for both residential and commercial applications.

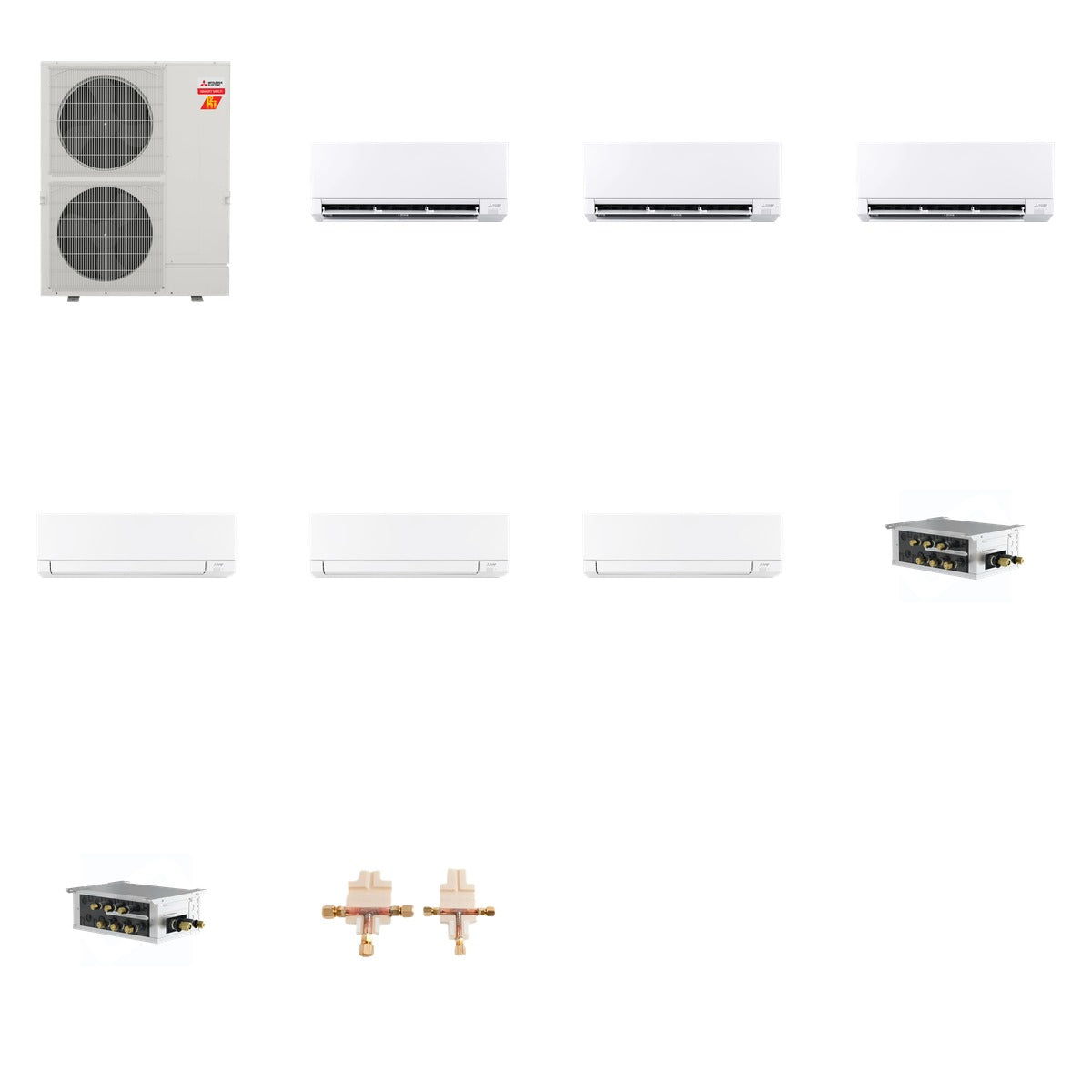

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - Mitsubishi Electric MSZ-GX06NL R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-GX15NL - Mitsubishi Electric MSZ-GX15NL R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX18NL - Mitsubishi Electric MSZ-GX18NL R454B 18k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 384.1 lb (Mitsubishi 225 lb + Mitsubishi 66 lb + Mitsubishi 22 lb + Mitsubishi 56 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: Up to 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: Up to 66,000 BTU (MXZ-SM60NL)
• Indoor Unit Capacities: 6,000 BTU (MSZ-GX06NL), 15,000 BTU (MSZ-GX15NL), 18,000 BTU (MSZ-GX18NL)
• Refrigerant Type: R454B
• Voltage: 208/230 Volts
• Sound Level: As low as 19 dB(A) (MSZ-GX06NL)
• Dimensions: Various (see individual units for specifics)
• Multi-Zone Compatibility: Yes

Use & Compatibility

This bundle is designed for efficient heating and cooling in both residential and commercial spaces. The outdoor unit connects seamlessly with the included indoor air handlers, allowing for customized climate control across multiple zones. The branch boxes and distribution kit ensure optimal refrigerant flow, making this system compatible with a variety of indoor configurations.
