Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+15K+15K+15K

Description

This comprehensive HVAC bundle includes essential components designed to create an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, capable of supporting up to eight indoor units. Complementing this are three wall-mounted air handlers (MSZ-GX06NL and MSZ-GX15NL) that provide tailored comfort for various spaces, along with two branch boxes (PAC-LMA50BC and PAC-LMA30BC) to manage refrigerant flow effectively. The MSDD-50AR2-E branch pipe distribution kit ensures optimal refrigerant distribution, enhancing system performance. Together, these components create a versatile and energy-efficient solution for both residential and commercial applications.

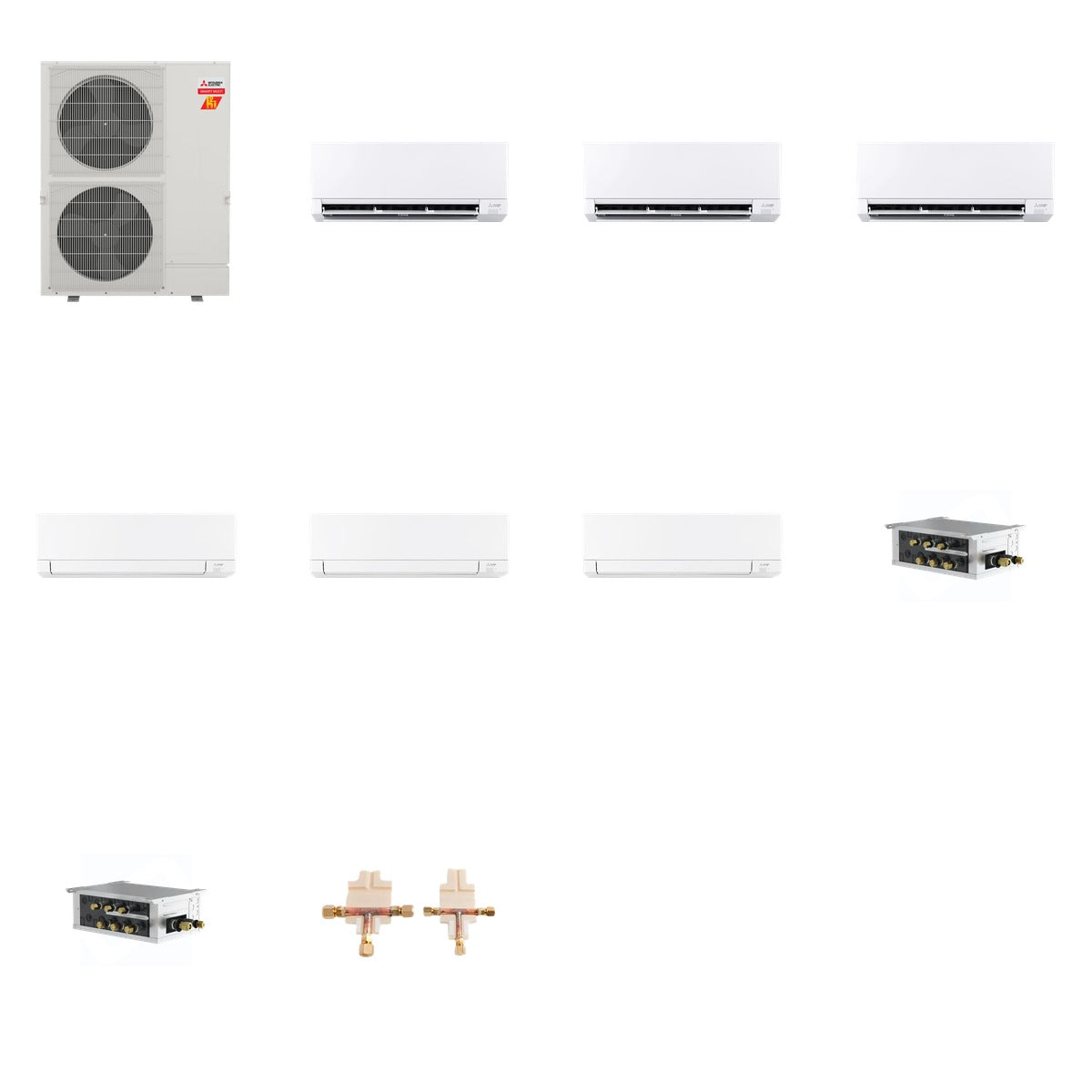

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-GX15NL - R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)

Key Details

• Weight of Bundle: 372.1 lb (Mitsubishi 225 lb + Mitsubishi 66 lb + Mitsubishi 66 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Air Handler Capacity: 6,000 BTU (MSZ-GX06NL), 15,000 BTU (MSZ-GX15NL)
• SEER2 Rating: Up to 28.4 (MSZ-GX06NL)
• Voltage: 208/230 Volts
• Material: Copper and Insulation (MSDD-50AR2-E)
• Sound Level: As low as 19 dB(A) (MSZ-GX06NL)
• Dimensions: Varies by unit, see specifications for details

Use & Compatibility

This bundle is ideal for creating a customizable multi-zone HVAC system, suitable for both residential and commercial environments. The outdoor unit connects seamlessly with the included wall-mounted air handlers, while the branch boxes and distribution kit ensure efficient refrigerant management. Compatible with Mitsubishi Electric's M-Series and CITY MULTI systems, this setup provides reliable heating and cooling tailored to your specific needs.
