Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+12K+12K+15K

Description

This comprehensive HVAC bundle includes essential components for creating a highly efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, capable of supporting up to eight indoor units. Paired with three wall-mounted air handlers (MSZ-GX06NL, MSZ-GX12NL, and MSZ-GX15NL), this setup provides flexible climate control for various room sizes. Additionally, the PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate optimal refrigerant distribution, while the MSDD-50AR2-E branch pipe kit ensures seamless connections. Together, these products deliver a reliable, energy-efficient solution for both residential and commercial applications.

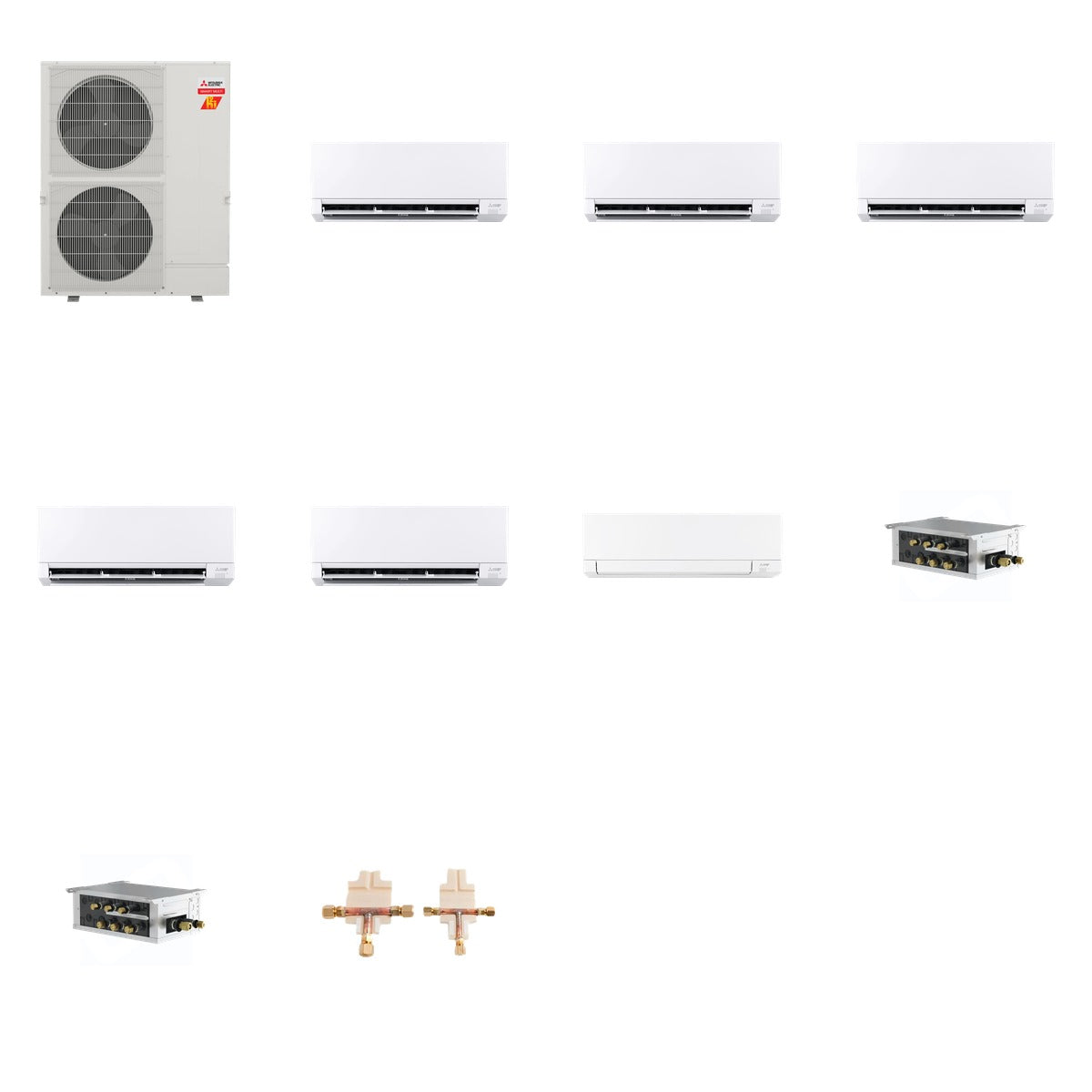

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - Mitsubishi Electric MSZ-GX06NL R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-GX12NL - Mitsubishi Electric MSZ-GX12NL R454B 12k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-GX15NL - Mitsubishi Electric MSZ-GX15NL R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 372.1 lb (Mitsubishi 225 lb + Mitsubishi 66 lb + Mitsubishi 44 lb + Mitsubishi 22 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU Cooling, 66,000 BTU Heating, SEER2 up to 23
• MSZ-GX06NL: 6,000 BTU Cooling, 7,200 BTU Heating, SEER2 up to 28.4
• MSZ-GX12NL: 12,000 BTU Cooling, 14,400 BTU Heating, SEER2 up to 28.4
• MSZ-GX15NL: 15,000 BTU Cooling, 18,000 BTU Heating, SEER2 up to 28.4
• PAC-LMA50BC: 5 ports, compatible with MXZ models, 208/230V
• PAC-LMA30BC: 3 ports, compatible with R454B, 208/230V
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B

Use & Compatibility

This bundle is designed for use in both residential and commercial HVAC systems, providing efficient heating and cooling through multi-zone configurations. The outdoor unit connects seamlessly with multiple indoor air handlers, while the branch boxes and distribution kit ensure balanced refrigerant flow for optimal performance.
