Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+15K+15K+15K+18K

Description

This comprehensive Mitsubishi Electric HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial applications. Featuring a powerful MXZ-SM60NL multi-zone heat pump outdoor unit, this package includes multiple wall-mounted air handlers (MSZ-GX06NL, MSZ-GX15NL, and MSZ-GX18NL) that cater to different room sizes and configurations. The inclusion of branch boxes (PAC-LMA50BC and PAC-LMA30BC) ensures optimal refrigerant distribution, while the MSDD-50AR2-E branch pipe distribution kit enhances installation efficiency. Together, these components create a versatile and effective climate control system tailored to meet diverse needs.

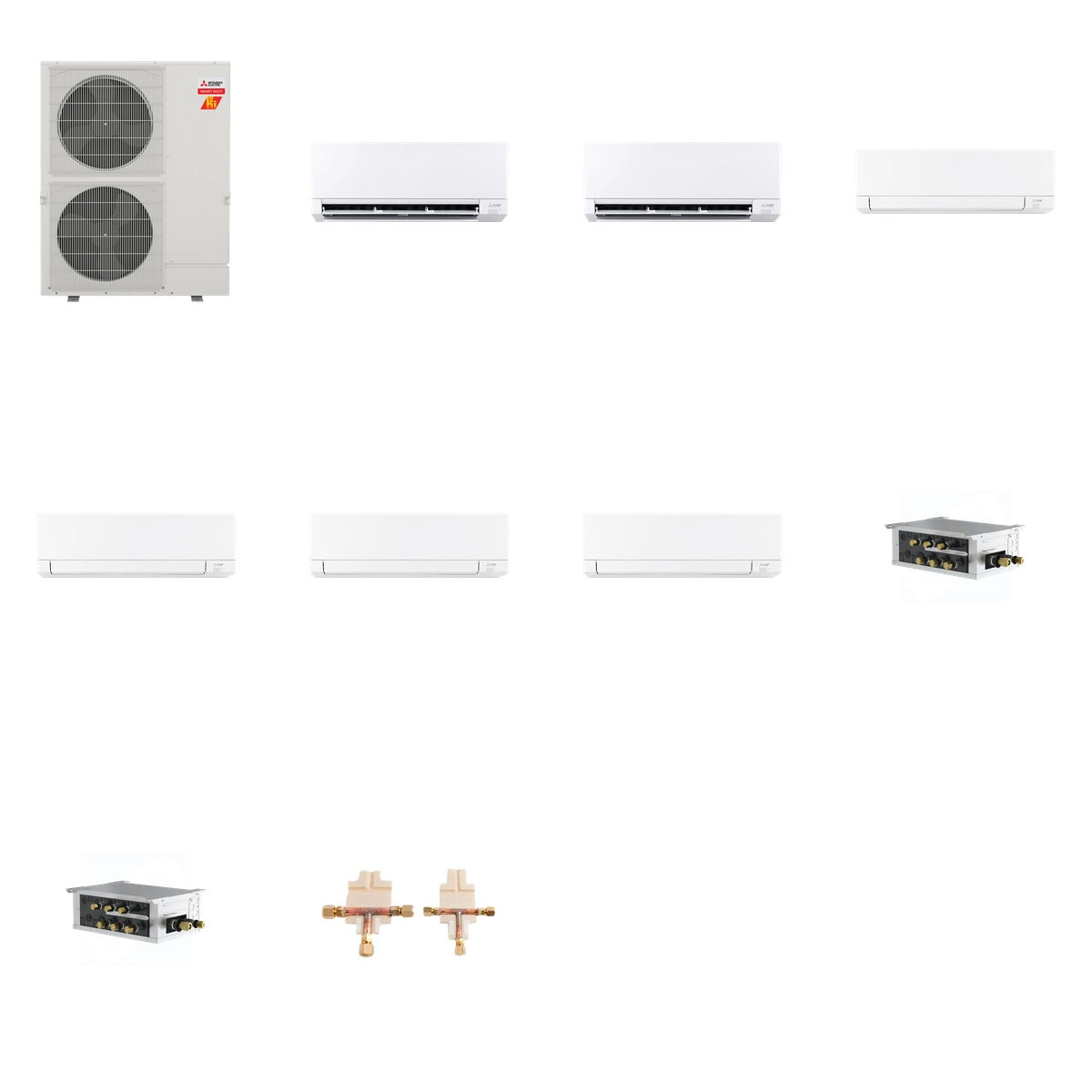

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-GX15NL - R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-GX18NL - R454B 18k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 378.1 lb (Mitsubishi 225 lb + Mitsubishi 44 lb + Mitsubishi 66 lb + Mitsubishi 28 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-ton inverter condenser
• MSZ-GX06NL: 6,000 BTU, SEER2 up to 28.4, Wi-Fi enabled
• MSZ-GX15NL: 15,000 BTU, SEER2 up to 22.5, advanced filtration system
• MSZ-GX18NL: 18,000 BTU, SEER2 22.5, built-in Wi-Fi
• PAC-LMA50BC: 5 ports, 208/230V, compatible with MXZ model
• PAC-LMA30BC: 3 ports, 208/230V, ensures balanced refrigerant flow
• MSDD-50AR2-E: Flare connection, compatible with R-410A and R-454B

Use & Compatibility

This bundle is ideal for multi-zone HVAC systems, providing efficient heating and cooling for various indoor spaces. The outdoor unit connects seamlessly with the included wall-mounted air handlers, making it suitable for both residential and commercial applications. The branch boxes and distribution kit ensure optimal refrigerant flow, enhancing system performance and reliability.
