Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+12K+12K+18K+18K

Description

This comprehensive HVAC bundle includes everything you need for a multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, delivering 60,000 BTU capacity to efficiently manage multiple indoor units. Paired with two MSZ-GX06NL, two MSZ-GX12NL, and two MSZ-GX18NL wall-mounted air handlers, this setup ensures optimal comfort across various room sizes. The PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe kit ensures efficient refrigerant flow. Together, these components create a versatile and energy-efficient climate control solution for both residential and commercial applications.

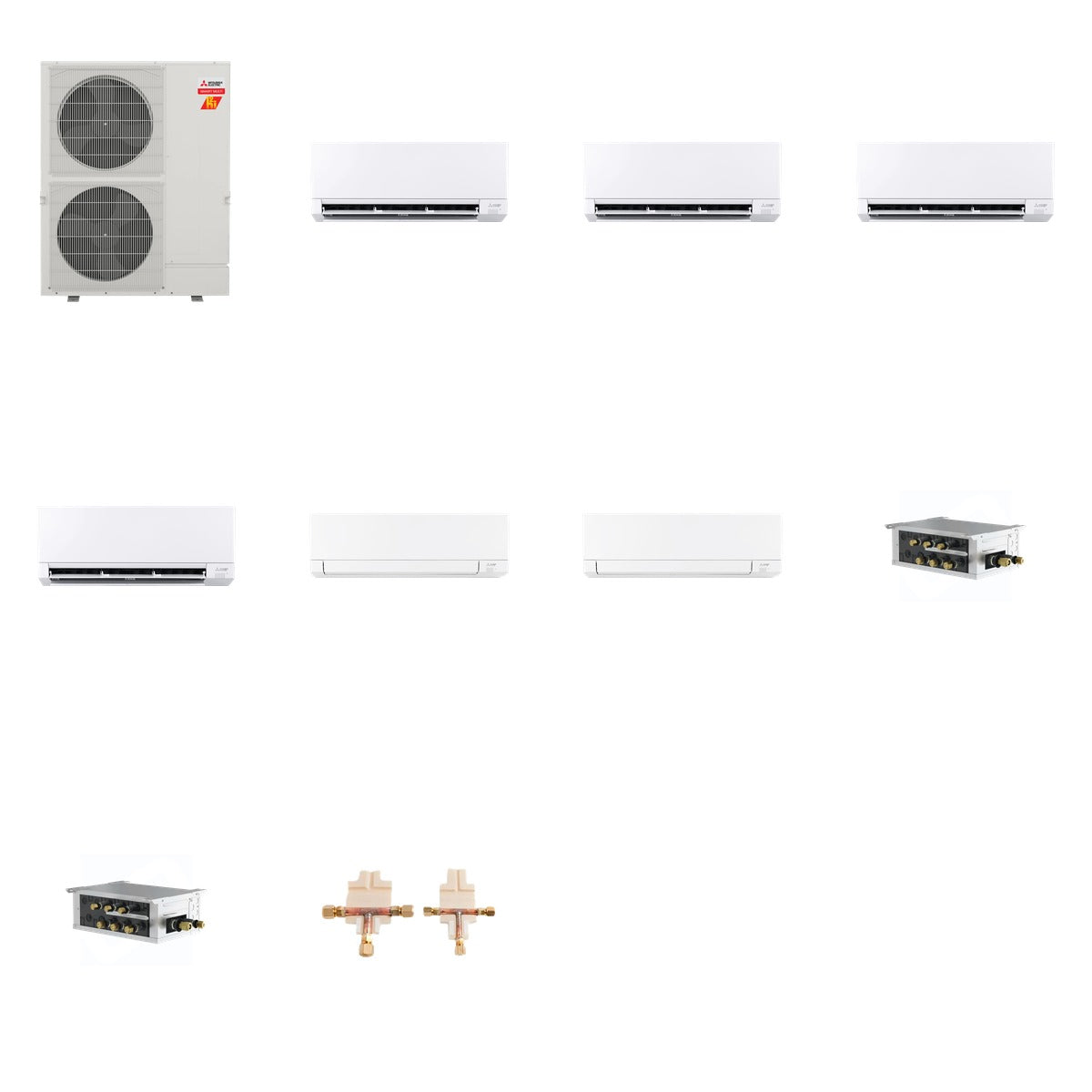

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-GX12NL - R454B 12k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-GX18NL - R454B 18k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 384.1 lb (Mitsubishi 225 lb + Mitsubishi 44 lb + Mitsubishi 44 lb + Mitsubishi 56 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Indoor Unit Cooling BTU: 6,000 (MSZ-GX06NL), 12,000 (MSZ-GX12NL), 18,000 (MSZ-GX18NL)
• SEER2: Up to 28.4 (MSZ-GX series)
• Voltage: 208/230 Volts
• Material: Copper (MSDD-50AR2-E)
• Dimensions: Varies by unit (see individual specifications)
• Sound Level: As low as 19 dB(A) (MSZ-GX series)

Use & Compatibility

This bundle is designed for multi-zone heating and cooling applications, making it suitable for both residential and commercial environments. The outdoor unit can connect to various indoor air handlers, allowing for customized climate control in different spaces. The branch boxes and distribution kit ensure optimal refrigerant flow and temperature management across all connected units.
