Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+12K+12K+12K+18K

Description

This comprehensive bundle is designed for efficient heating and cooling in multi-zone environments, combining advanced Mitsubishi Electric technology to optimize comfort and energy use. The centerpiece is the Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit, capable of connecting to various indoor units for customized climate control. Complementing this are the MSZ-GX06NL, MSZ-GX12NL, and MSZ-GX18NL wall-mounted air handlers, which provide versatile heating and cooling solutions for different room sizes. The PAC-LMA50BC and PAC-LMA30BC branch boxes ensure seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe distribution kit enhances installation efficiency. Together, these components create a robust system that meets diverse residential and commercial needs.

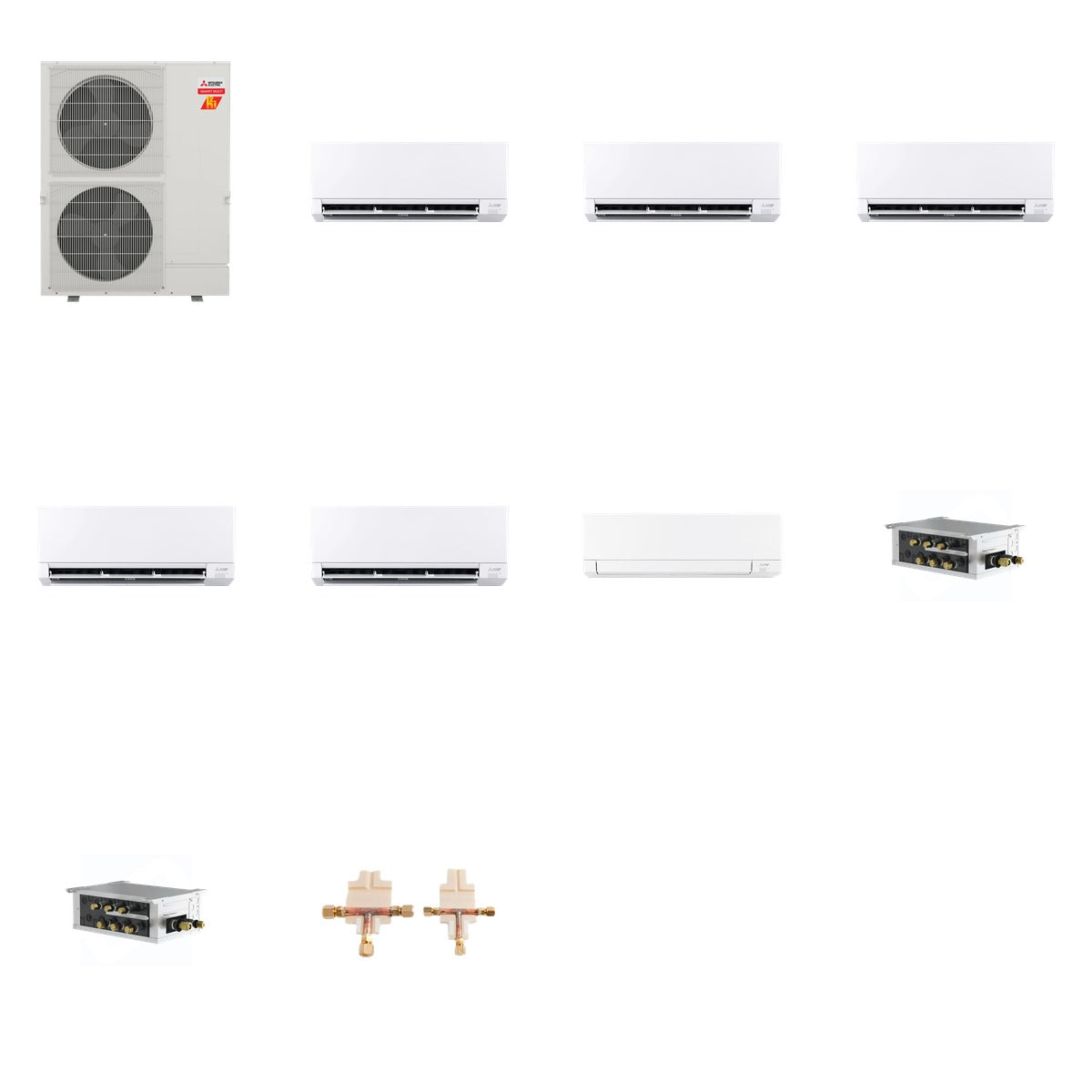

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-GX12NL - R454B 12k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-GX18NL - R454B 18k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 378.1 lb (Mitsubishi 225 lb + Mitsubishi 44 lb + Mitsubishi 66 lb + Mitsubishi 28 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: Up to 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: Up to 66,000 BTU (MXZ-SM60NL)
• Indoor Units: 6,000 BTU to 18,000 BTU (MSZ-GX Series)
• SEER2: Up to 28.4 (MSZ-GX Series)
• Voltage: 208/230 Volts
• Refrigerant: R454B
• Sound Level: As low as 19 dB(A) (MSZ-GX Series)
• Branch Box Ports: 3 or 5 (PAC-LMA30BC, PAC-LMA50BC)

Use & Compatibility

This bundle is ideal for both residential and commercial HVAC applications, providing efficient heating and cooling across multiple zones. The outdoor unit is compatible with various Mitsubishi Electric indoor units, allowing for flexible configurations tailored to specific space requirements. The branch boxes and distribution kit facilitate optimal refrigerant management, ensuring reliable performance and comfort.
