Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+12K+12K+12K+15K

Description

This comprehensive bundle includes everything you need to create a highly efficient multi-zone HVAC system. The Mitsubishi Electric MXZ-SM60NL outdoor heat pump unit serves as the backbone, providing powerful heating and cooling capabilities. Paired with multiple wall-mounted air handlers (MSZ-GX06NL, MSZ-GX12NL, and MSZ-GX15NL), this setup ensures optimal comfort across different spaces. The included branch boxes (PAC-LMA50BC and PAC-LMA30BC) facilitate efficient refrigerant distribution, while the MSDD-50AR2-E branch pipe distribution kit ensures seamless connections. Together, these components deliver a customizable, energy-efficient solution for both residential and commercial applications.

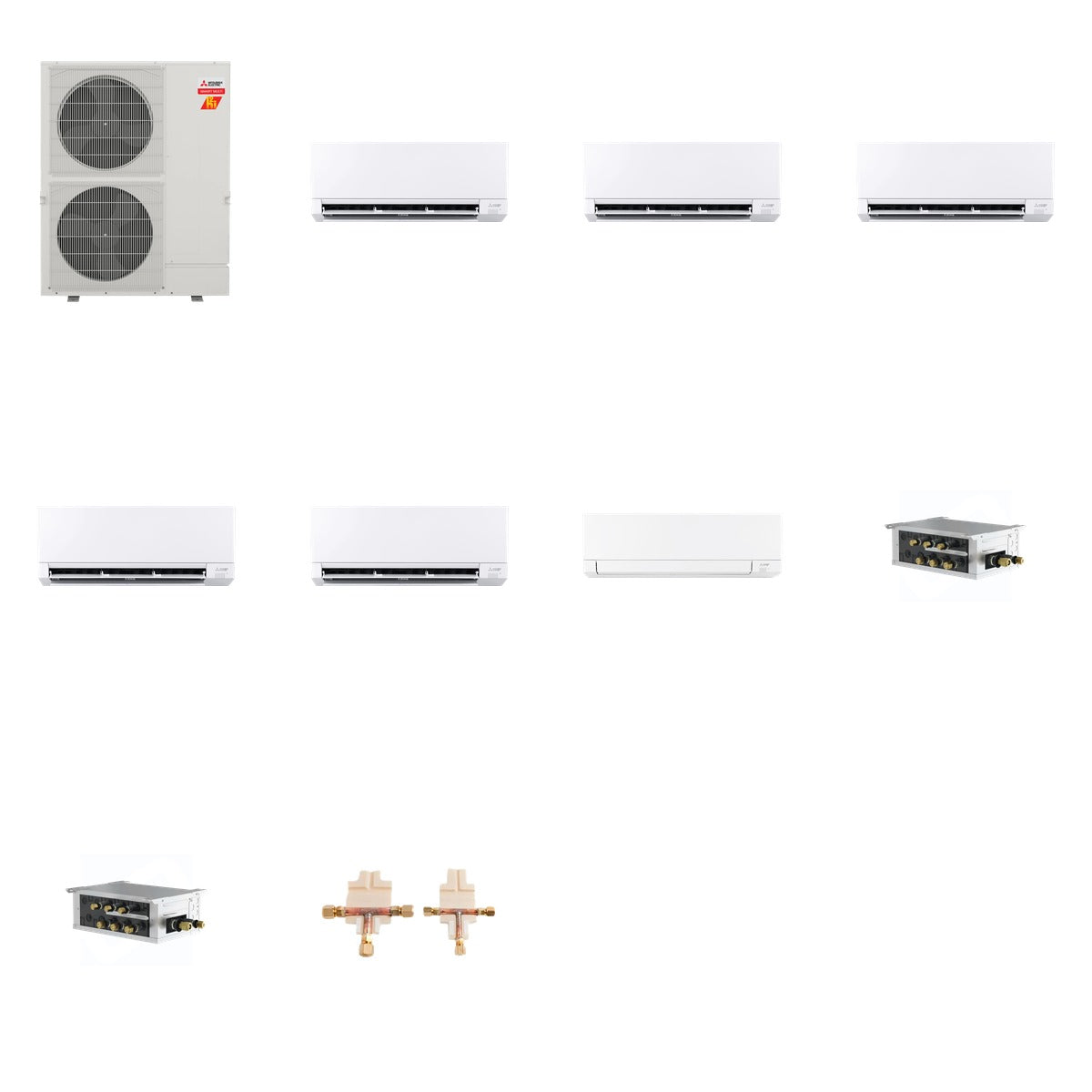

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - Mitsubishi Electric MSZ-GX06NL R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-GX12NL - Mitsubishi Electric MSZ-GX12NL R454B 12k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-GX15NL - Mitsubishi Electric MSZ-GX15NL R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 372.1 lb (Mitsubishi 225 lb + Mitsubishi 44 lb + Mitsubishi 66 lb + Mitsubishi 22 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Wall Mount Air Handlers: 6,000 BTU (MSZ-GX06NL), 12,000 BTU (MSZ-GX12NL), 15,000 BTU (MSZ-GX15NL)
• SEER2 Rating: Up to 28.4 (MSZ-GX series)
• Refrigerant Type: R454B
• Voltage: 208/230 Volts
• Sound Level: As low as 19 dB(A) (MSZ-GX series)
• Dimensions: Varies by unit

Use & Compatibility

This bundle is designed for use in multi-zone heating and cooling systems, ideal for both residential and commercial environments. The outdoor unit connects seamlessly with the wall-mounted air handlers, providing flexibility in installation and operation. The branch boxes and distribution kit ensure efficient refrigerant flow, making this setup compatible with various Mitsubishi Electric indoor units.
