Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Mini Split Heat Pump System - 6K+12K+12K+12K+18K+18K

Description

This comprehensive HVAC bundle features a selection of high-performance Mitsubishi Electric products designed to provide efficient heating and cooling for multi-zone applications. The MXZ-SM60NL outdoor unit serves as the powerhouse, capable of supporting up to eight indoor units, while the MSZ-GX series wall-mounted air handlers (6k, 12k, and 18k BTU) ensure optimal comfort across various room sizes. The included branch boxes facilitate seamless refrigerant distribution, making this bundle ideal for both residential and commercial installations.

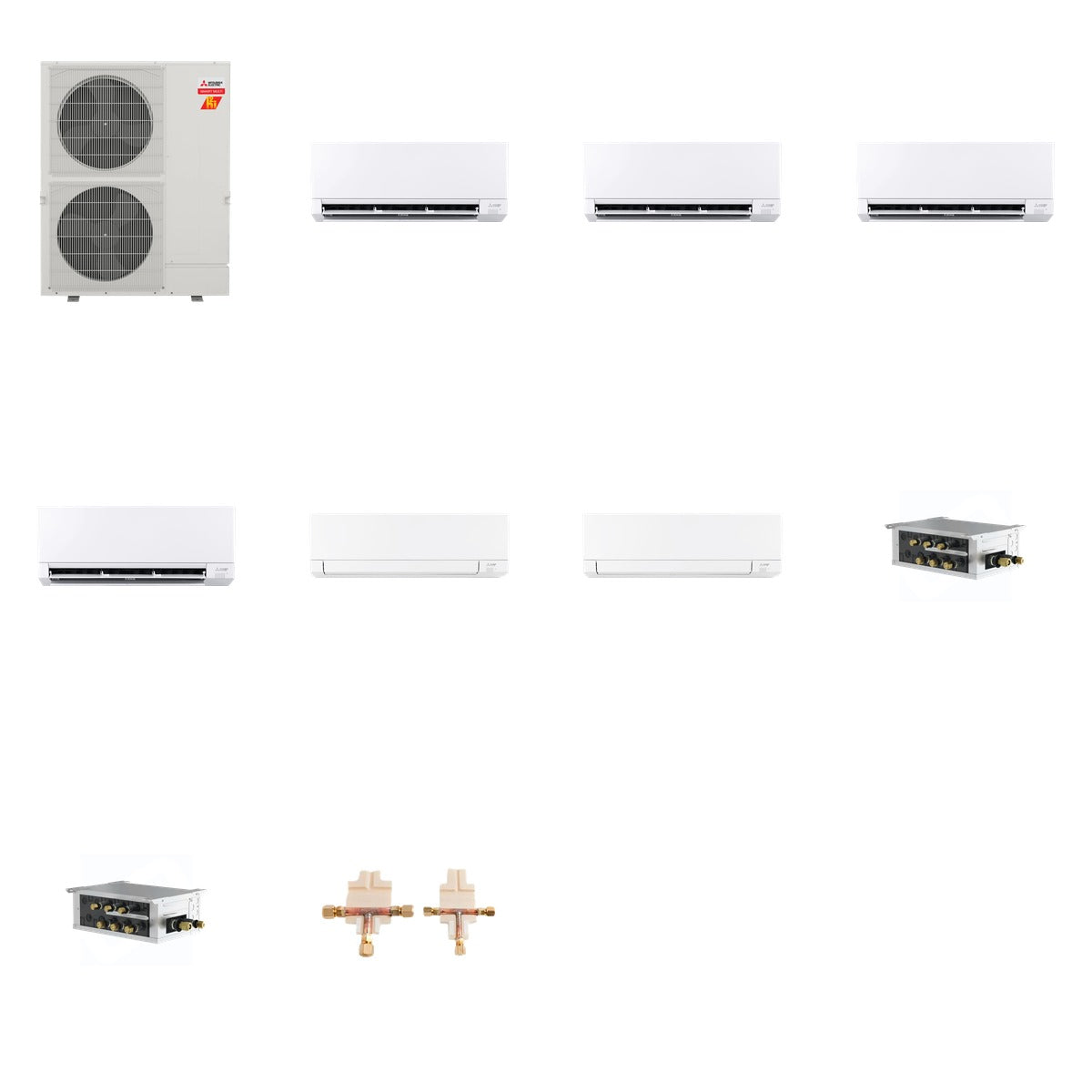

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX12NL - R454B 12k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-GX18NL - R454B 18k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 384.1 lb (Mitsubishi 225 lb + Mitsubishi 22 lb + Mitsubishi 66 lb + Mitsubishi 56 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL), 6,000 BTU (MSZ-GX06NL), 12,000 BTU (MSZ-GX12NL), 18,000 BTU (MSZ-GX18NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL), 7,200 BTU (MSZ-GX06NL), 14,400 BTU (MSZ-GX12NL), 19,000 BTU (MSZ-GX18NL)
• SEER2: Up to 28.4 (MSZ-GX06NL, MSZ-GX12NL), 22.5 (MSZ-GX18NL)
• Voltage: 208/230 Volts
• Material: High-grade copper and insulation for branch pipes
• Dimensions: Various (see individual units for specifics)
• Noise Level: As low as 19 dB(A) (MSZ-GX series)

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, making it suitable for both residential and commercial applications. The outdoor unit connects seamlessly with the wall-mounted air handlers, providing customized heating and cooling solutions. The branch boxes and distribution kit ensure efficient refrigerant management, enhancing system performance and comfort.
