Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Mini Split Heat Pump System - 6K+12K+12K+12K+15K+15K

Description

This comprehensive bundle features essential components for creating an efficient multi-zone HVAC system. The Mitsubishi Electric MXZ-SM60NL outdoor heat pump unit serves as the backbone, providing robust heating and cooling capabilities for up to eight indoor zones. Paired with three wall-mounted air handlers (MSZ-GX06NL, MSZ-GX12NL, and MSZ-GX15NL), this bundle ensures optimal climate control across various room sizes. The inclusion of branch boxes (PAC-LMA50BC and PAC-LMA30BC) allows for seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe distribution kit guarantees balanced performance. Together, these products deliver a complete solution for both residential and commercial applications.

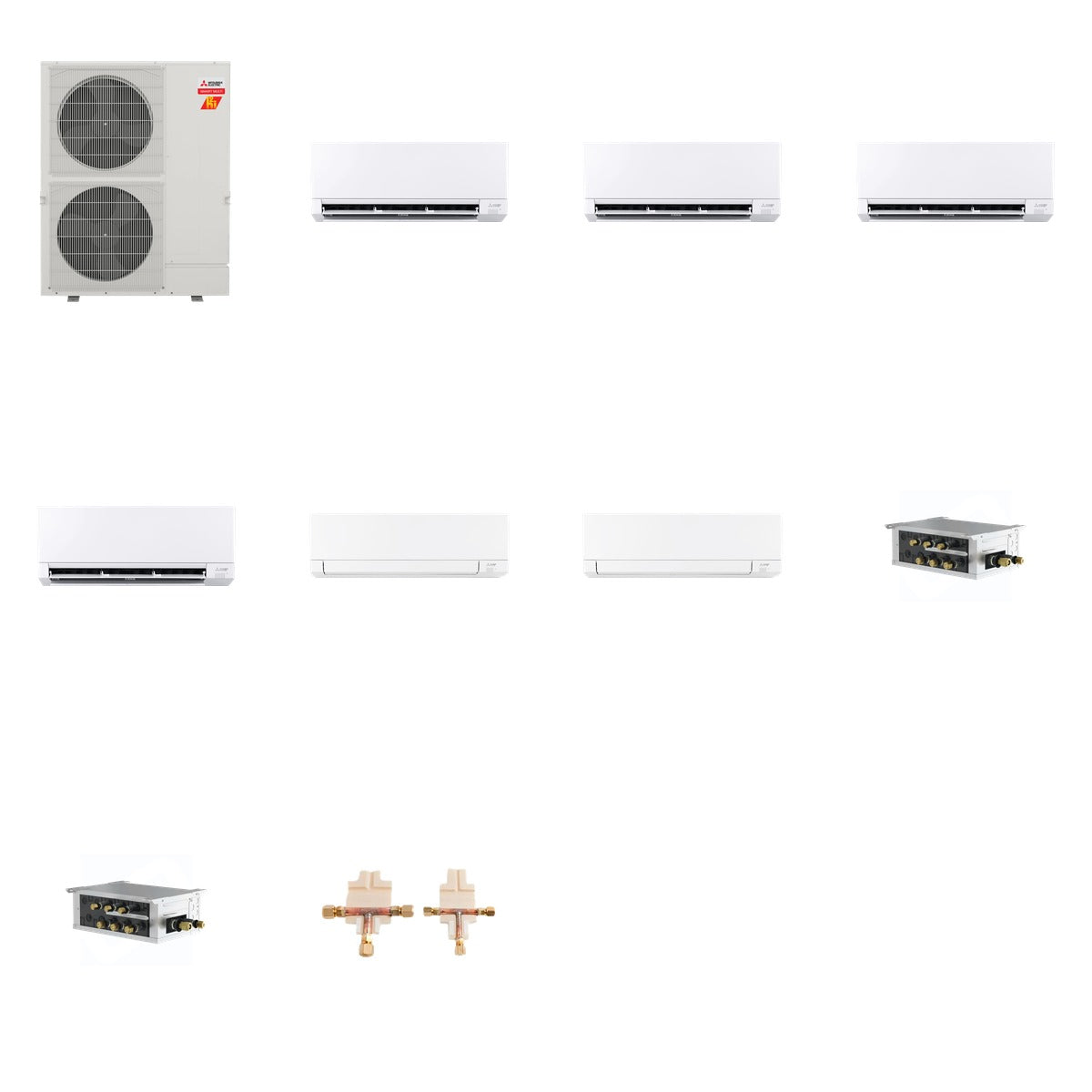

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - 6k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX12NL - 12k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-GX15NL - 15k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)

Key Details

• Weight of Bundle: 372.1 lb (Mitsubishi 225 lb + Mitsubishi 22 lb + Mitsubishi 66 lb + Mitsubishi 44 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-Ton capacity
• MSZ-GX06NL: 6,000 BTU, SEER2 up to 28.4, 0.5 Ton capacity
• MSZ-GX12NL: 12,000 BTU, SEER2 up to 28.4, 1 Ton capacity
• MSZ-GX15NL: 15,000 BTU, SEER2 up to 28.4, 1.25 Ton capacity
• PAC-LMA50BC: 5 ports, 208/230V
• PAC-LMA30BC: 3 ports, 208/230V
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, making it ideal for both residential and commercial applications. The outdoor unit connects seamlessly with the indoor air handlers, while the branch boxes and distribution kit ensure efficient refrigerant management and optimal temperature control across multiple zones.
