Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 9K+9K+9K+9K+9K+15K

Description

This comprehensive HVAC bundle includes essential components for a multi-zone heating and cooling system, designed to provide optimal comfort and efficiency in both residential and commercial settings. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, capable of connecting to multiple indoor units for customized climate control. Complementing this are the MSZ-FX09NL and MSZ-FX15NL wall-mounted units, which offer advanced filtration and smart technology for enhanced indoor air quality and convenience. The PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate efficient refrigerant distribution, while the MSDD-50AR2-E branch pipe distribution kit ensures balanced performance across all connected units. Together, these products create a versatile and efficient HVAC solution.

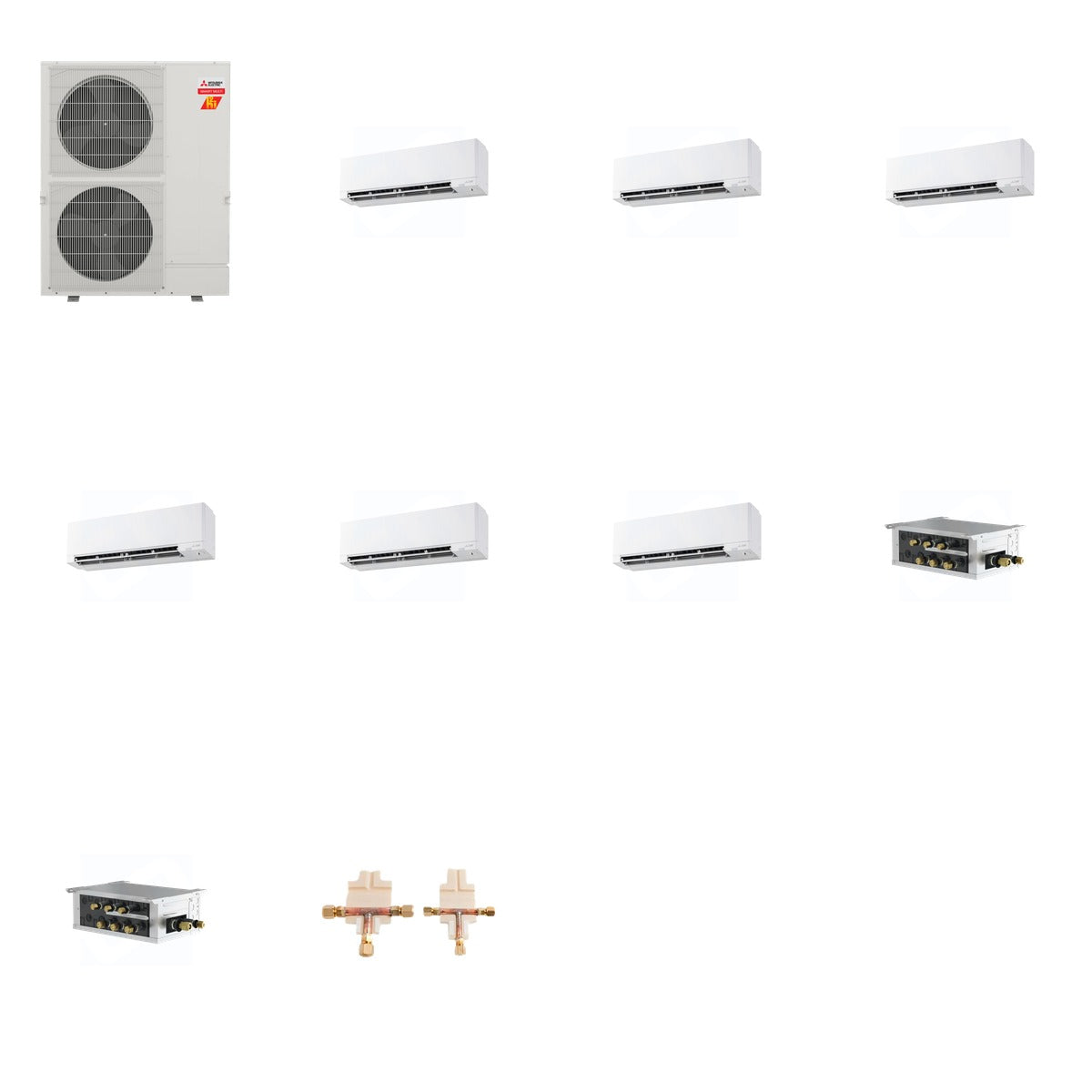

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x5)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 458.5 lb (Mitsubishi 225 lb + Mitsubishi 182 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL), 9,000 BTU (MSZ-FX09NL), 15,000 BTU (MSZ-FX15NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL), 12,000 BTU (MSZ-FX09NL), 18,000 BTU (MSZ-FX15NL)
• SEER2 Rating: Up to 23 (MXZ-SM60NL), Up to 20 (MSZ-FX15NL)
• Refrigerant Type: R-454B
• Voltage: 208/230 Volts
• Dimensions: 41-11/32" W x 13" D x 52-11/16" H (MXZ-SM60NL), 39.27" W x 9.75" D x 12" H (MSZ-FX09NL, MSZ-FX15NL)
• Sound Level: As low as 20 dB(A) (MSZ-FX09NL), 49 dB(A) (MSZ-FX15NL)

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling for various indoor spaces. The outdoor unit is compatible with M-Series, P-Series, and CITY MULTI indoor units, while the wall-mounted units are suitable for both single-zone and multi-zone applications. The branch boxes and distribution kit ensure optimal refrigerant flow and temperature maintenance across all connected indoor units.
