Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 9K+9K+9K+9K+18K+18K

Description

This comprehensive HVAC bundle features essential components designed for Mitsubishi Electric multi-zone systems, ensuring efficient heating and cooling for both residential and commercial applications. The bundle includes a powerful outdoor heat pump, multiple indoor air handlers, and necessary branch boxes for optimal refrigerant flow management. Each item is engineered for compatibility, making it easy to set up a customized climate control solution that meets your specific needs. With advanced filtration and smart technology integration, this bundle not only enhances comfort but also promotes energy efficiency.

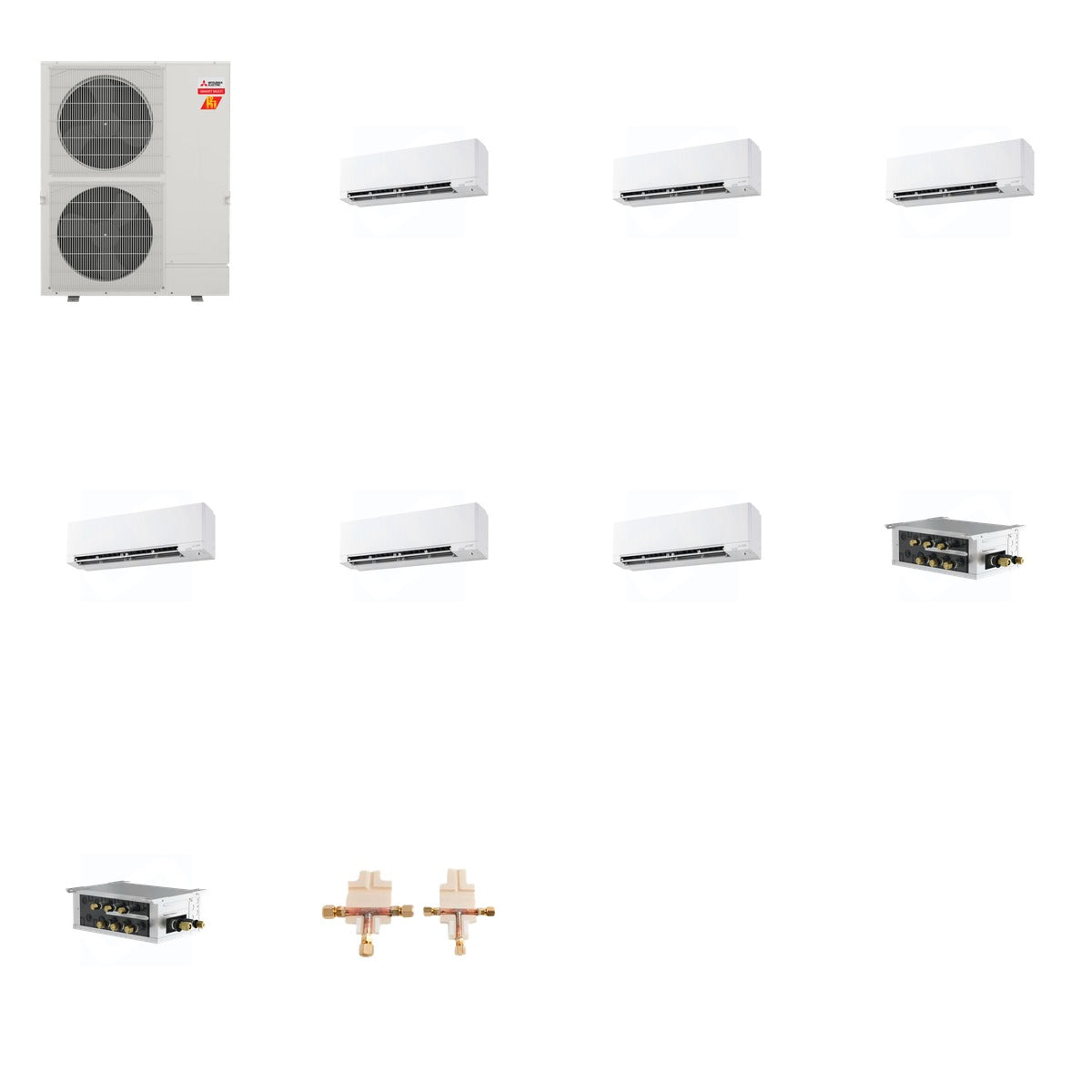

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-FX18NL - Mitsubishi Electric MSZ-FX18NL FX-Series Wall Mounted Unit 18k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 458.5 lb (Mitsubishi 225 lb + Mitsubishi 145.6 lb + Mitsubishi 72.8 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Outdoor Unit Capacity: 60,000 BTU
• Indoor Unit Capacities: 9,000 BTU (x4), 18,000 BTU (x2)
• SEER2 Rating: Up to 23
• Refrigerant Type: R-454B
• Voltage: 208/230 Volts
• Sound Level: As low as 20 dB(A) for indoor units
• Branch Box Ports: 5 (PAC-LMA50BC), 3 (PAC-LMA30BC)
• Material: Copper with thermal insulation for branch pipe kit

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling across various indoor spaces. The outdoor unit connects seamlessly with the included wall-mounted air handlers and branch boxes, allowing for flexible installation and optimal refrigerant distribution. Ideal for both residential and commercial environments, this setup ensures consistent comfort and energy efficiency.
