Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 9K+9K+9K+9K+15K+18K

Description

This comprehensive Mitsubishi Electric HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial spaces. The bundle includes a powerful MXZ-SM60NL multi-zone heat pump outdoor unit, which can connect to multiple indoor units for customized climate control. Complementing this outdoor unit are four wall-mounted air handlers (MSZ-FX09NL, MSZ-FX15NL, MSZ-FX18NL) that deliver exceptional performance with advanced filtration and smart technology features. Additionally, the package includes essential branch boxes (PAC-LMA30BC and PAC-LMA50BC) and a distribution kit (MSDD-50AR2-E) to ensure optimal refrigerant flow and system efficiency. Together, these components create a versatile and high-performing HVAC system tailored to meet diverse heating and cooling needs.

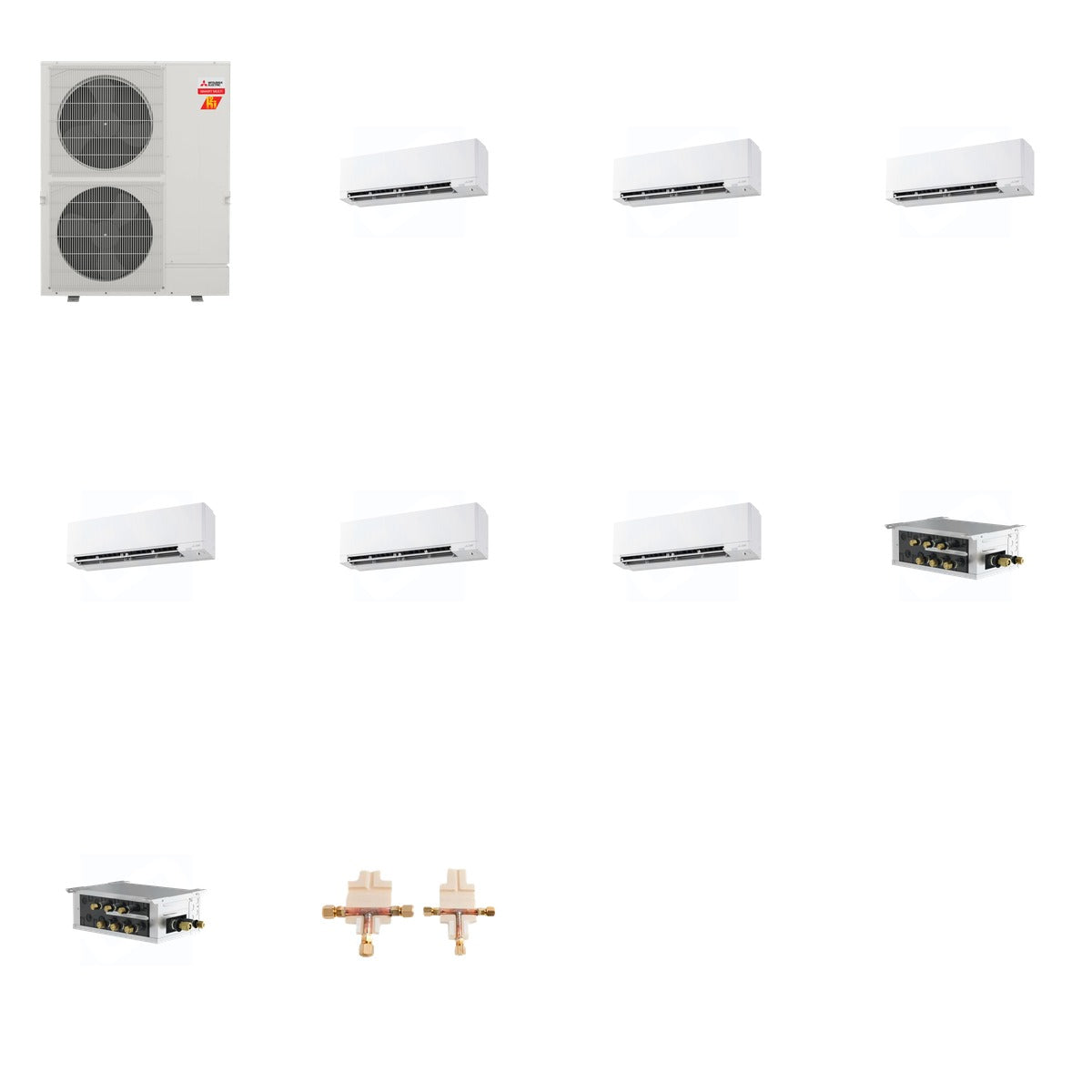

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - FX-Series Wall Mounted Unit 9k BTU (Qty x4)
• MITSUBISHI ELECTRIC MSZ-FX15NL - FX-Series Wall Mounted Unit 15k BTU (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX18NL - FX-Series Wall Mounted Unit 18k BTU (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)

Key Details

• Weight of Bundle: 458.5 lb (Mitsubishi 225 lb + Mitsubishi 145.6 lb + Mitsubishi 36.4 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU Cooling, 66,000 BTU Heating, SEER2 up to 23
• MSZ-FX09NL: 9,000 BTU Cooling, 12,000 BTU Heating, 208/230V
• MSZ-FX15NL: 15,000 BTU Cooling, 18,000 BTU Heating, SEER2 up to 20
• MSZ-FX18NL: 18,000 BTU Cooling, 17,000 BTU Heating, SEER up to 25.5
• PAC-LMA50BC: 5 Ports, 208/230V, 60Hz
• PAC-LMA30BC: 3 Ports, 208/230V, 60Hz
• MSDD-50AR2-E: Flare Connection, Oxygen-Free Copper, R-410A/R-454B Compatible

Use & Compatibility

This bundle is ideal for multi-zone HVAC applications, providing efficient heating and cooling for various indoor environments. The outdoor unit is compatible with M-Series and CITY MULTI indoor units, while the included branch boxes and distribution kit facilitate seamless refrigerant management across multiple zones. Perfect for both residential and commercial installations, this system ensures optimal comfort and energy efficiency.
