Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 9K+9K+9K+9K+15K+15K

Description

This comprehensive HVAC bundle features a selection of high-quality Mitsubishi Electric products designed to create an efficient multi-zone heating and cooling system. The MXZ-SM60NL outdoor heat pump unit serves as the powerhouse, capable of supporting multiple indoor units while utilizing eco-friendly R-454B refrigerant. Paired with the MSZ-FX09NL and MSZ-FX15NL wall-mounted air handlers, this bundle ensures optimal comfort and air quality in various residential spaces. The included branch boxes, PAC-LMA50BC and PAC-LMA30BC, facilitate seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe kit enhances system performance and installation efficiency. Together, these components provide a complete solution for both residential and commercial HVAC needs.

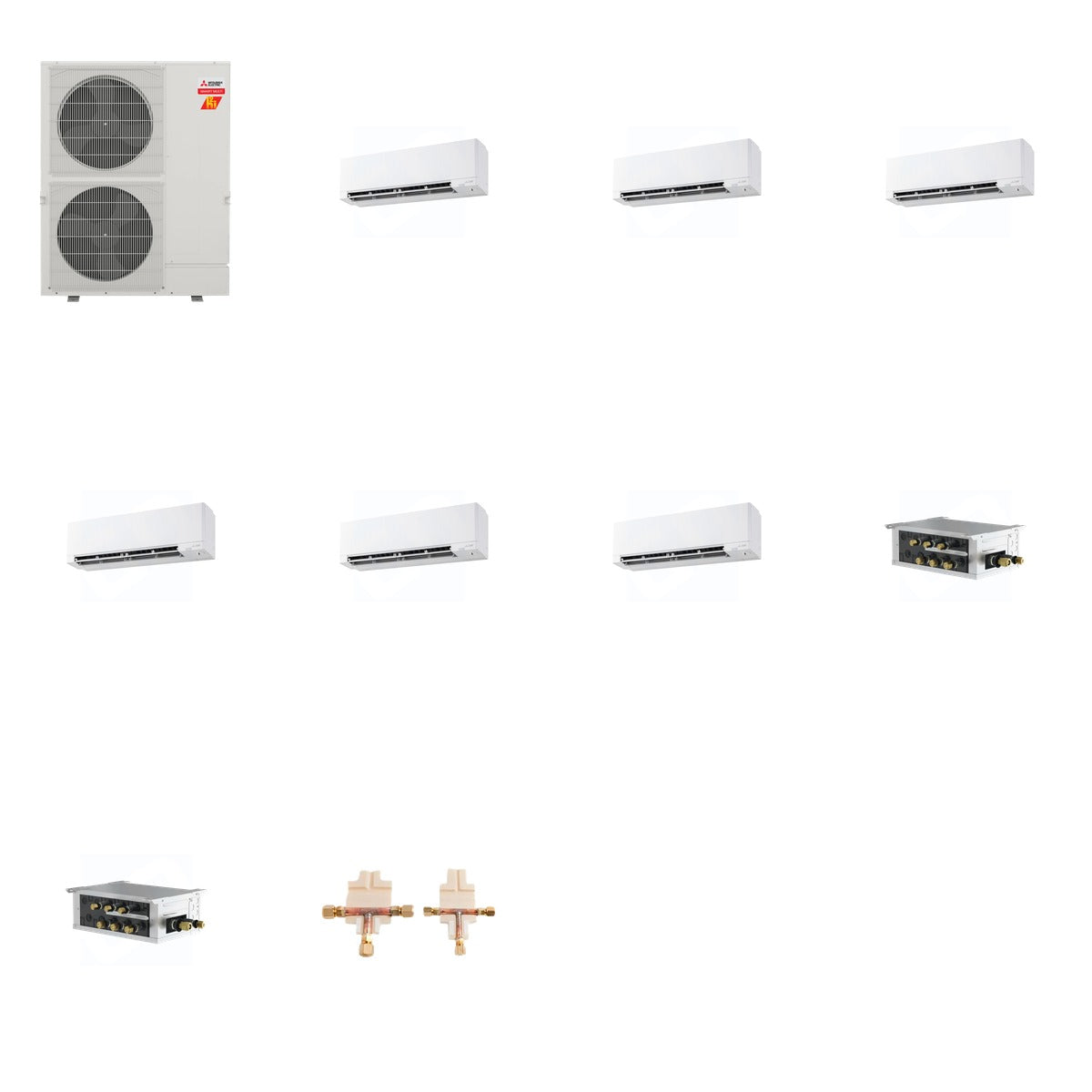

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 458.5 lb (Mitsubishi 225 lb + Mitsubishi 145.6 lb + Mitsubishi 72.8 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Indoor Units: 4 x 9,000 BTU (MSZ-FX09NL), 2 x 15,000 BTU (MSZ-FX15NL)
• Refrigerant Type: R-454B
• Voltage: 208/230V
• Sound Level: As low as 20 dB(A) (MSZ-FX09NL)
• Dimensions: 41-11/32" W x 13" D x 52-11/16" H (MXZ-SM60NL)
• Branch Box Ports: 5 (PAC-LMA50BC), 3 (PAC-LMA30BC)
• Material: Copper with thermal insulation (MSDD-50AR2-E)

Use & Compatibility

This bundle is ideal for both residential and commercial applications, providing efficient heating and cooling solutions for various indoor environments. The outdoor unit is compatible with M-Series and P-Series indoor units, while the branch boxes ensure optimal refrigerant flow to multiple zones. The included distribution kit simplifies installation and enhances system performance, making it a perfect choice for multi-zone HVAC setups.
