Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 9K+9K+9K+9K+12K+15K

Description

This comprehensive HVAC bundle features a selection of high-performance Mitsubishi Electric products designed to optimize heating and cooling in both residential and commercial settings. The centerpiece of this bundle is the MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit, which connects seamlessly to multiple indoor units, allowing for customized climate control across various zones. Accompanying this outdoor unit are four wall-mounted air handlers (MSZ-FX09NL, MSZ-FX12NL, MSZ-FX15NL) that provide efficient heating and cooling with advanced filtration and smart technology. Additionally, the bundle includes essential branch boxes (PAC-LMA50BC and PAC-LMA30BC) and a branch pipe distribution kit (MSDD-50AR2-E) to ensure optimal refrigerant flow and system performance.

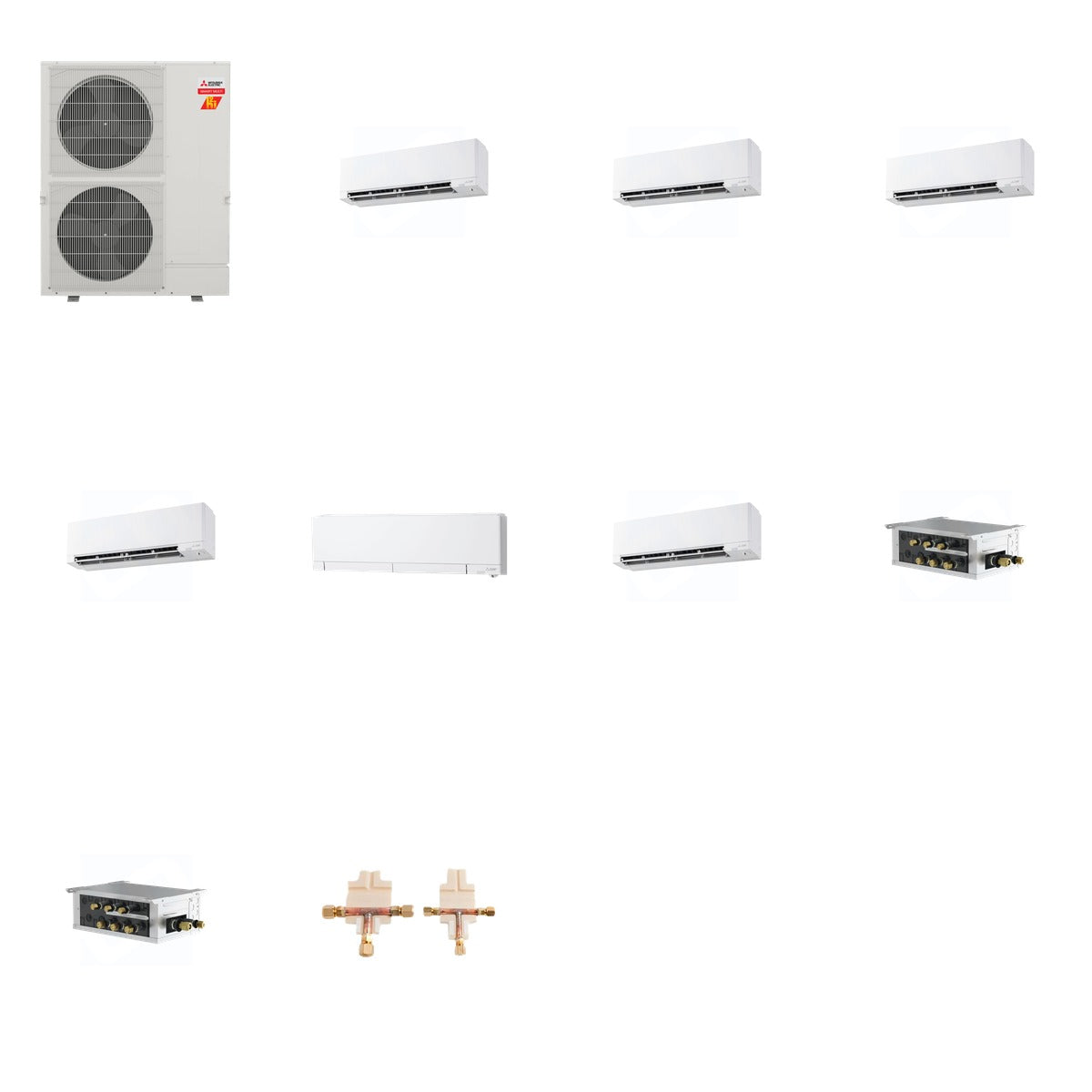

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-FX12NL - FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX15NL - FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 458.5 lb (Mitsubishi 225 lb + Mitsubishi 145.6 lb + Mitsubishi 36.4 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU Cooling Capacity, 66,000 BTU Heating Capacity, SEER2 up to 23
• MSZ-FX09NL: 9,000 BTU Cooling, 12,000 BTU Heating, Minimum Sound Level 20 dB
• MSZ-FX12NL: 12,000 BTU Cooling, 13,200 BTU Heating, SEER2 up to 35
• MSZ-FX15NL: 15,000 BTU Cooling, 18,000 BTU Heating, SEER2 up to 20
• PAC-LMA50BC: 5 Ports, Voltage 208/230V
• PAC-LMA30BC: 3 Ports, Voltage 208/230V
• MSDD-50AR2-E: Flare Connection, Compatible with R-410A/R-454B

Use & Compatibility

This bundle is intended for use in multi-zone HVAC systems, providing flexible heating and cooling solutions for various environments. The outdoor unit is compatible with M-Series, P-Series, and CITY MULTI indoor units, while the included air handlers are designed for both single-zone and multi-zone applications. The branch boxes and distribution kit ensure efficient refrigerant management, making this bundle ideal for both residential and commercial installations.
