Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 9K+9K+9K+15K+15K+15K

Description

This comprehensive HVAC bundle features essential components designed for optimal performance in multi-zone heating and cooling systems. The Mitsubishi Electric MXZ-SM60NL outdoor heat pump serves as the powerhouse, capable of supporting up to eight indoor units. Complementing this are three wall-mounted air handlers: the MSZ-FX09NL and MSZ-FX15NL, which provide efficient heating and cooling with advanced filtration and smart technology. To ensure seamless refrigerant flow, the PAC-LMA50BC and PAC-LMA30BC branch boxes allow for easy connection of multiple indoor units, while the MSDD-50AR2-E branch pipe distribution kit guarantees balanced refrigerant distribution. Together, these components create a versatile and efficient climate control solution for both residential and commercial applications.

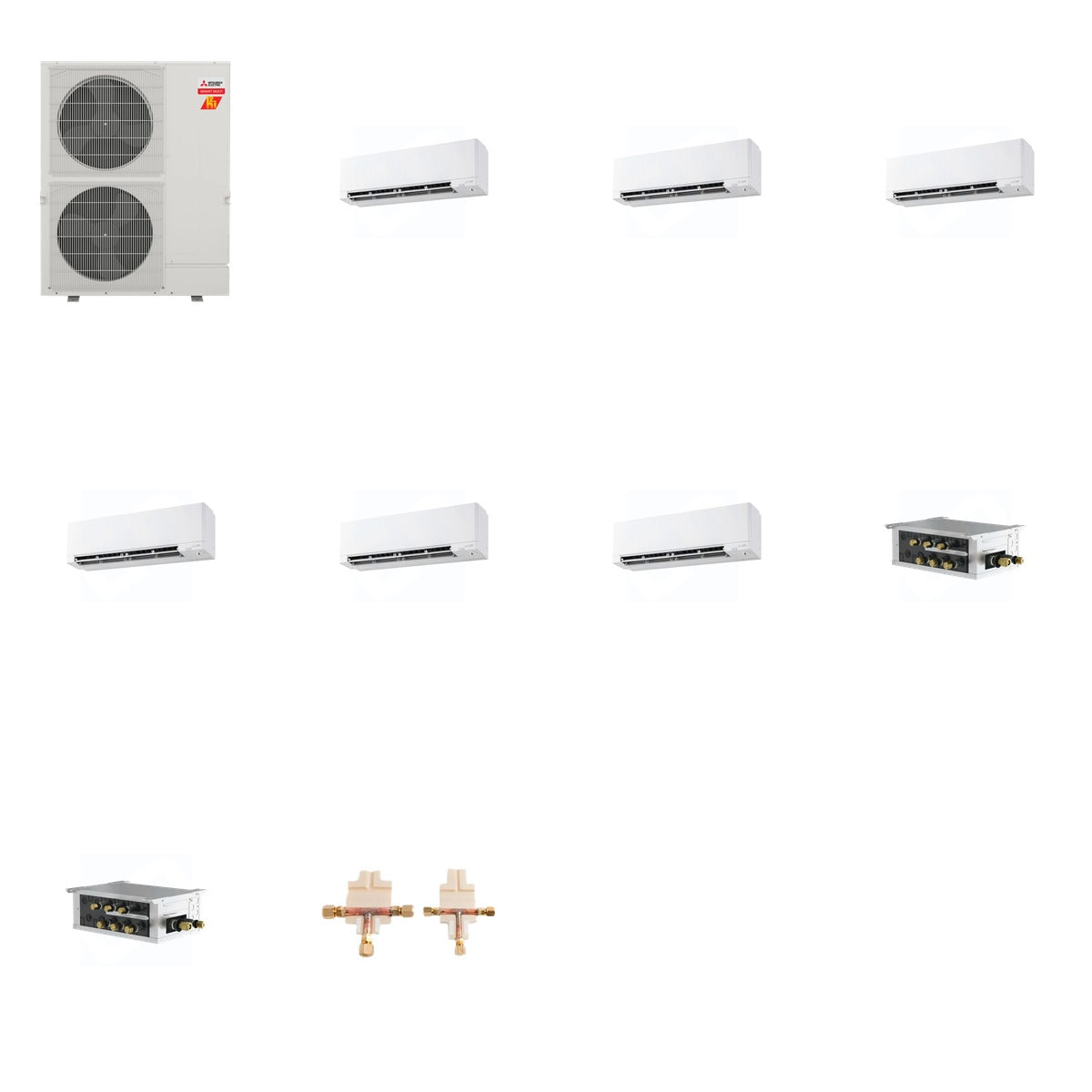

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 458.5 lb (Mitsubishi 225 lb + Mitsubishi 109.2 lb + Mitsubishi 109.2 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU Cooling, 66,000 BTU Heating, SEER2 up to 23, 5-Ton capacity
• MSZ-FX09NL: 9,000 BTU Cooling, 12,000 BTU Heating, 208/230V, 20-44 dB(A) noise level
• MSZ-FX15NL: 15,000 BTU Cooling, 18,000 BTU Heating, SEER2 up to 20, 208/230V
• PAC-LMA50BC: Connects up to 5 indoor units, 208/230V, 60Hz
• PAC-LMA30BC: Connects up to 3 indoor units, 208/230V, 60Hz
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B refrigerants

Use & Compatibility

This bundle is ideal for both residential and commercial HVAC applications, providing efficient heating and cooling across multiple zones. The components are compatible with Mitsubishi Electric's M-Series and CITY MULTI systems, ensuring seamless integration and optimal performance.
