Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 9K+9K+9K+12K+15K+15K

Description

This comprehensive HVAC bundle includes everything you need for a multi-zone heating and cooling system, featuring high-efficiency Mitsubishi Electric units designed for both residential and commercial applications. The MXZ-SM60NL outdoor unit serves as the powerhouse, supporting up to eight indoor units for customized climate control. The included wall-mounted air handlers (MSZ-FX09NL, MSZ-FX12NL, MSZ-FX15NL) provide versatile heating and cooling options, while the PAC-LMA50BC and PAC-LMA30BC branch boxes ensure optimal refrigerant distribution. The MSDD-50AR2-E branch pipe kit completes the setup, allowing for seamless installation and reliable performance.

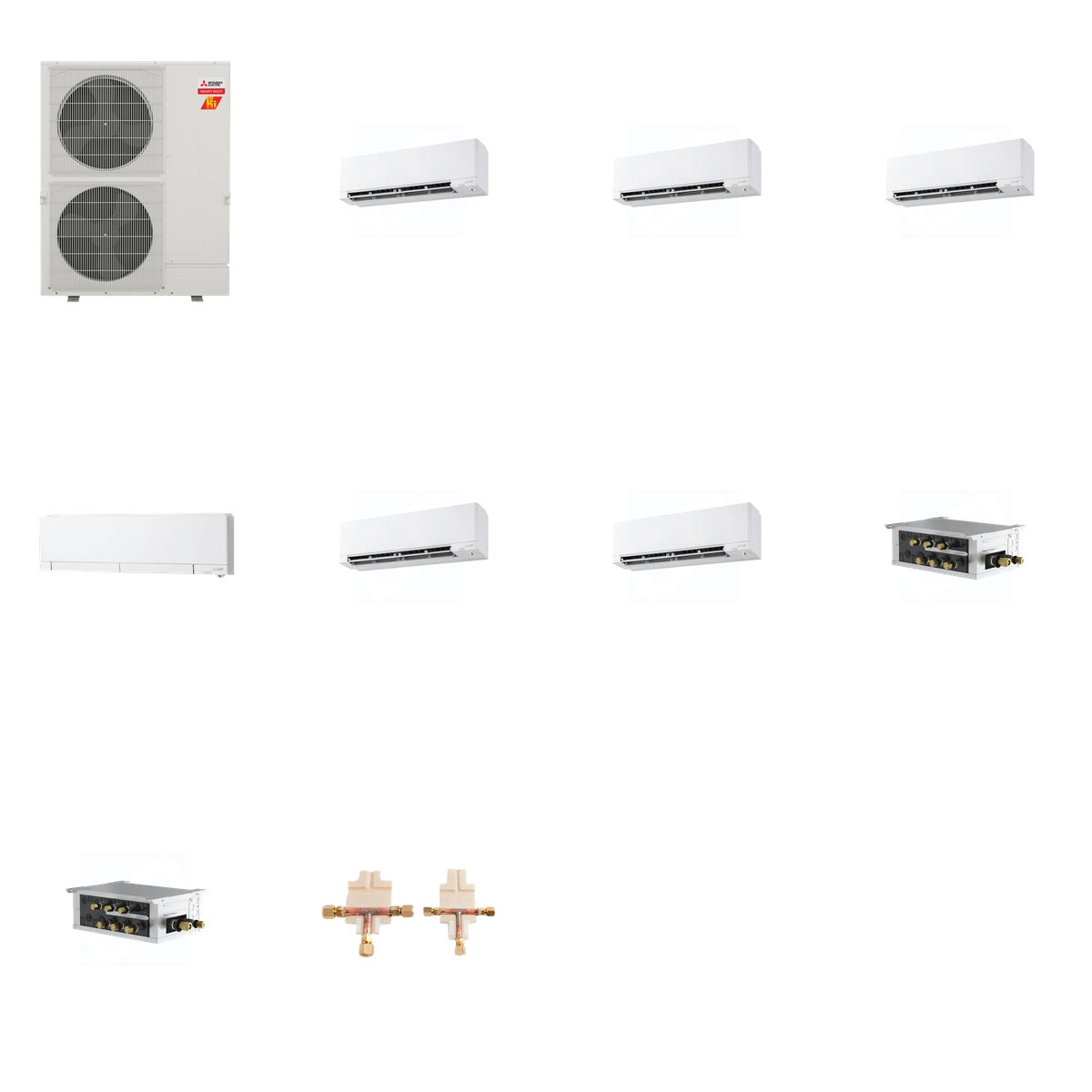

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 458.5 lb (Mitsubishi 225 lb + Mitsubishi 109.2 lb + Mitsubishi 36.4 lb + Mitsubishi 72.8 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: Up to 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: Up to 66,000 BTU (MXZ-SM60NL)
• SEER2 Rating: Up to 23 (MXZ-SM60NL)
• Voltage: 208/230 Volts (All units)
• Refrigerant Type: R-454B (All units)
• Sound Level: As low as 20 dB (MSZ-FX09NL)
• Dimensions: Vary by unit; MXZ-SM60NL is 41-11/32 x 13 x 52-11/16 inches
• Material: High-quality copper and thermal insulation (MSDD-50AR2-E)

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling across various indoor spaces. The outdoor unit is compatible with multiple M-Series and P-Series indoor units, while the branch boxes and distribution kit facilitate optimal refrigerant flow. Ideal for both residential and commercial applications, this setup ensures consistent comfort and energy efficiency.
