Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 9K+9K+12K+12K+15K+15K

Description

This comprehensive bundle features a selection of high-performance Mitsubishi Electric HVAC components designed for efficient heating and cooling in both residential and commercial environments. The MXZ-SM60NL outdoor unit serves as the backbone, supporting multiple indoor units for customized climate control. The MSZ-FX09NL, MSZ-FX12NL, and MSZ-FX15NL wall-mounted air handlers provide versatile heating and cooling options, equipped with advanced filtration and smart technology for enhanced air quality and convenience. Additionally, the PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate optimal refrigerant distribution, while the MSDD-50AR2-E branch pipe kit ensures seamless installation. Together, these components create a robust, energy-efficient multi-zone system tailored to meet diverse comfort needs.

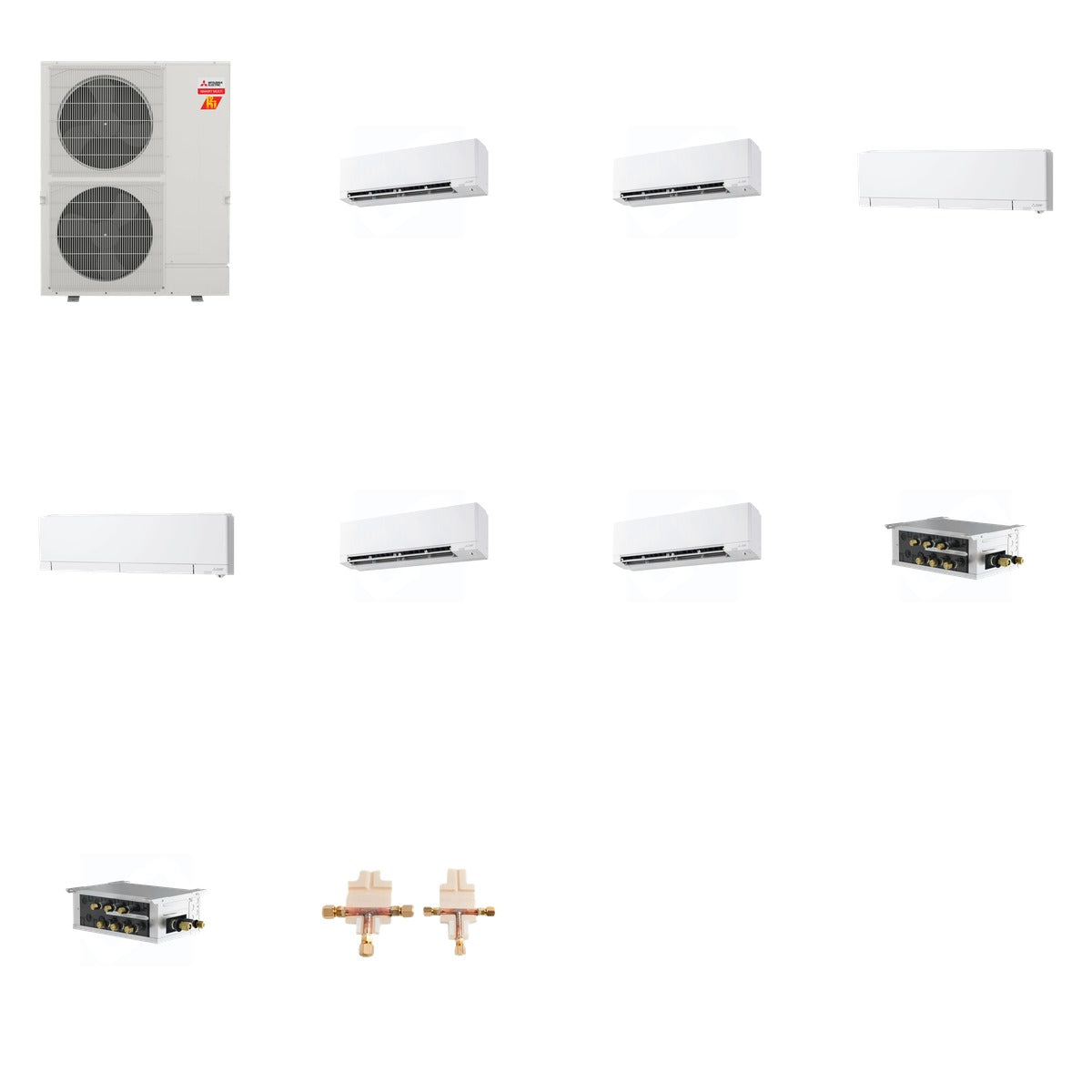

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 458.5 lb (Mitsubishi 225 lb + Mitsubishi 72.8 lb + Mitsubishi 72.8 lb + Mitsubishi 72.8 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-ton capacity
• MSZ-FX09NL: 9,000 BTU cooling, 12,000 BTU heating, 208/230V
• MSZ-FX12NL: 12,000 BTU cooling, 13,200 BTU heating, SEER2 up to 35
• MSZ-FX15NL: 15,000 BTU cooling, 18,000 BTU heating, SEER2 up to 20
• PAC-LMA50BC: 5 ports, 208/230V, compatible with MXZ models
• PAC-LMA30BC: 3 ports, 208/230V, supports R454B refrigerant
• MSDD-50AR2-E: Oxygen-free copper, flare connection, compatible with R-410A/R-454B

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling for various indoor spaces. The outdoor unit connects seamlessly to the included wall-mounted air handlers, while the branch boxes and distribution kit ensure balanced refrigerant flow. Ideal for both residential and commercial applications, this setup is compatible with Mitsubishi Electric's M-Series and CITY MULTI systems, making it a versatile choice for any climate control project.
