Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 9K+12K+12K+15K+15K+15K

Description

This comprehensive HVAC bundle features a selection of high-performance Mitsubishi Electric products designed for efficient heating and cooling in both residential and commercial settings. The centerpiece is the MXZ-SM60NL multi-zone heat pump outdoor unit, which connects seamlessly with the included wall-mounted air handlers (MSZ-FX09NL, MSZ-FX12NL, and MSZ-FX15NL) to provide customized climate control across multiple zones. The bundle also includes essential branch boxes (PAC-LMA50BC and PAC-LMA30BC) for optimal refrigerant distribution, along with a branch pipe distribution kit (MSDD-50AR2-E) to ensure balanced performance. Together, these components deliver exceptional energy efficiency, advanced air filtration, and smart technology integration, making this bundle an ideal choice for modern HVAC solutions.

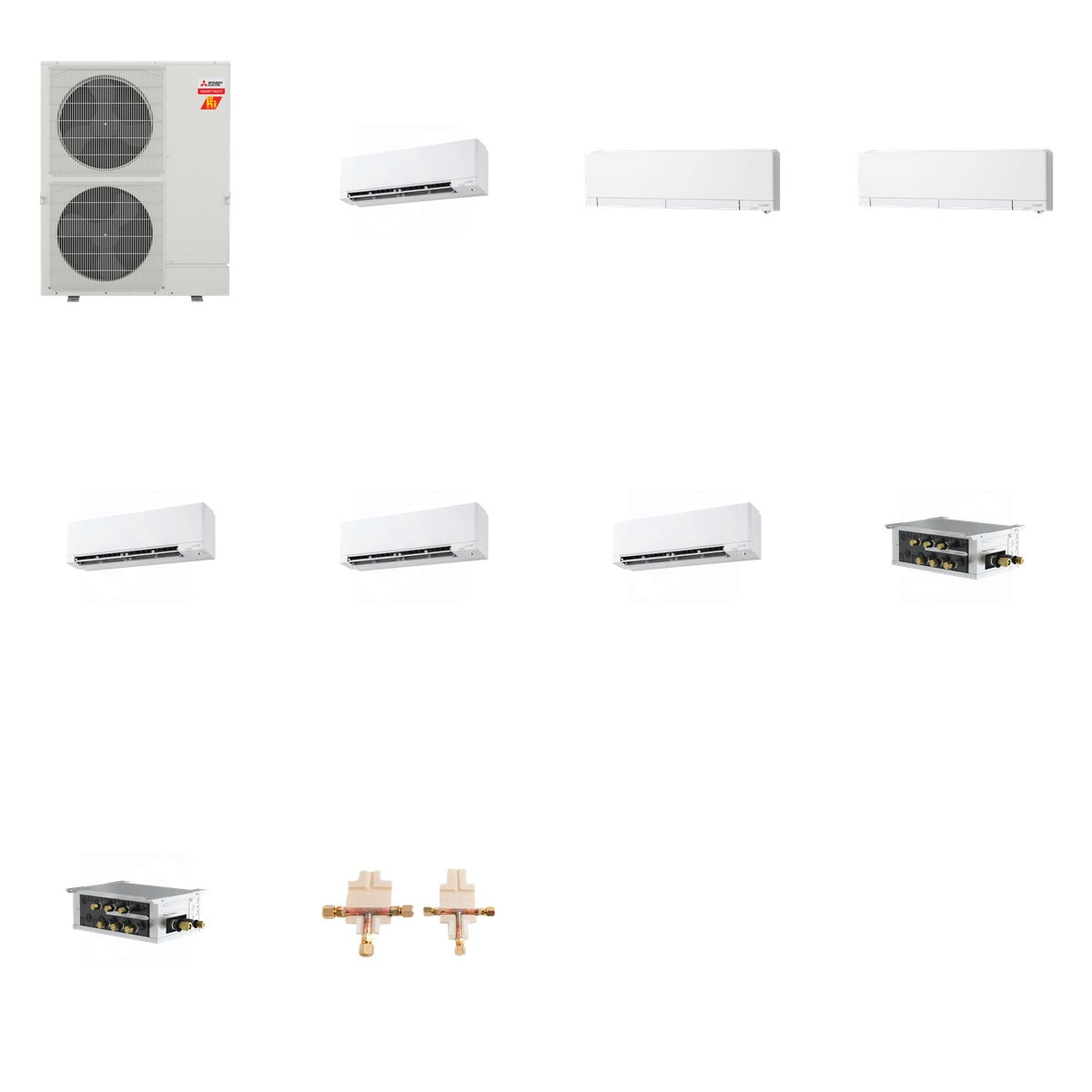

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 458.5 lb (Mitsubishi 225 lb + Mitsubishi 36.4 lb + Mitsubishi 72.8 lb + Mitsubishi 109.2 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• SEER2 Rating: Up to 23 (MXZ-SM60NL)
• Voltage: 208/230 Volts (All Units)
• Sound Level: As low as 20 dB (MSZ-FX09NL)
• Dimensions: 41-11/32 in W x 13 in D x 52-11/16 in H (MXZ-SM60NL)
• Refrigerant Type: R-454B (All Units)
• Indoor Unit Size: 12 in H x 39.27 in W x 9.75 in D (MSZ-FX09NL, MSZ-FX12NL, MSZ-FX15NL)

Use & Compatibility

This bundle is designed for efficient heating and cooling in multi-zone applications, making it suitable for a variety of residential and commercial HVAC systems. The outdoor unit connects to multiple indoor units, allowing for tailored climate control in different spaces. The included branch boxes and distribution kit ensure optimal refrigerant flow and temperature maintenance across all connected units.
