Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 9K+12K+12K+12K+15K+15K

Description

This comprehensive HVAC bundle features a selection of high-performance Mitsubishi Electric products designed to provide efficient heating and cooling for residential and commercial spaces. The centerpiece is the MXZ-SM60NL multi-zone heat pump outdoor unit, capable of connecting to multiple indoor units for customized climate control. Complementing this are three wall-mounted air handlers (MSZ-FX09NL, MSZ-FX12NL, MSZ-FX15NL) that deliver advanced filtration and smart technology for enhanced comfort. Additionally, the bundle includes two branch boxes (PAC-LMA50BC and PAC-LMA30BC) for optimal refrigerant distribution, along with a branch pipe distribution kit (MSDD-50AR2-E) to ensure seamless installation and performance across the system. Together, these components create a versatile and efficient heating and cooling solution tailored to meet diverse needs.

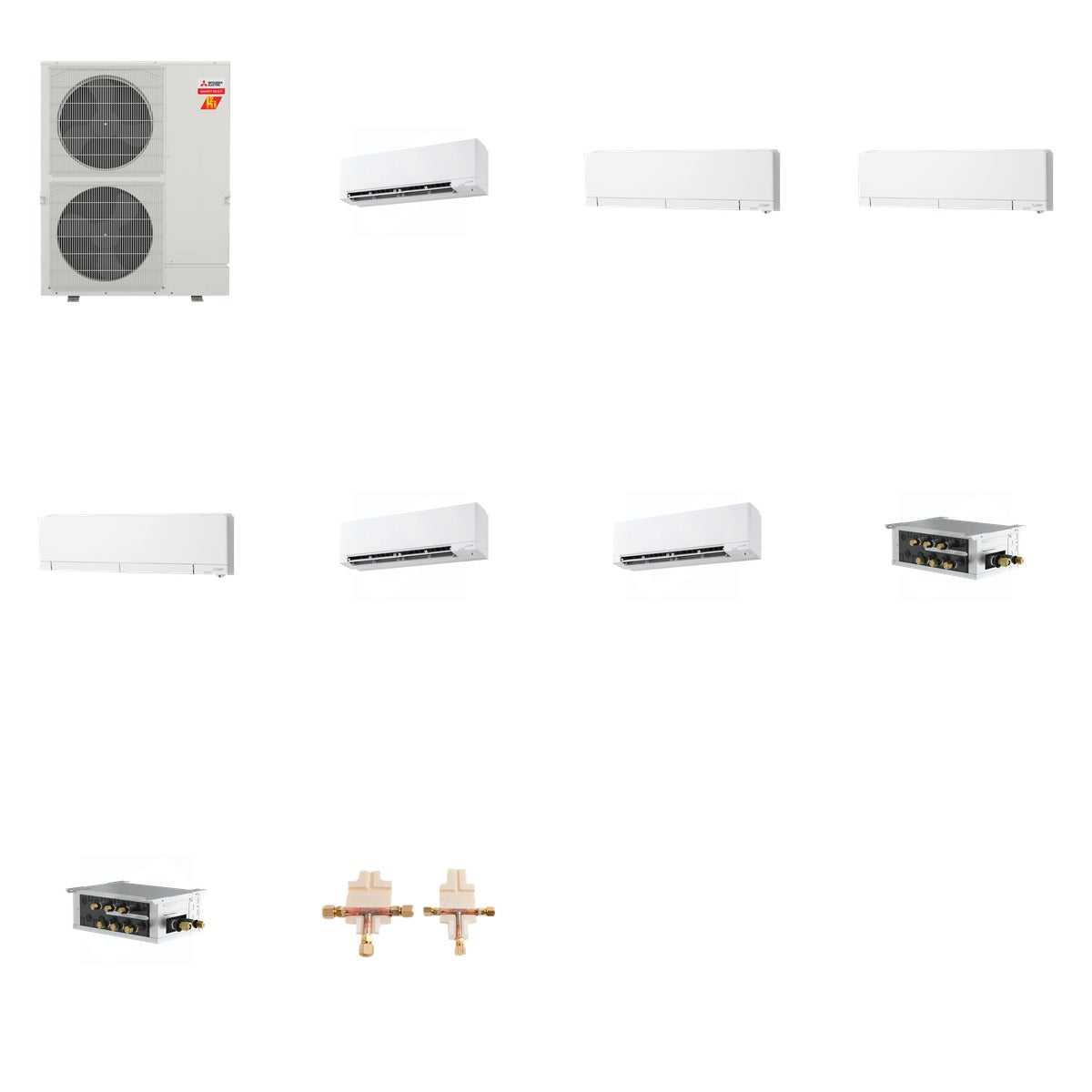

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 458.5 lb (Mitsubishi 225 lb + Mitsubishi 36.4 lb + Mitsubishi 109.2 lb + Mitsubishi 72.8 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU Cooling, 66,000 BTU Heating, SEER2 up to 23
• MSZ-FX09NL: 9,000 BTU Cooling, 12,000 BTU Heating, Voltage 208/230V
• MSZ-FX12NL: 12,000 BTU Cooling, 13,200 BTU Heating, SEER2 up to 35
• MSZ-FX15NL: 15,000 BTU Cooling, 18,000 BTU Heating, SEER2 up to 20
• PAC-LMA50BC: 5 ports, Voltage 208/230V
• PAC-LMA30BC: 3 ports, Voltage 208/230V
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B refrigerants

Use & Compatibility

This bundle is designed for use in both residential and commercial HVAC systems, providing efficient heating and cooling solutions. The MXZ-SM60NL outdoor unit is compatible with various M-Series and P-Series indoor units, while the wall-mounted air handlers can be utilized in single-zone or multi-zone configurations. The branch boxes and distribution kit facilitate optimal refrigerant management, ensuring balanced performance across multiple indoor units.
