Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 9K+12K+12K+12K+12K+15K

Description

This comprehensive HVAC bundle features a selection of high-performance Mitsubishi Electric products designed to deliver efficient heating and cooling solutions for both residential and commercial environments. The centerpiece is the MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit, which connects seamlessly to multiple indoor units, allowing for customized climate control across various zones. The included wall-mounted air handlers (MSZ-FX09NL, MSZ-FX12NL, MSZ-FX15NL) provide advanced filtration and smart features, ensuring a comfortable indoor atmosphere. Additionally, the PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate optimal refrigerant flow, while the MSDD-50AR2-E branch pipe distribution kit enhances system performance. Together, these components create a robust and efficient HVAC system tailored to meet diverse heating and cooling needs.

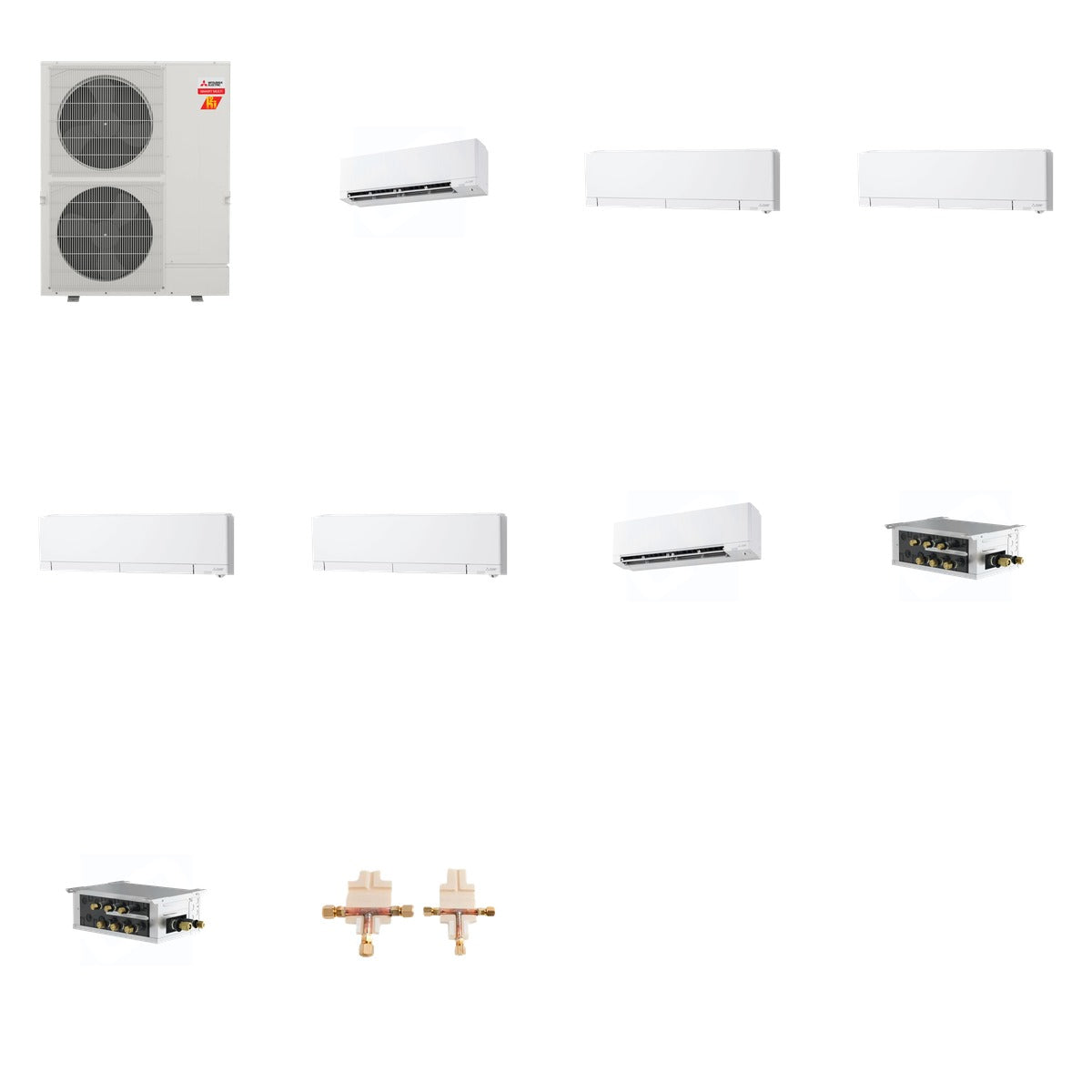

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 458.5 lb (Mitsubishi 225 lb + Mitsubishi 36.4 lb + Mitsubishi 145.6 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU Cooling, 66,000 BTU Heating, SEER2 up to 23, 5-ton capacity
• MSZ-FX09NL: 9,000 BTU Cooling, 12,000 BTU Heating, 208/230V, 20-44 dB(A) sound level
• MSZ-FX12NL: 12,000 BTU Cooling, 13,200 BTU Heating, SEER2 up to 35, 208/230V
• MSZ-FX15NL: 15,000 BTU Cooling, 18,000 BTU Heating, SEER2 up to 20, 208/230V
• PAC-LMA50BC: 5-Port, 208/230V, compatible with MXZ model
• PAC-LMA30BC: 3-Port, 208/230V, compatible with R454B refrigerant
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B, oxygen-free copper

Use & Compatibility

This HVAC bundle is intended for use in multi-zone heating and cooling applications, providing efficient climate control across various indoor spaces. The outdoor unit is compatible with multiple indoor air handlers, making it ideal for both residential and commercial installations. The branch boxes and distribution kit ensure balanced refrigerant flow, enhancing overall system performance.
