Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 9K+12K+12K+12K+12K+12K

Description

This comprehensive HVAC bundle includes everything you need for a multi-zone heating and cooling system. Featuring the Mitsubishi Electric MXZ-SM60NL outdoor unit, this package is designed to work seamlessly with multiple indoor units, ensuring efficient temperature control across various spaces. The included MSZ-FX09NL and MSZ-FX12NL wall-mounted air handlers provide advanced filtration and smart control capabilities, while the PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate optimal refrigerant flow. The MSDD-50AR2-E branch pipe distribution kit ensures a secure and efficient installation, making this bundle perfect for both residential and commercial applications.

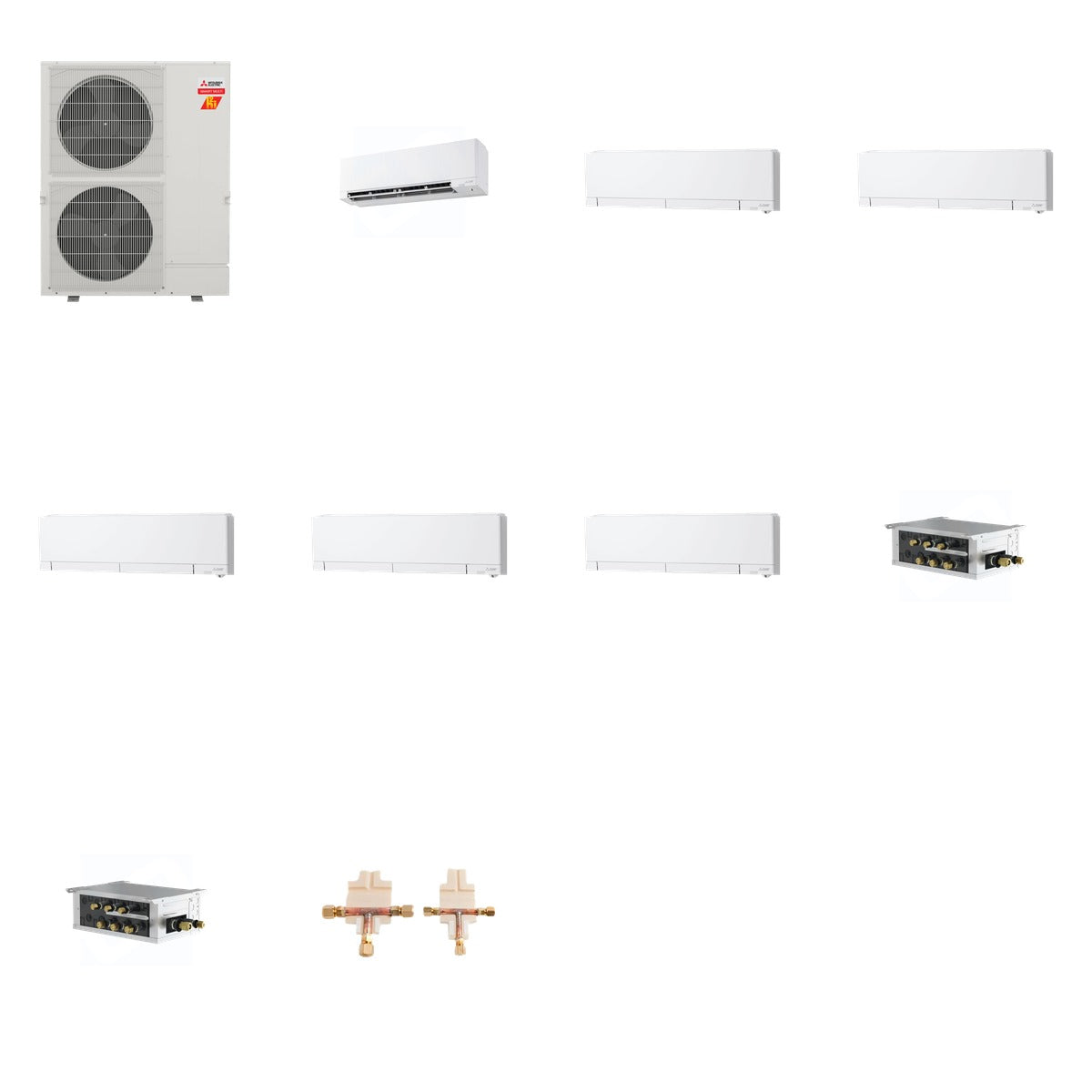

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x5)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 458.5 lb (Mitsubishi 225 lb + Mitsubishi 36.4 lb + Mitsubishi 182 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Cooling BTU: 9,000 (MSZ-FX09NL), 12,000 (MSZ-FX12NL)
• Heating BTU: 12,000 (MSZ-FX09NL), 13,200 (MSZ-FX12NL)
• SEER2: Up to 23 (MXZ-SM60NL), Up to 35 (MSZ-FX12NL)
• Voltage: 208/230 Volts
• Dimensions: 41-11/32 in W x 13 in D x 52-11/16 in H (MXZ-SM60NL)
• Sound Level: As low as 20 dB (MSZ-FX09NL)
• Material: High-quality copper and insulation (MSDD-50AR2-E)

Use & Compatibility

This bundle is ideal for creating a versatile multi-zone HVAC system, suitable for both residential and commercial environments. The outdoor unit connects to various indoor air handlers, allowing for customized heating and cooling solutions. The branch boxes and distribution kit ensure efficient refrigerant management, making it compatible with Mitsubishi Electric's R454B refrigerant systems.
