Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+9K+9K+9K+9K+15K

Description

This comprehensive HVAC bundle features high-performance equipment from Mitsubishi Electric, designed to provide efficient heating and cooling for both residential and commercial spaces. The MXZ-SM60NL outdoor unit serves as the powerhouse, supporting up to eight indoor units for customized climate control. Paired with four wall-mounted air handlers (MSZ-FX06NL, MSZ-FX09NL, MSZ-FX15NL), this system ensures optimal comfort across multiple zones. The inclusion of branch boxes (PAC-LMA50BC and PAC-LMA30BC) facilitates seamless refrigerant flow management, while the MSDD-50AR2-E distribution kit enhances installation efficiency. Together, these components create a robust and versatile HVAC solution that meets modern energy efficiency standards.

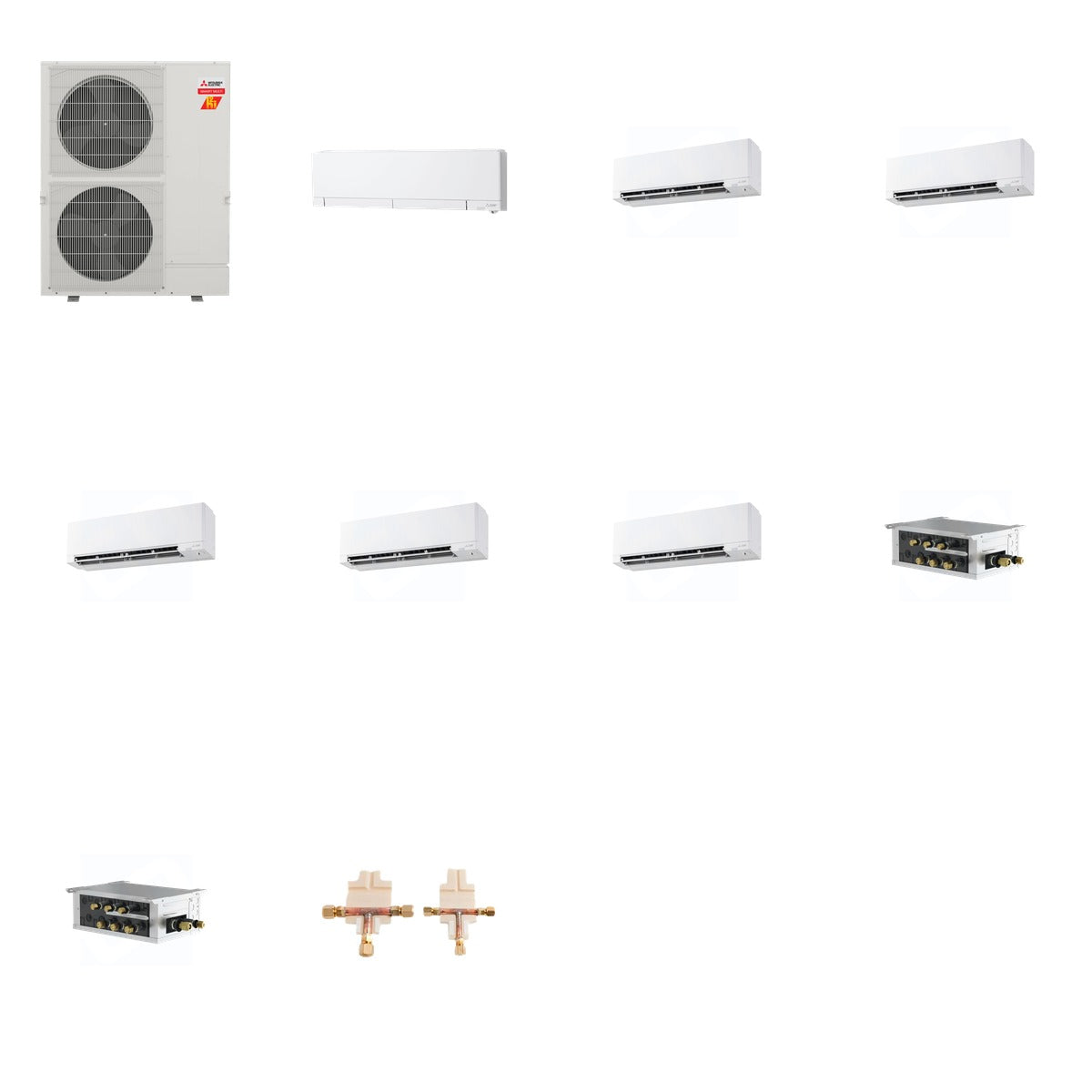

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - FX-Series Wall Mounted Unit 6k BTU (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - FX-Series Wall Mounted Unit 9k BTU (Qty x4)
• MITSUBISHI ELECTRIC MSZ-FX15NL - FX-Series Wall Mounted Unit 15k BTU (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)

Key Details

• Weight of Bundle: 451.1 lb (Mitsubishi 225 lb + Mitsubishi 29 lb + Mitsubishi 145.6 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Indoor Units: 6,000 BTU (MSZ-FX06NL), 9,000 BTU (MSZ-FX09NL), 15,000 BTU (MSZ-FX15NL)
• SEER2 Rating: Up to 35 (MSZ-FX06NL)
• Voltage: 208/230 Volts (All Units)
• Refrigerant: R-454B (All Units)
• Dimensions: Varies by unit (see specifications)

Use & Compatibility

This bundle is designed for both residential and commercial HVAC applications, providing efficient heating and cooling across multiple zones. The outdoor unit is compatible with various M-Series and CITY MULTI indoor units, ensuring flexibility in installation and operation. Ideal for spaces requiring customized climate control, this system supports advanced features like Wi-Fi connectivity for smart device management.
