Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+9K+9K+9K+18K+18K

Description

This comprehensive HVAC bundle features the Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit paired with multiple wall-mounted air handlers, including the MSZ-FX06NL, MSZ-FX09NL, and MSZ-FX18NL. Designed for both residential and commercial applications, this system provides efficient heating and cooling across multiple zones. The included branch boxes (PAC-LMA50BC and PAC-LMA30BC) ensure optimal refrigerant flow and power distribution, while the MSDD-50AR2-E distribution kit simplifies installation. Together, these components create a versatile and energy-efficient climate control solution tailored to your specific needs.

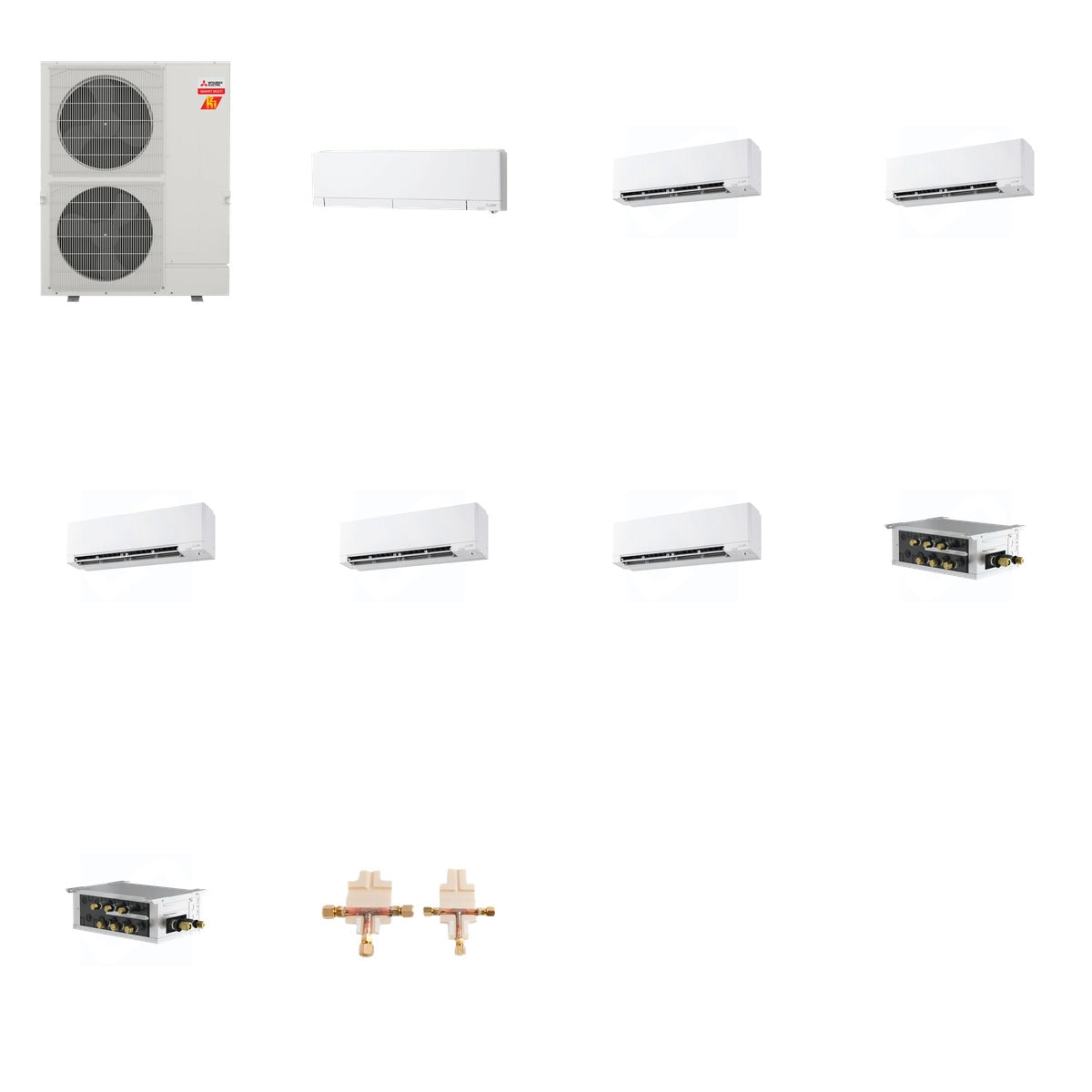

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - FX-Series Wall Mounted Unit 6k BTU (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - FX-Series Wall Mounted Unit 9k BTU (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX18NL - FX-Series Wall Mounted Unit 18k BTU (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)

Key Details

• Weight of Bundle: 451.1 lb (Mitsubishi 225 lb + Mitsubishi 29 lb + Mitsubishi 109.2 lb + Mitsubishi 72.8 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-ton inverter condenser
• MSZ-FX06NL: 6,000 BTU, SEER2 up to 35, 20-42 dB sound level
• MSZ-FX09NL: 9,000 BTU, SEER2 up to 35, 20-44 dB sound level
• MSZ-FX18NL: 18,000 BTU, SEER 25.5, 26-46 dB sound level
• PAC-LMA50BC: 5 ports, 208/230V, 60Hz
• PAC-LMA30BC: 3 ports, 208/230V, 60Hz
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling applications, compatible with Mitsubishi Electric's M-Series and CITY MULTI systems. The outdoor unit connects to various indoor units, allowing for customized climate control in different spaces. The branch boxes and distribution kit facilitate efficient refrigerant management, ensuring optimal performance across all connected units.
