Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+9K+9K+9K+15K+18K

Description

This comprehensive bundle includes a range of high-performance Mitsubishi Electric HVAC components designed for optimal heating and cooling in both residential and commercial settings. The MXZ-SM60NL outdoor unit serves as the powerful backbone of this multi-zone system, supporting up to eight indoor units for customized climate control. Paired with wall-mounted air handlers (MSZ-FX06NL, MSZ-FX09NL, MSZ-FX15NL, and MSZ-FX18NL), this setup ensures efficient operation across various room sizes. The bundle also includes essential accessories such as branch boxes (PAC-LMA50BC and PAC-LMA30BC) for effective refrigerant distribution, along with a branch pipe distribution kit (MSDD-50AR2-E) to enhance system performance. Together, these components create a versatile and efficient HVAC solution tailored to meet diverse heating and cooling needs.

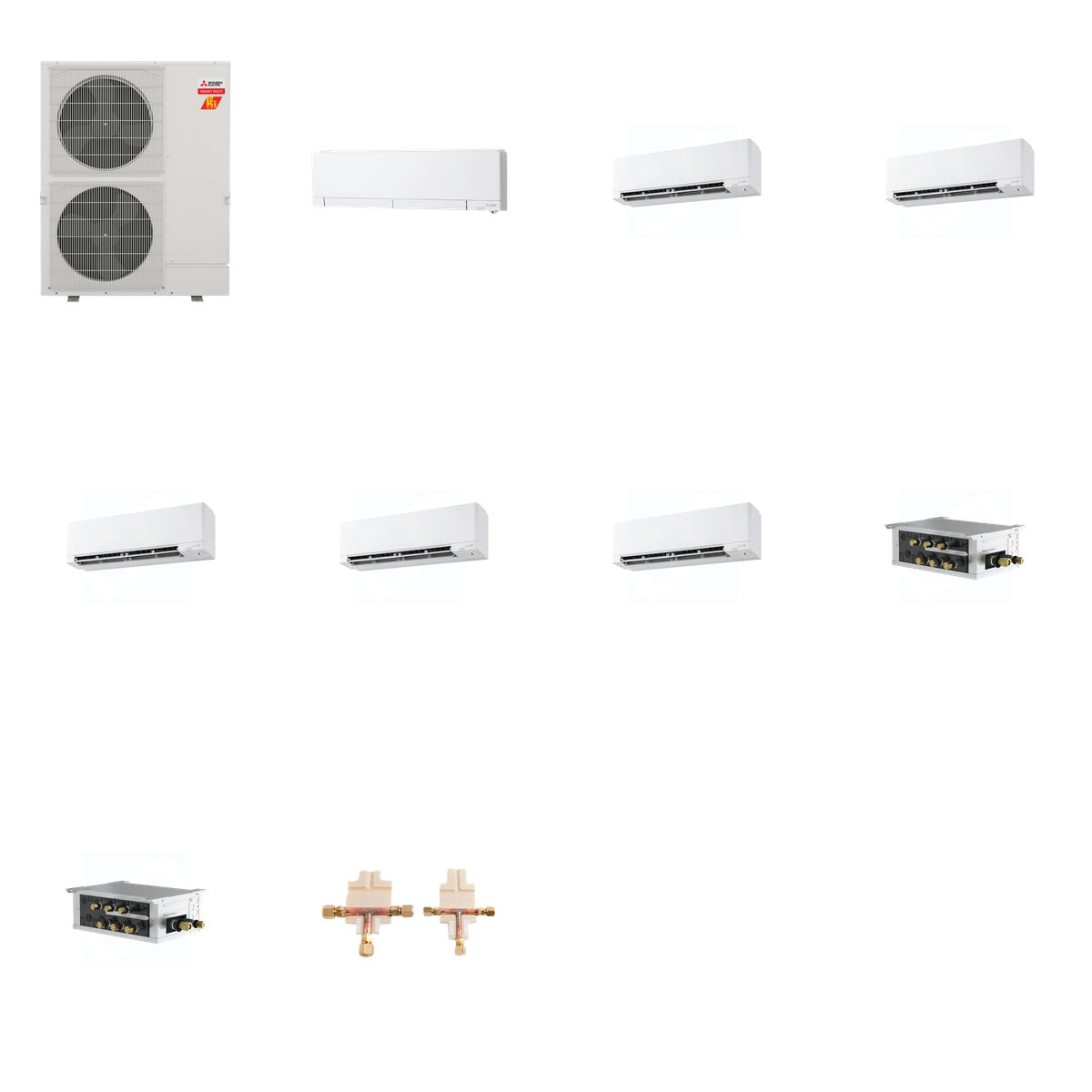

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX18NL - Mitsubishi Electric MSZ-FX18NL FX-Series Wall Mounted Unit 18k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 451.1 lb (Mitsubishi 225 lb + Mitsubishi 29 lb + Mitsubishi 109.2 lb + Mitsubishi 36.4 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-ton inverter condenser
• MSZ-FX06NL: 6,000 BTU, SEER2 up to 35, 208/230V
• MSZ-FX09NL: 9,000 BTU, SEER2 up to 35, 208/230V
• MSZ-FX15NL: 15,000 BTU, SEER2 up to 20, 208/230V
• MSZ-FX18NL: 18,000 BTU, SEER up to 25.5, 208/230V
• PAC-LMA50BC: 5 ports, 208/230V, compatible with MXZ models
• PAC-LMA30BC: 3 ports, 208/230V, compatible with R454B refrigerant
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling solutions for various indoor environments. The outdoor unit connects seamlessly with the included wall-mounted air handlers, making it suitable for both residential and commercial applications. The branch boxes and distribution kit ensure balanced refrigerant flow, enhancing system performance and reliability.
