Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+9K+9K+9K+15K+15K

Description

This comprehensive HVAC bundle from Mitsubishi Electric is designed to provide efficient heating and cooling solutions for both residential and commercial environments. The combination of the MXZ-SM60NL multi-zone outdoor unit with multiple wall-mounted air handlers (MSZ-FX06NL, MSZ-FX09NL, and MSZ-FX15NL) ensures that you can customize your climate control across various zones in your space. The included branch boxes (PAC-LMA50BC and PAC-LMA30BC) facilitate optimal refrigerant distribution, while the MSDD-50AR2-E branch pipe kit enhances system performance and reliability. This bundle is perfect for those seeking a flexible, energy-efficient HVAC solution that meets modern environmental standards.

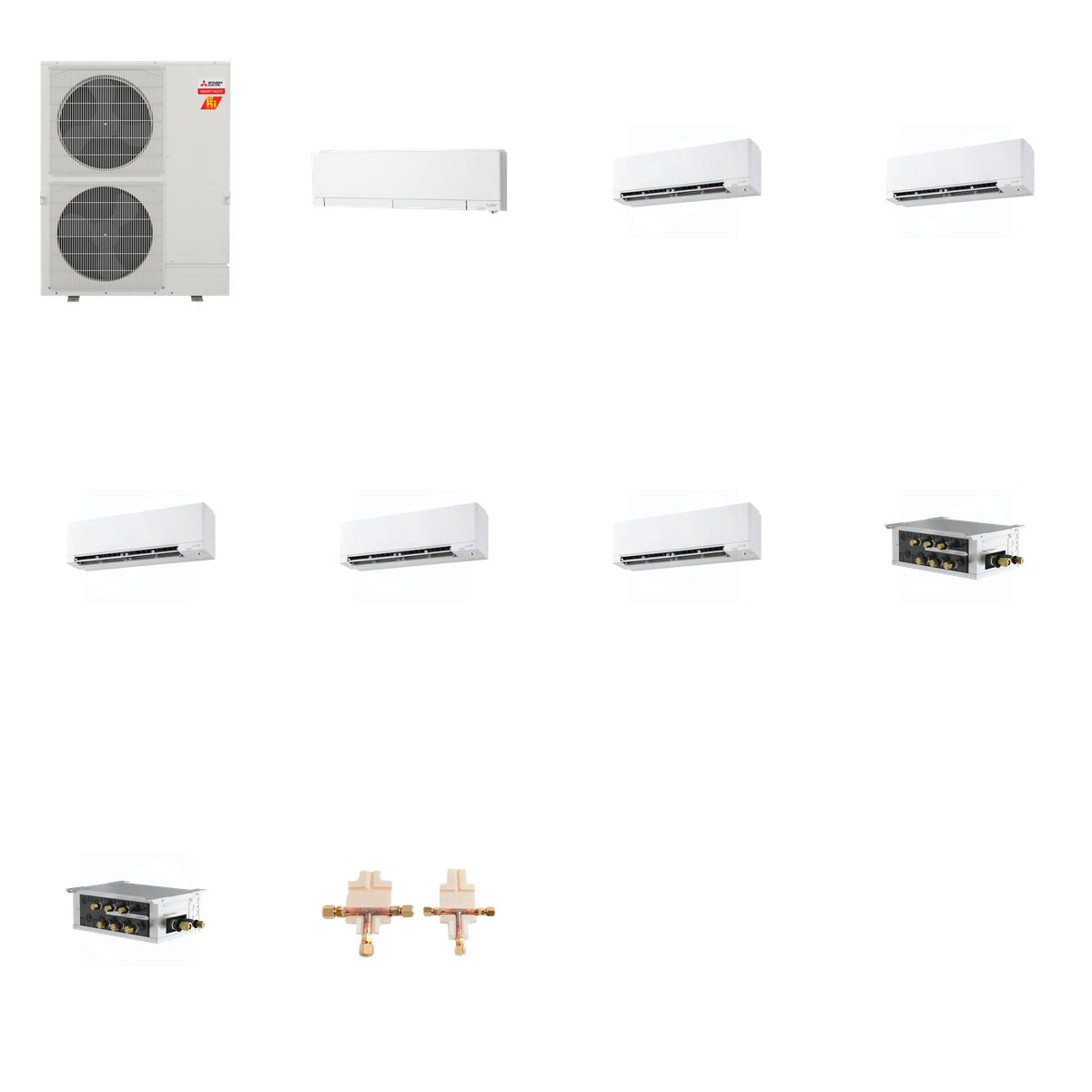

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 451.1 lb (Mitsubishi 225 lb + Mitsubishi 29 lb + Mitsubishi 109.2 lb + Mitsubishi 72.8 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU, 5-ton capacity, SEER2 up to 23, R454B refrigerant
• MSZ-FX06NL: 6,000 BTU, SEER2 up to 35, R454B refrigerant, 20-42 dB sound level
• MSZ-FX09NL: 9,000 BTU, SEER2 up to 35, R454B refrigerant, 20-44 dB sound level
• MSZ-FX15NL: 15,000 BTU, SEER2 up to 20, R454B refrigerant, 26-49 dB sound level
• PAC-LMA50BC: 5 ports, 208/230V, compatible with MXZ models
• PAC-LMA30BC: 3 ports, 208/230V, ensures balanced refrigerant flow
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B, oxygen-free copper material

Use & Compatibility

This bundle is ideal for multi-zone HVAC systems, providing efficient heating and cooling for various indoor spaces. The outdoor unit is compatible with multiple indoor units, allowing for tailored climate control. The branch boxes and distribution kit ensure optimal refrigerant flow, making this setup suitable for both residential and commercial applications.
