Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+9K+9K+12K+18K+18K

Description

This comprehensive HVAC bundle features a selection of high-performance Mitsubishi Electric products designed to optimize heating and cooling in both residential and commercial settings. The centerpiece is the MXZ-SM60NL multi-zone heat pump outdoor unit, which connects seamlessly to multiple indoor units, providing customized climate control across various zones. Accompanying this unit are four wall-mounted air handlers (MSZ-FX06NL, MSZ-FX09NL, MSZ-FX12NL, and MSZ-FX18NL) that deliver efficient heating and cooling with advanced filtration and smart Wi-Fi capabilities. The bundle also includes two branch boxes (PAC-LMA50BC and PAC-LMA30BC) for effective refrigerant management, as well as a branch pipe distribution kit (MSDD-50AR2-E) to ensure optimal performance across all connected units. Together, these components create a versatile and efficient HVAC system tailored for diverse applications.

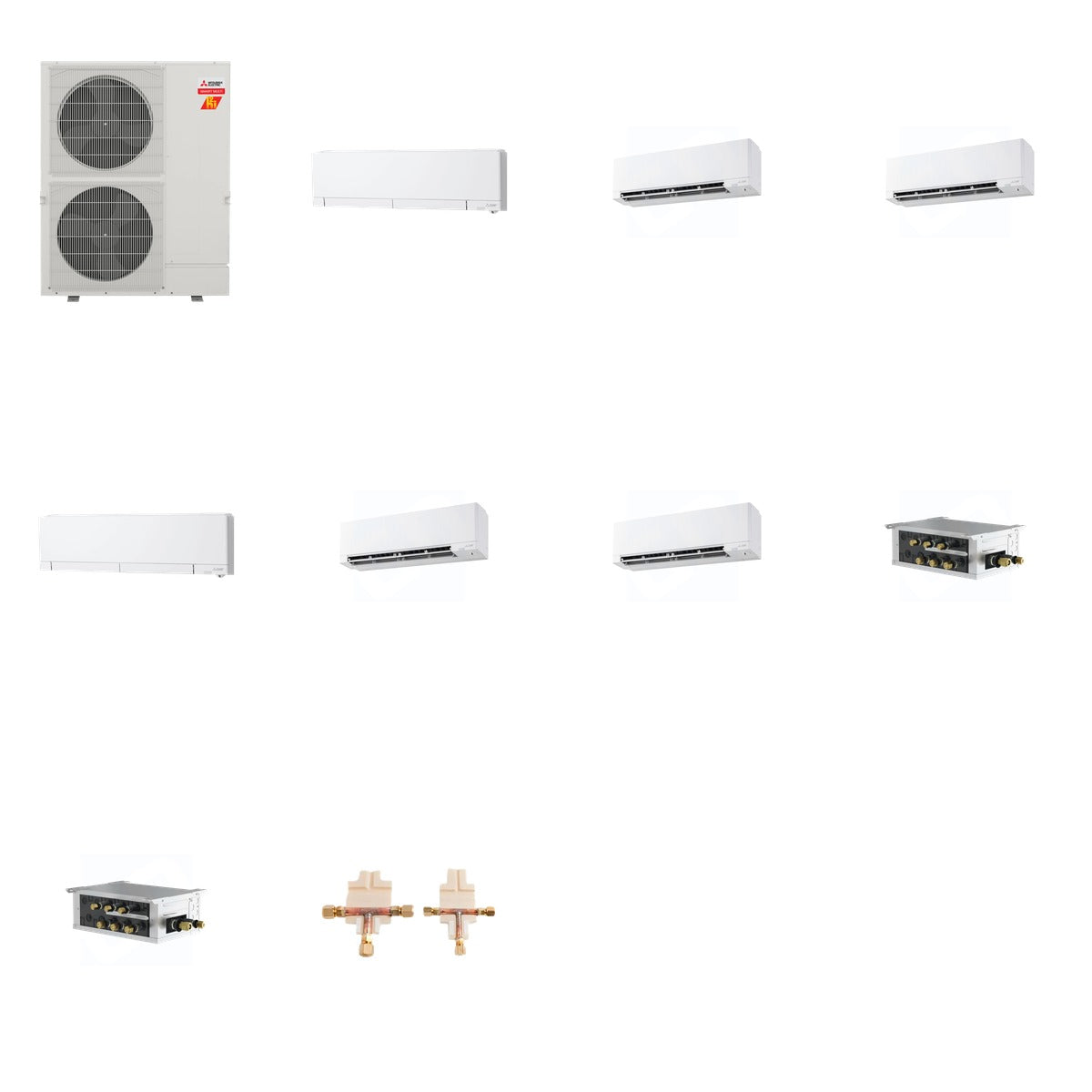

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - FX-Series Wall Mounted Unit 6k BTU (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - FX-Series Wall Mounted Unit 9k BTU (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX12NL - FX-Series Wall Mounted Unit 12k BTU (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX18NL - FX-Series Wall Mounted Unit 18k BTU (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)

Key Details

• Weight of Bundle: 451.1 lb (Mitsubishi 225 lb + Mitsubishi 29 lb + Mitsubishi 72.8 lb + Mitsubishi 36.4 lb + Mitsubishi 72.8 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Indoor Units: 6,000 BTU to 18,000 BTU
• SEER2 Ratings: Up to 35 (MSZ-FX Series)
• Refrigerant Type: R-454B
• Voltage: 208/230 Volts
• Sound Levels: As low as 20 dB (MSZ-FX Series)
• Dimensions: Vary by unit, typically 39.27 in W x 12 in H x 9.75 in D

Use & Compatibility

This bundle is designed for use in both residential and commercial HVAC applications, providing efficient heating and cooling solutions. The MXZ-SM60NL outdoor unit is compatible with various indoor units from the M-Series and P-Series, making it ideal for multi-zone configurations. The included branch boxes and distribution kit ensure effective refrigerant flow and temperature management, enhancing system performance and comfort.
