Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+9K+9K+12K+12K+18K

Description

This comprehensive HVAC bundle features a selection of high-performance Mitsubishi Electric products designed for efficient heating and cooling in both residential and commercial settings. The centerpiece is the MXZ-SM60NL multi-zone heat pump outdoor unit, which connects seamlessly to multiple indoor units, allowing for customized climate control. Accompanying this are four wall-mounted air handlers (MSZ-FX06NL, MSZ-FX09NL, MSZ-FX12NL, and MSZ-FX18NL) that provide versatile heating and cooling options with advanced filtration and smart control capabilities. To ensure optimal refrigerant flow, the bundle includes two branch boxes (PAC-LMA50BC and PAC-LMA30BC) and a branch pipe distribution kit (MSDD-50AR2-E), making it a complete solution for multi-zone HVAC systems.

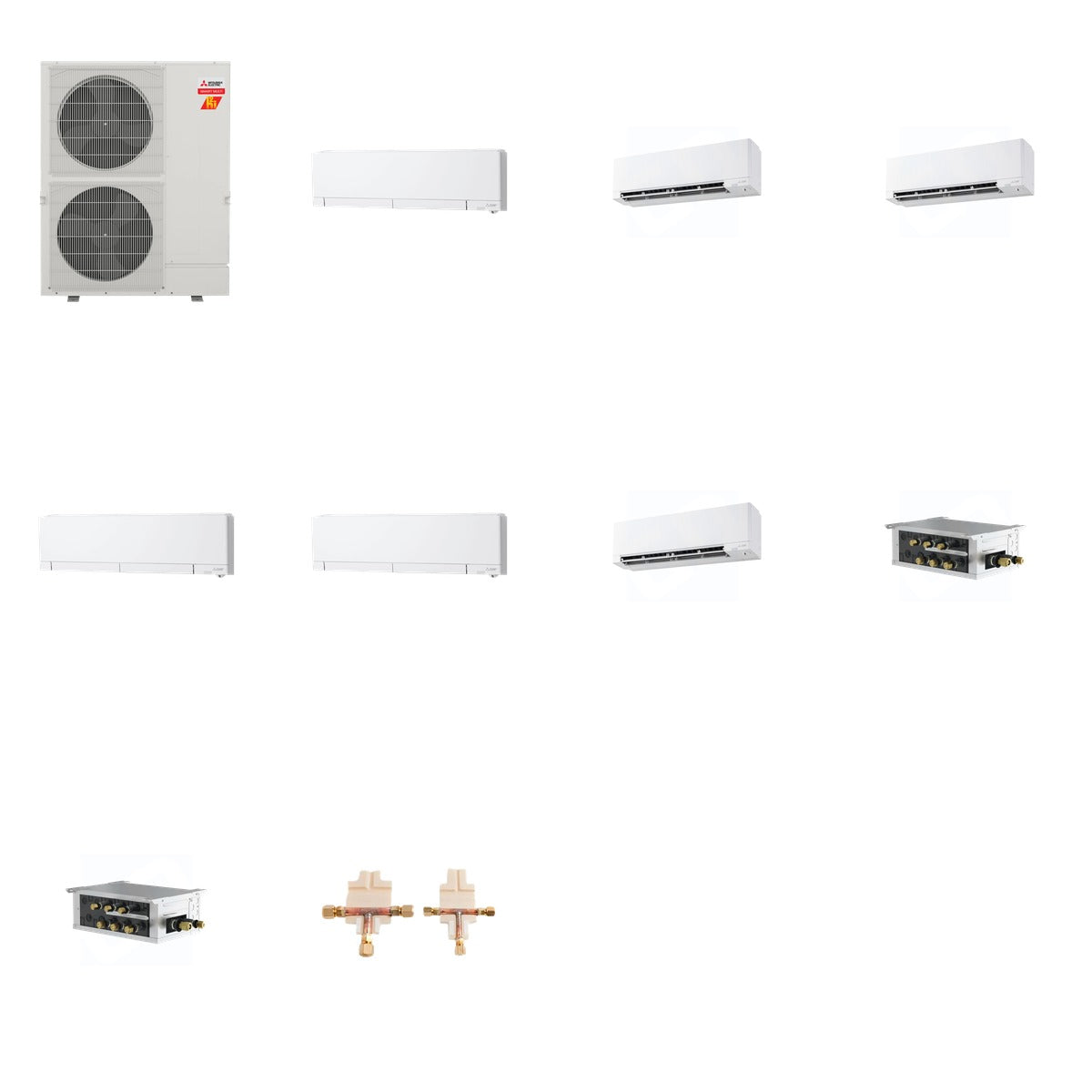

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - 6k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - 9k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX12NL - 12k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX18NL - 18k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)

Key Details

• Weight of Bundle: 451.1 lb (Mitsubishi 225 lb + Mitsubishi 29 lb + Mitsubishi 72.8 lb + Mitsubishi 72.8 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-ton capacity
• MSZ-FX06NL: 6,000 BTU, SEER2 up to 35, 20-42 dB(A) sound level
• MSZ-FX09NL: 9,000 BTU, SEER2 up to 35, 20-44 dB(A) sound level
• MSZ-FX12NL: 12,000 BTU, SEER2 up to 35, 20-44 dB(A) sound level
• MSZ-FX18NL: 18,000 BTU, SEER up to 25.5, 26-46 dB(A) sound level
• PAC-LMA50BC: 5 ports, 208/230V, 60Hz
• PAC-LMA30BC: 3 ports, 208/230V, 60Hz
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B

Use & Compatibility

This bundle is ideal for multi-zone HVAC applications, providing efficient heating and cooling for various indoor spaces. The outdoor unit is compatible with M-Series and CITY MULTI indoor units, while the branch boxes and distribution kit ensure optimal refrigerant flow and temperature control across multiple zones.
