Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+9K+12K+12K+12K+12K

Description

This comprehensive bundle features essential components for creating a highly efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, capable of supporting up to eight indoor units. Paired with four advanced wall-mounted air handlers (MSZ-FX06NL, MSZ-FX09NL, MSZ-FX12NL), this setup provides customizable comfort across various spaces. The inclusion of two branch boxes (PAC-LMA50BC and PAC-LMA30BC) ensures optimal refrigerant distribution, while the MSDD-50AR2-E branch pipe distribution kit enhances installation efficiency. Together, these products deliver a robust, energy-efficient solution for both residential and commercial applications.

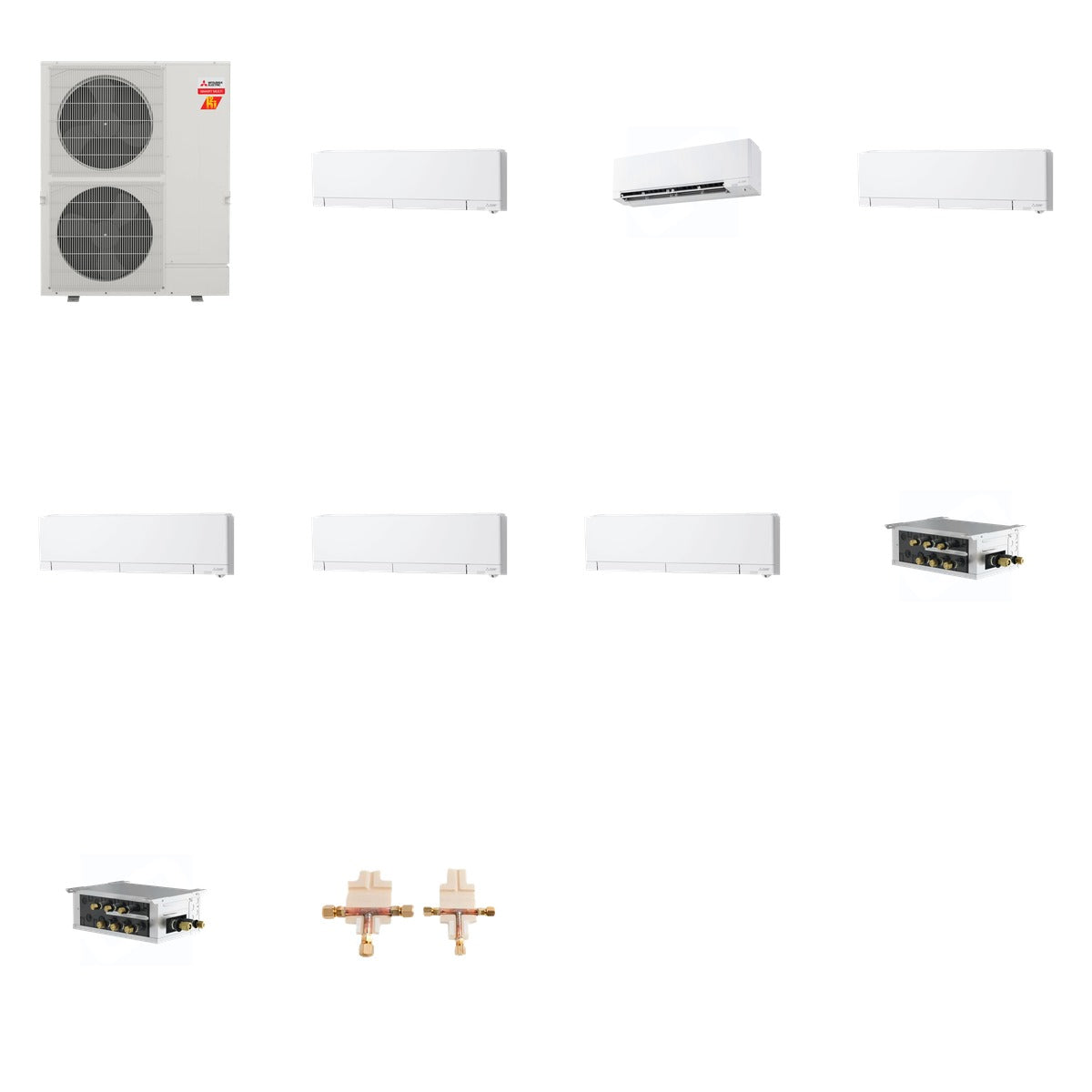

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x4)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 451.1 lb (Mitsubishi 225 lb + Mitsubishi 29 lb + Mitsubishi 36.4 lb + Mitsubishi 145.6 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Indoor Units: 4 x 6k BTU, 9k BTU, 12k BTU
• SEER2: Up to 35 (MSZ-FX Series)
• Refrigerant Type: R-454B
• Voltage: 208/230 Volts
• Sound Level: As low as 20 dB(A)
• Dimensions: Various (Indoor Units: 12 in H x 39.27 in W x 9.75 in D)

Use & Compatibility

This bundle is designed for residential and commercial HVAC applications, providing efficient heating and cooling solutions. The outdoor unit is compatible with M-Series and CITY MULTI indoor units, allowing for flexible configurations. The included branch boxes and distribution kit facilitate seamless refrigerant management, ensuring optimal performance across multiple indoor zones.
