Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+9K+9K+9K+18K

Description

This comprehensive bundle features essential components for setting up an efficient multi-zone HVAC system. The Mitsubishi Electric MXZ-SM60NL outdoor heat pump serves as the powerhouse, providing robust heating and cooling capabilities. Paired with the MSZ-FX06NL, MSZ-FX09NL, and MSZ-FX18NL wall-mounted air handlers, this bundle ensures optimal comfort across various spaces. The inclusion of branch boxes (PAC-LMA50BC and PAC-LMA30BC) facilitates seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe kit enhances installation efficiency. Together, these products create a versatile and efficient climate control solution suitable for both residential and commercial applications.

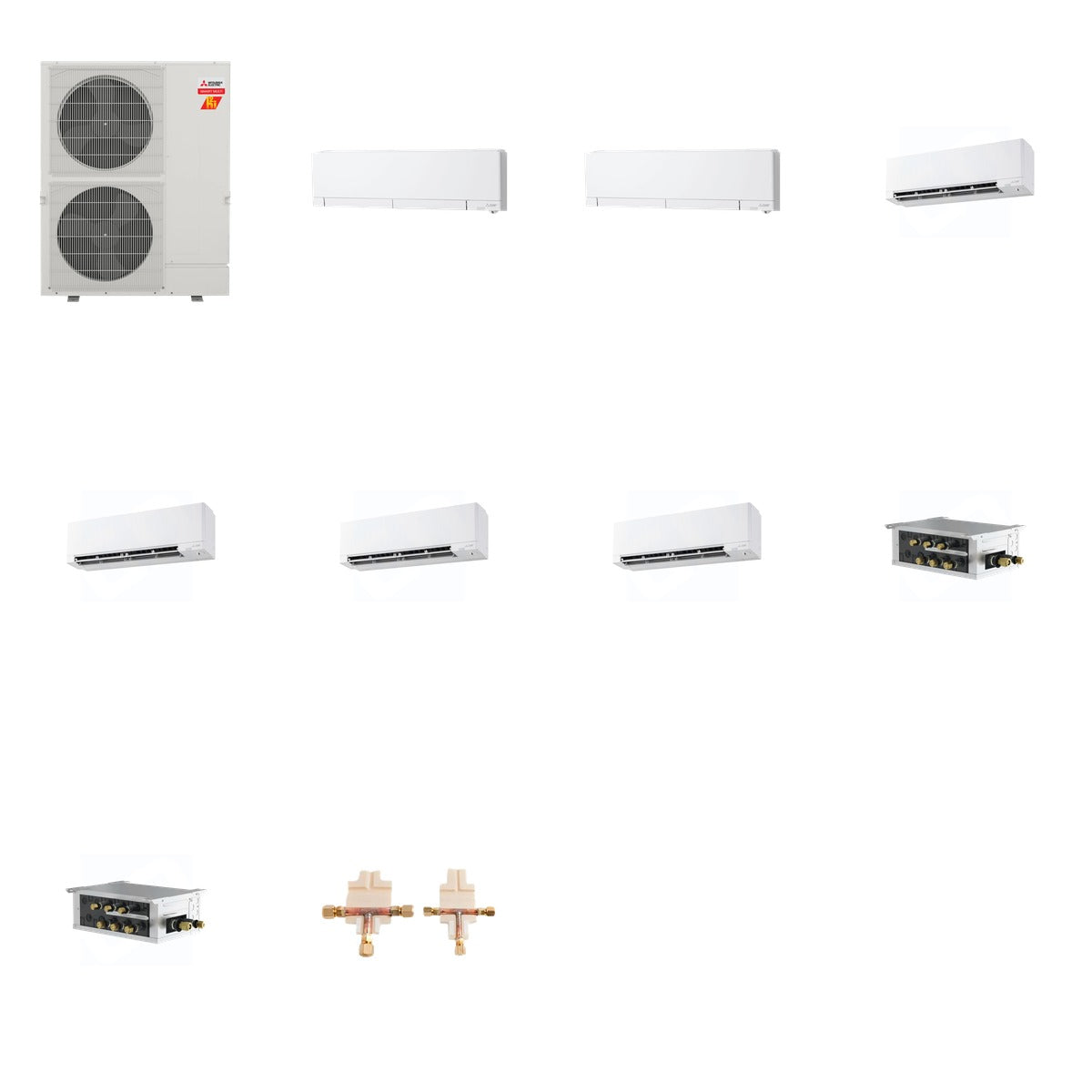

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX18NL - Mitsubishi Electric MSZ-FX18NL FX-Series Wall Mounted Unit 18k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 443.7 lb (Mitsubishi 225 lb + Mitsubishi 58 lb + Mitsubishi 109.2 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-ton inverter condenser
• MSZ-FX06NL: 6,000 BTU, SEER2 up to 35, 208/230V
• MSZ-FX09NL: 9,000 BTU, SEER2 up to 35, 208/230V
• MSZ-FX18NL: 18,000 BTU, SEER 25.5, 208/230V
• PAC-LMA50BC: 5 ports, 208/230V, connects up to 5 indoor units
• PAC-LMA30BC: 3 ports, 208/230V, connects up to 3 indoor units
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B

Use & Compatibility

This bundle is designed for use in multi-zone heating and cooling systems, making it ideal for both residential and commercial environments. The outdoor unit connects seamlessly with the included wall-mounted air handlers, while the branch boxes and distribution kit ensure efficient refrigerant flow and temperature control across multiple indoor units.
