Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+9K+9K+9K+15K

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial applications. Featuring the Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit, this package includes multiple wall-mounted indoor units (MSZ-FX06NL, MSZ-FX09NL, MSZ-FX15NL) that cater to various room sizes and configurations. The inclusion of branch boxes (PAC-LMA50BC and PAC-LMA30BC) ensures optimal refrigerant flow and power distribution, while the MSDD-50AR2-E branch pipe kit enhances installation efficiency. Together, these components create a versatile and powerful climate control system that meets modern energy efficiency standards.

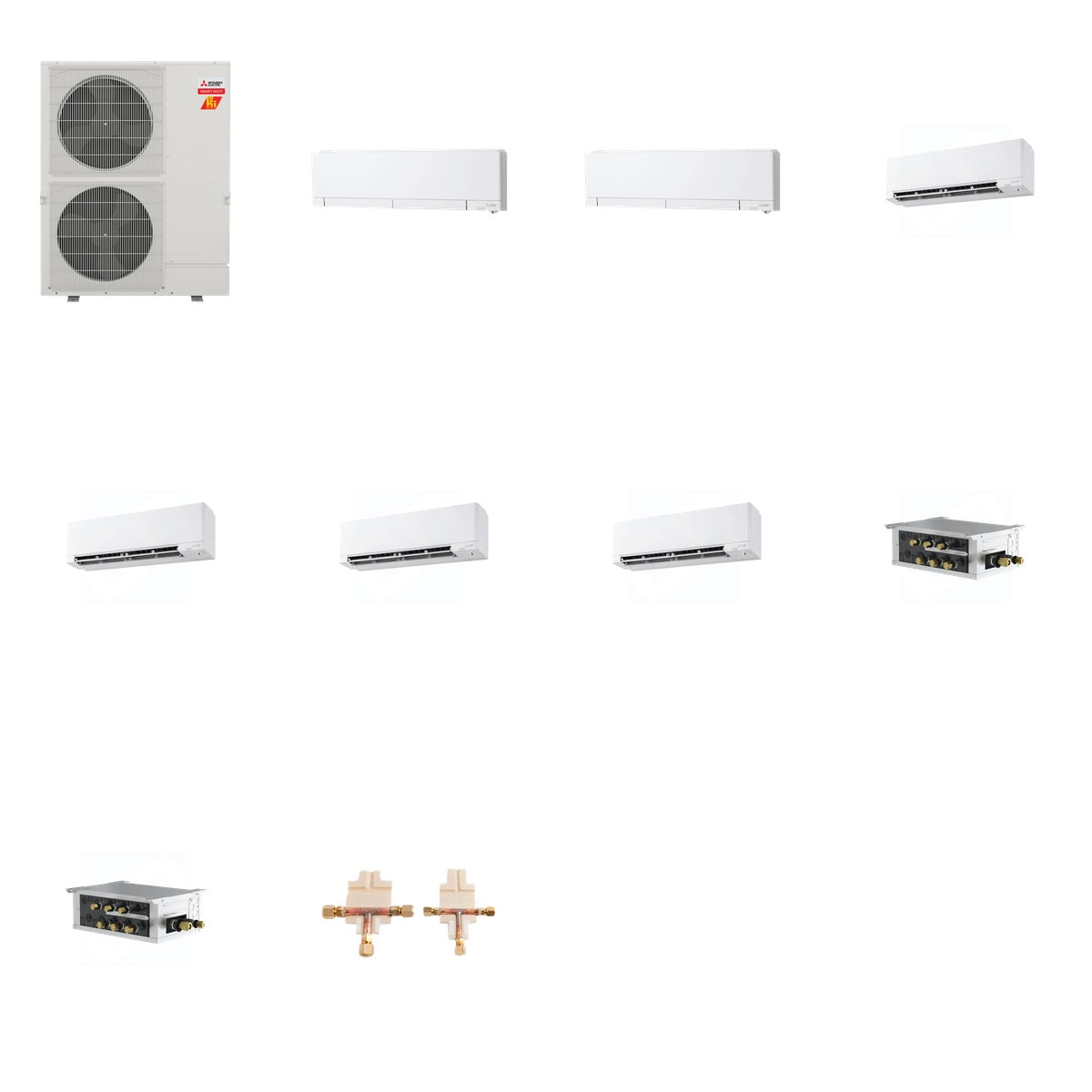

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - FX-Series Wall Mounted Unit 6k BTU (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX09NL - FX-Series Wall Mounted Unit 9k BTU (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX15NL - FX-Series Wall Mounted Unit 15k BTU (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)

Key Details

• Weight of Bundle: 443.7 lb (Mitsubishi 225 lb + Mitsubishi 58 lb + Mitsubishi 109.2 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Outdoor Unit Capacity: 60,000 BTU
• Indoor Units: 6,000 BTU (x2), 9,000 BTU (x3), 15,000 BTU (x1)
• SEER2 Ratings: Up to 35 (indoor units)
• Refrigerant Type: R-454B
• Voltage: 208/230 Volts
• Sound Levels: As low as 20 dB(A) for indoor units
• Dimensions (Outdoor Unit): 41-11/32" W x 13" D x 52-11/16" H
• Dimensions (Indoor Units): 39.27" W x 9.75" D x 12" H
• Branch Box Ports: 5 and 3

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling applications, compatible with various Mitsubishi Electric indoor units. It is designed for use in residential and commercial settings, ensuring efficient climate control across multiple rooms. The included branch boxes and distribution kit facilitate seamless integration and optimal performance of the HVAC system.
