Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+9K+9K+9K+12K

Description

This comprehensive bundle features essential components for a multi-zone HVAC system, ensuring efficient heating and cooling across various spaces. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, capable of connecting to multiple indoor units, including the MSZ-FX06NL, MSZ-FX09NL, and MSZ-FX12NL air handlers. Each air handler is equipped with advanced filtration, quiet operation, and smart control capabilities, making them perfect for residential and commercial applications. The included branch boxes, PAC-LMA50BC and PAC-LMA30BC, facilitate optimal refrigerant distribution, while the MSDD-50AR2-E branch pipe kit ensures seamless installation. Together, these products deliver a complete, high-performance solution for temperature control and comfort.

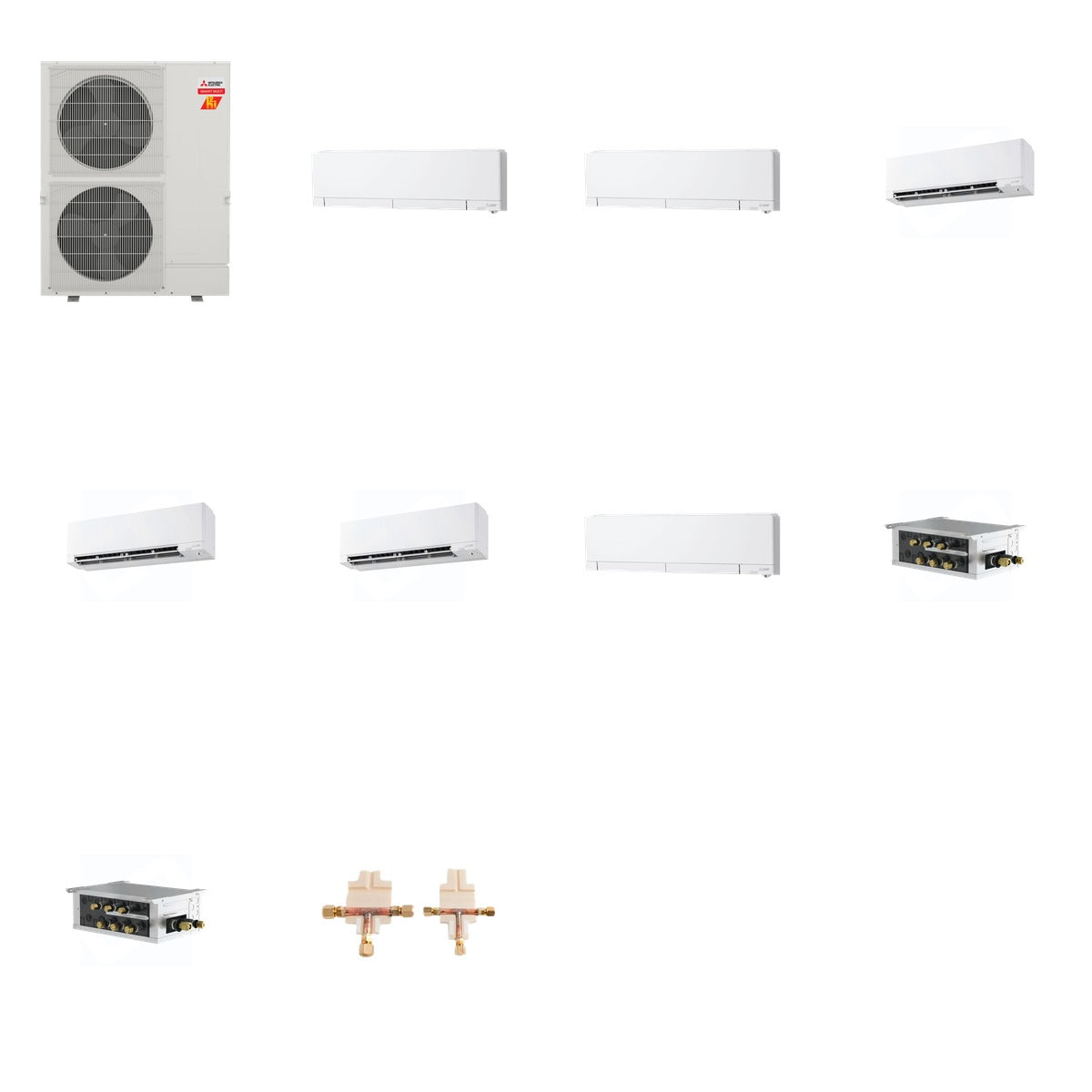

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX09NL - FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX12NL - FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 443.7 lb (Mitsubishi 225 lb + Mitsubishi 58 lb + Mitsubishi 109.2 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU, 5-Ton Inverter, SEER2 up to 23
• MSZ-FX06NL: 6,000 BTU, SEER2 up to 35, 208/230V
• MSZ-FX09NL: 9,000 BTU, SEER2 up to 35, 208/230V
• MSZ-FX12NL: 12,000 BTU, SEER2 up to 35, 208/230V
• PAC-LMA50BC: 5 Ports, 208/230V
• PAC-LMA30BC: 3 Ports, 208/230V
• MSDD-50AR2-E: Flare Connection, Oxygen-Free Copper

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing optimal heating and cooling for residential and commercial spaces. The outdoor unit connects seamlessly with the indoor air handlers, while the branch boxes and distribution kit ensure balanced refrigerant flow and efficient operation across all connected units.
