Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+9K+9K+18K+18K

Description

This comprehensive HVAC bundle includes everything you need to create an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor heat pump unit serves as the powerhouse, providing up to 60,000 BTU of cooling capacity. Paired with four wall-mounted air handlers (two MSZ-FX06NL, two MSZ-FX09NL, and two MSZ-FX18NL), this bundle ensures optimal comfort across various room sizes. The included PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe kit enhances installation efficiency. Together, these components deliver a reliable, energy-efficient solution for both residential and commercial environments.

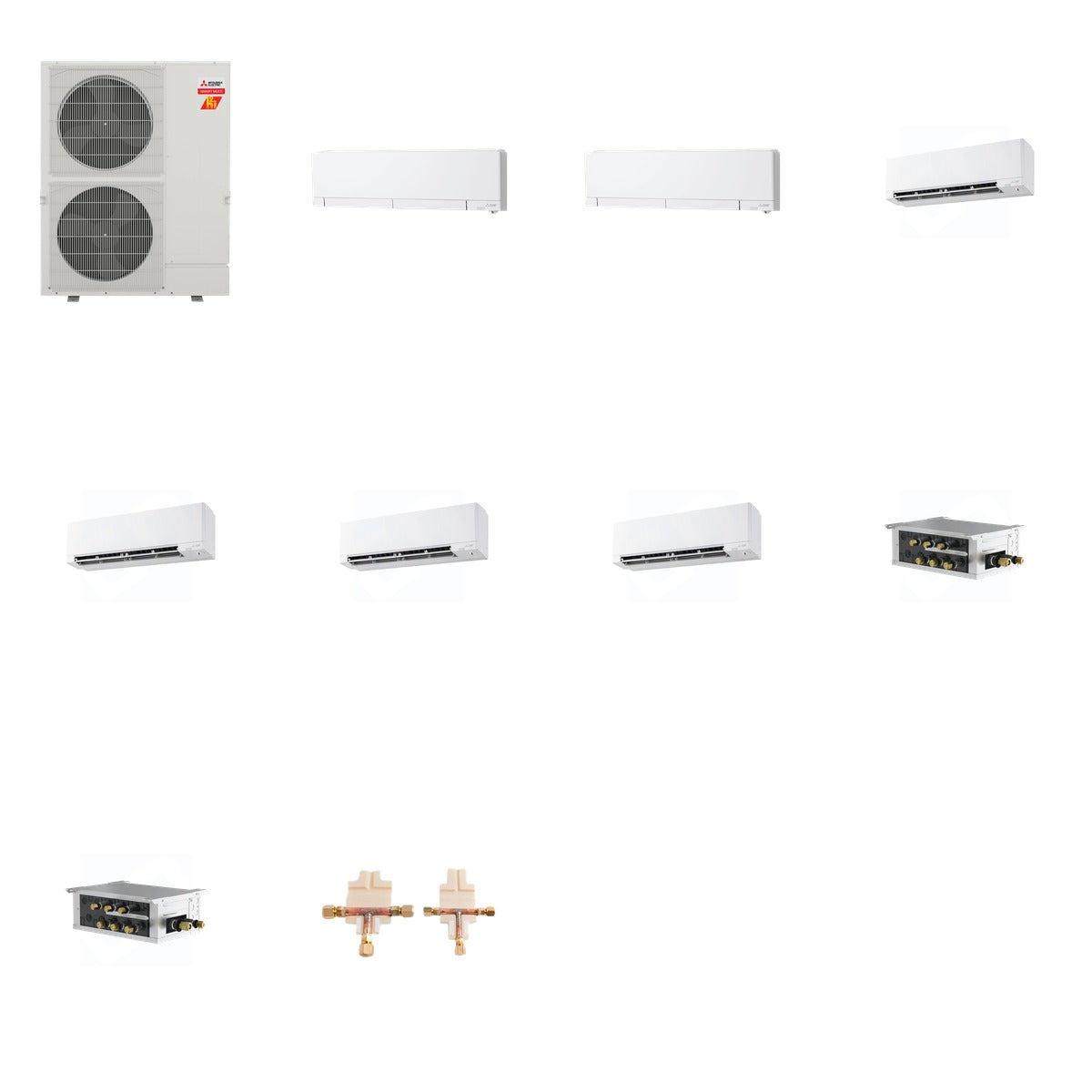

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX18NL - Mitsubishi Electric MSZ-FX18NL FX-Series Wall Mounted Unit 18k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 443.7 lb (Mitsubishi 225 lb + Mitsubishi 58 lb + Mitsubishi 72.8 lb + Mitsubishi 72.8 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU/h (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU/h (MXZ-SM60NL)
• Wall Mounted Units: 6,000 BTU (MSZ-FX06NL), 9,000 BTU (MSZ-FX09NL), 18,000 BTU (MSZ-FX18NL)
• SEER2 Rating: Up to 35 (MSZ-FX06NL)
• Voltage: 208/230 Volts
• Sound Level: As low as 20 dB(A)
• Refrigerant Type: R-454B
• Branch Box Ports: 5 (PAC-LMA50BC), 3 (PAC-LMA30BC)

Use & Compatibility

This bundle is designed for use in both residential and commercial HVAC systems. The MXZ-SM60NL outdoor unit connects seamlessly with the included wall-mounted air handlers, allowing for customized heating and cooling across multiple zones. The branch boxes and distribution kit ensure efficient refrigerant flow, making this bundle ideal for a variety of applications.
