Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+9K+9K+12K+18K

Description

This comprehensive Mitsubishi Electric HVAC bundle is designed to provide optimal heating and cooling solutions for both residential and commercial spaces. Featuring a powerful MXZ-SM60NL multi-zone heat pump outdoor unit, this bundle includes multiple wall-mounted air handlers (MSZ-FX06NL, MSZ-FX09NL, MSZ-FX12NL, and MSZ-FX18NL) that ensure efficient temperature control across various zones. The included branch boxes (PAC-LMA50BC and PAC-LMA30BC) facilitate seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe distribution kit enhances installation efficiency. Together, these components create a versatile and high-performance HVAC system that meets diverse climate control needs.

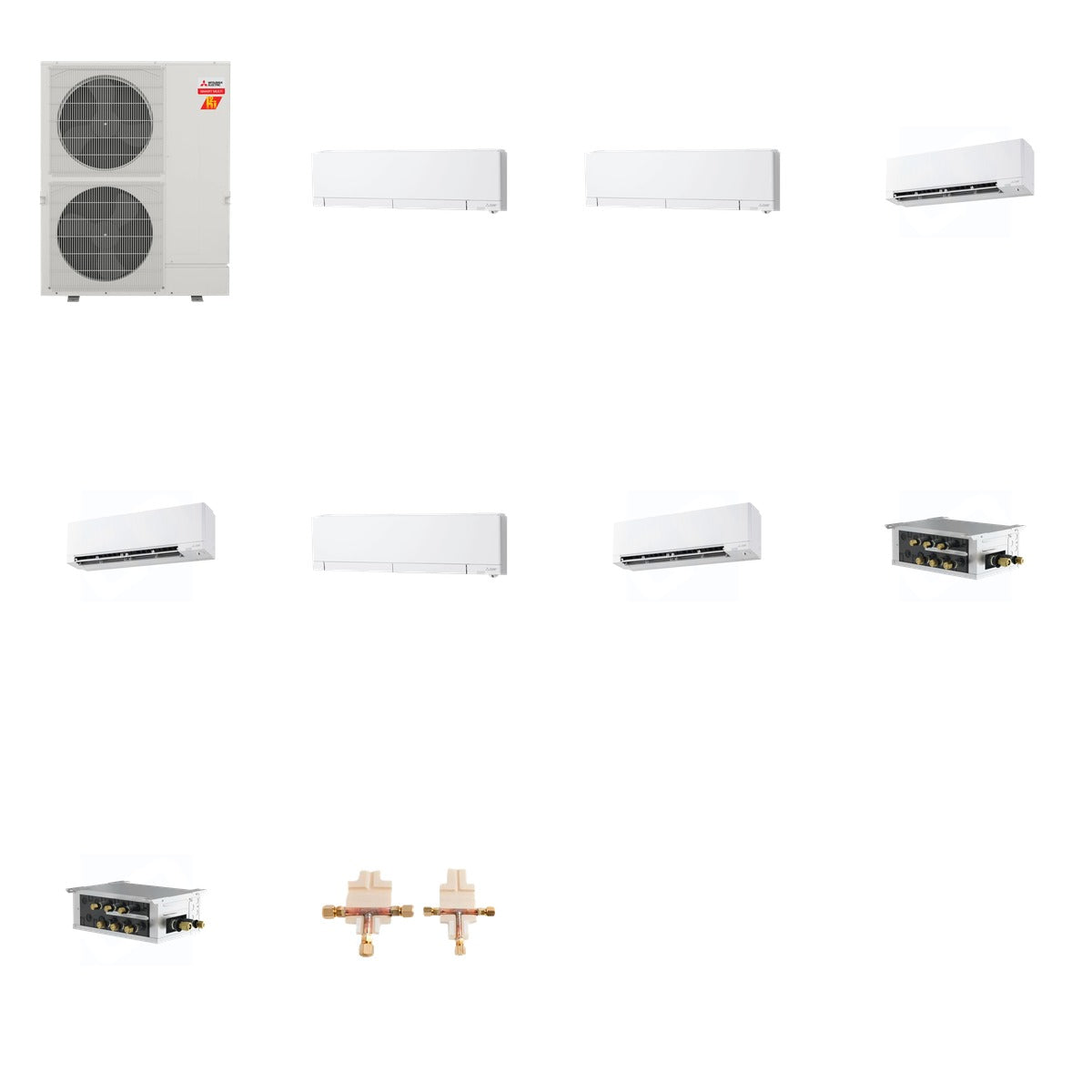

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX18NL - Wall Mounted Unit 18k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)

Key Details

• Weight of Bundle: 443.7 lb (Mitsubishi 225 lb + Mitsubishi 58 lb + Mitsubishi 72.8 lb + Mitsubishi 36.4 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU Cooling, 66,000 BTU Heating, SEER2 Up to 23
• MSZ-FX06NL: 6,000 BTU Cooling, 9,000 BTU Heating, SEER2 Up to 35
• MSZ-FX09NL: 9,000 BTU Cooling, 12,000 BTU Heating, SEER2 Up to 35
• MSZ-FX12NL: 12,000 BTU Cooling, 13,200 BTU Heating, SEER2 Up to 35
• MSZ-FX18NL: 18,000 BTU Cooling, 17,000 BTU Heating, SEER2 Up to 25.5
• PAC-LMA50BC: 5 Ports, 208/230V, 60Hz
• PAC-LMA30BC: 3 Ports, 208/230V, 60Hz
• MSDD-50AR2-E: Flare Connection, Compatible with R-410A/R-454B

Use & Compatibility

This bundle is ideal for multi-zone HVAC applications, providing efficient heating and cooling solutions for various indoor environments. The outdoor unit is compatible with multiple indoor units, allowing for customized climate control. The branch boxes and distribution kit ensure optimal refrigerant flow and system performance, making this bundle suitable for both residential and commercial installations.
