Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+9K+12K+15K+18K

Description

This comprehensive HVAC bundle features a selection of high-efficiency Mitsubishi Electric products designed to provide optimal heating and cooling for both residential and commercial spaces. The centerpiece is the MXZ-SM60NL multi-zone heat pump outdoor unit, capable of connecting to multiple indoor units for customized climate control. Paired with various wall-mounted air handlers, including the MSZ-FX06NL, MSZ-FX09NL, MSZ-FX12NL, MSZ-FX15NL, and MSZ-FX18NL, this bundle ensures efficient temperature management across different zones. Additionally, the PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe kit enhances installation efficiency. Together, these components create a versatile and powerful HVAC system that meets diverse heating and cooling needs.

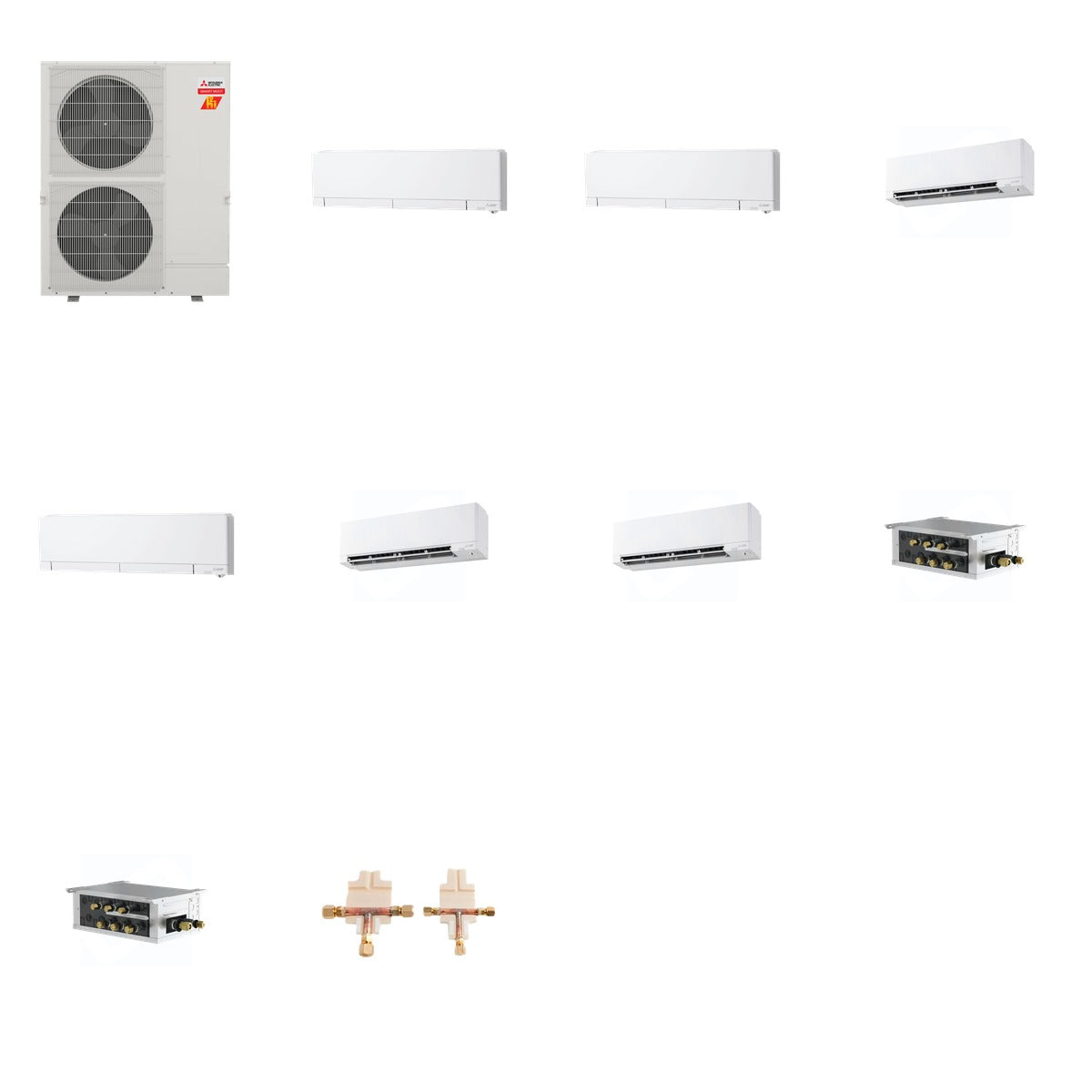

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX18NL - Mitsubishi Electric MSZ-FX18NL FX-Series Wall Mounted Unit 18k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 443.7 lb (Mitsubishi 225 lb + Mitsubishi 58 lb + Mitsubishi 36.4 lb + Mitsubishi 36.4 lb + Mitsubishi 36.4 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU Cooling, 66,000 BTU Heating, SEER2 up to 23, 5-Ton capacity
• MSZ-FX06NL: 6,000 BTU Cooling, 9,000 BTU Heating, SEER2 up to 35, 20-42 dB(A) noise level
• MSZ-FX09NL: 9,000 BTU Cooling, 12,000 BTU Heating, SEER2 up to 35, 20-44 dB(A) noise level
• MSZ-FX12NL: 12,000 BTU Cooling, 13,200 BTU Heating, SEER2 up to 35, 20-44 dB(A) noise level
• MSZ-FX15NL: 15,000 BTU Cooling, 18,000 BTU Heating, SEER2 up to 20, 26-49 dB(A) noise level
• MSZ-FX18NL: 18,000 BTU Cooling, 17,000 BTU Heating, SEER2 up to 25.5, 26-46 dB(A) noise level
• PAC-LMA50BC: 5-Port Branch Box, 208/230V, 60Hz
• PAC-LMA30BC: 3-Port Branch Box, 208/230V, 60Hz
• MSDD-50AR2-E: Flare Connection, Oxygen-Free Copper, R-410A/R-454B compatible

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, allowing for flexible heating and cooling solutions across various indoor spaces. The outdoor unit connects seamlessly with the included wall-mounted air handlers, making it suitable for both residential and commercial applications. The branch boxes and distribution kit ensure efficient refrigerant flow and temperature control, enhancing overall system performance.
